WRT-4+ Long Range Transmitter

Preview: WRT-4+ Long Range Transmitter Preview: WRT-4+ Long Range Transmitter
WRT-4+ Long Range Transmitter
WRT-4+ Long Range Transmitter

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54504-Z124-A100
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "WRT-4+ Long Range Transmitter"

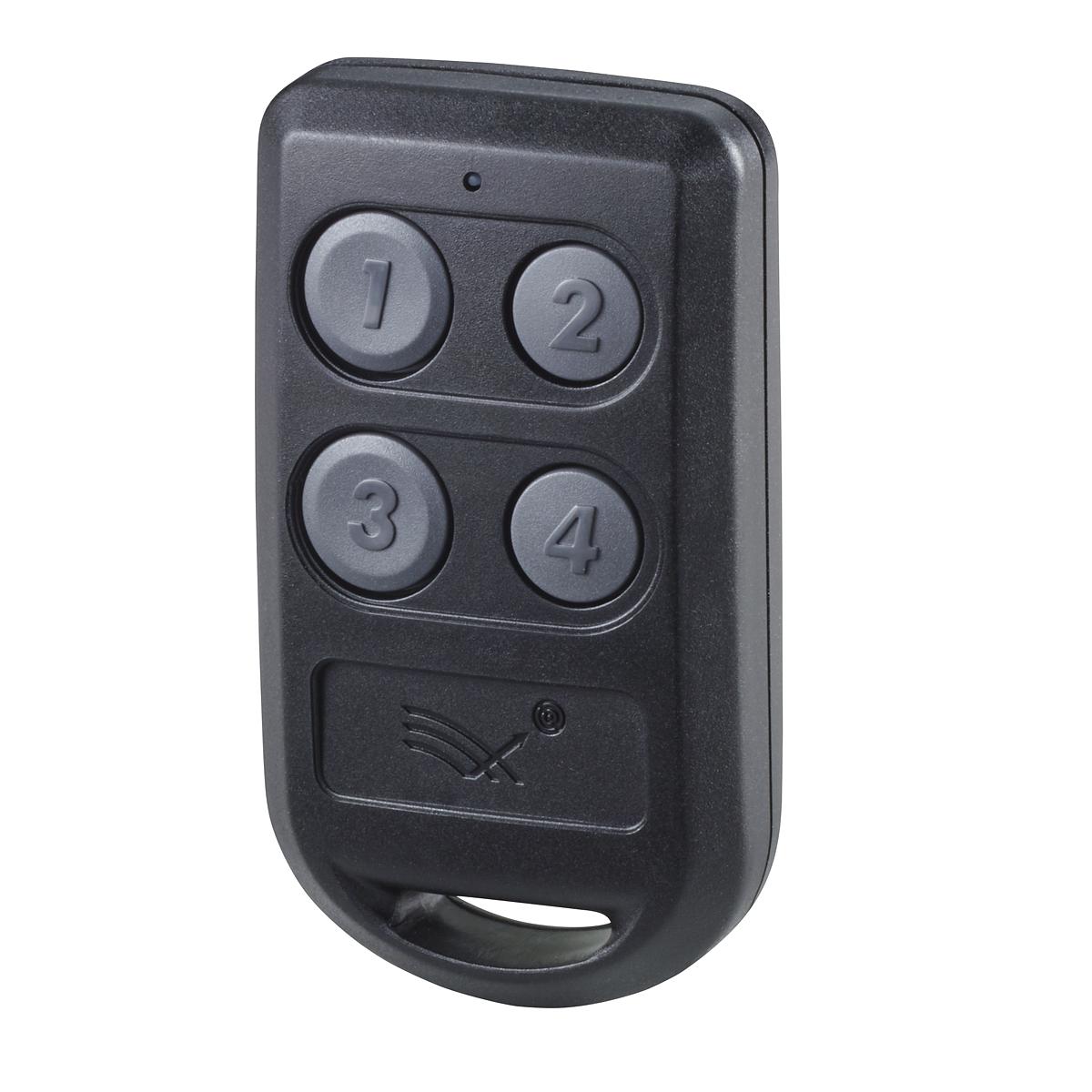

The WRT-4T is a 4 button Transmitter used with the WRR-44 long range reader. Based upon proven contactless digital ultra high frequency (UHF) technology, the Ranger Receivers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. Additionally, the WRT-4T Transmitters are active devices, powered by the most reliable and common battery, and equipped with a potted proximity or contactless smartcard module. The modules can be ordered to support several proximity reader technologies and allow the Transmitter to be used as a close-range credential.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.326
Purchase unit PCE
Minimum order 1
Country of origin US
Net weight 0.280
Material code N54504-Z124-A100
Statistical code 84716070
ECCN EAR99
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: –40° C to +50°C
Dimensions (L x W x H): 37mm x 64mm x 14mm
Weight: 0.03kg
Battery: Replaceable CR2032, 3.3V
Housing material: Polycarbonate w/ ABS Buttons
Operating temperature range: –40° C to +50°C
Interfaces: Wiegand (26-bit)
Interface: Wiegand (26-bit)
LED Indicators: yes
Housing protection: IP65
