GB-5700-6 Glassbreak detector,6m,lam

Preview: GB-5700-6 Glassbreak detector,6m,lam Preview: GB-5700-6 Glassbreak detector,6m,lam

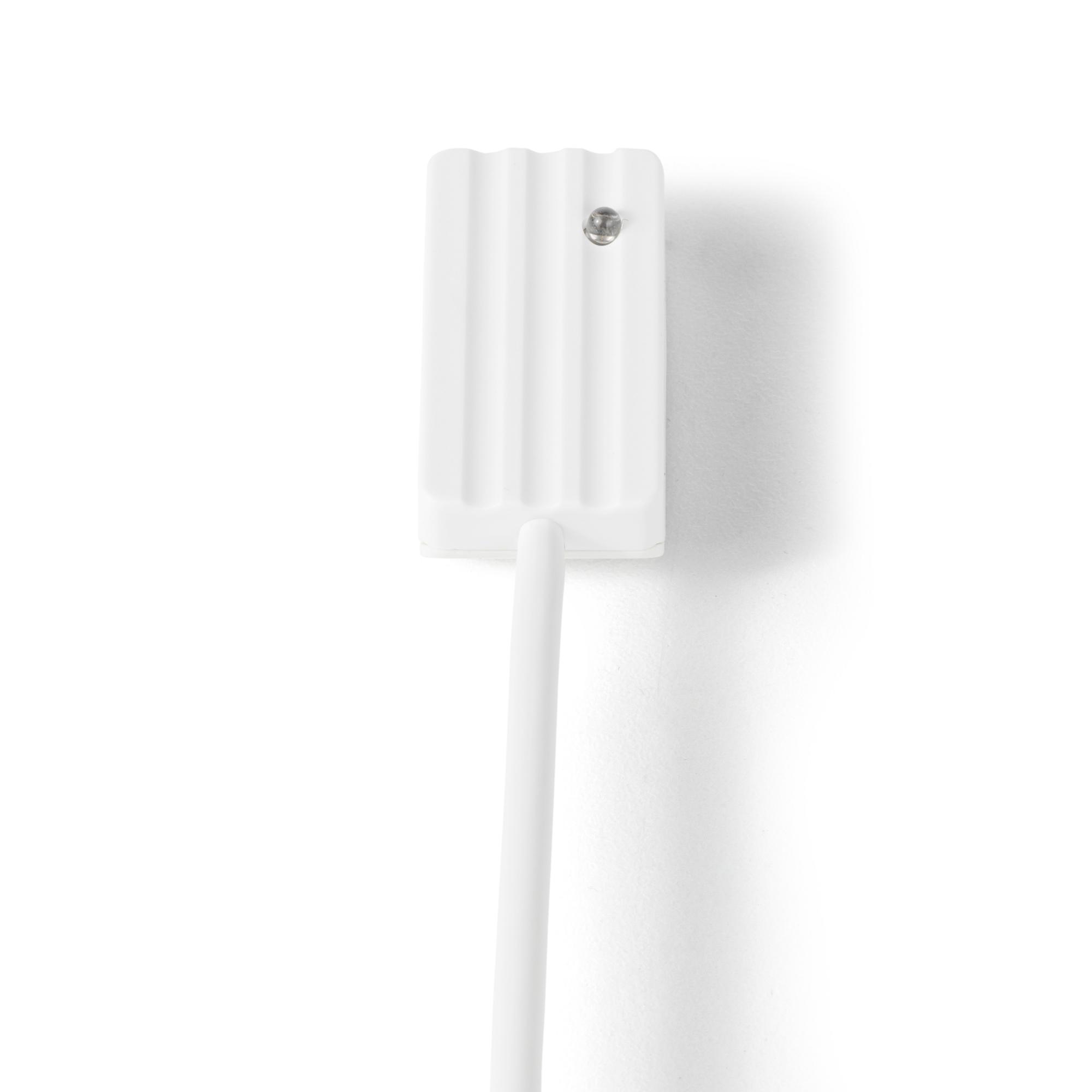

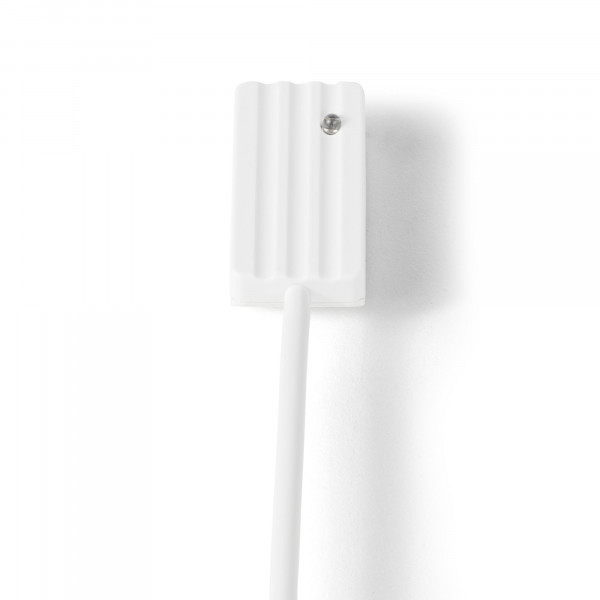

GB-5700-6 Glassbreak detector,6m,lam
GB-5700-6 Glassbreak detector,6m,lam

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54535-F103-A200
  • EAN/UPC-Code: 4025515478492
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "GB-5700-6 Glassbreak detector,6m,lam"
The glassbreak-detector is specially developed for working on laminated glass area within a radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). Attention: Glueset differs from the glue dedicated to GB-5100 and GB-5300 Because the glass-surface is not plane, a surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass, because the wire netting is damping the mechanical oscillations. The detectors can be used in combination with the interface unit, GB-5000-IN, in bigger installations where you have to consider power consumption. It is possible to connect up to 20 detectors to one interface unit. Secondary Packaging: 25 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.107
Purchase unit PCE
EAN/UPC-Code: 4025515478492
Minimum order 1
ECCN N
Material code V54535-F103-A200
Net weight 0.102
Statistical code 85311030
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Documentation
