GMXW0 - Wall/Ceiling recess box - GM7xx

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54534-H100-A100
Product information "GMXW0 - Wall/Ceiling recess box - GM7xx"

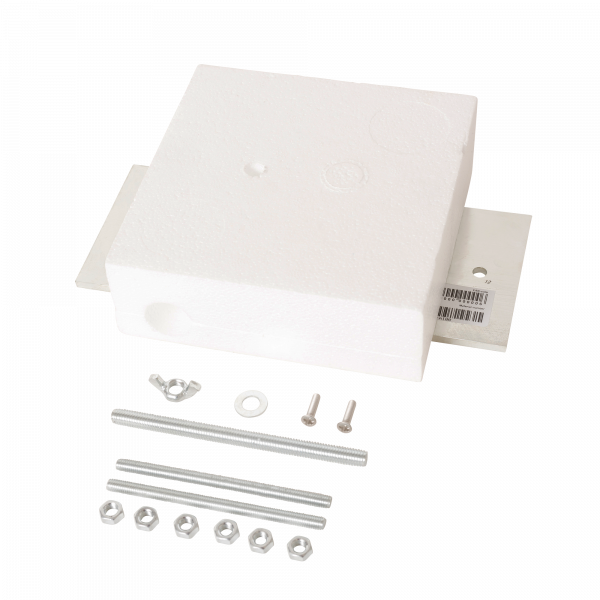

The GMXW0 is a mounting kit including a polystyrene mould that sits in the unset concrete. The polystyrene mould is mounted on a metal back plate with tapped mounting holes for the GM7xx seismic detectors. Once the concrete is set, the polystyrene can be carefully removed to expose a recess box. It offers sufficient space to install a GM7xx detector in the wall or the ceiling and provides access for cables via conduit to and from the detector.
Gross weight (KG) 1.158
Purchase unit PCE
Minimum order 1
Material code V54534-H100-A100
Net weight 1.100
Statistical code 85311030
Country of origin PL
