Article number: N54543-Z104-A100
EAN/UPC-Code: 4025515477808

Close menu

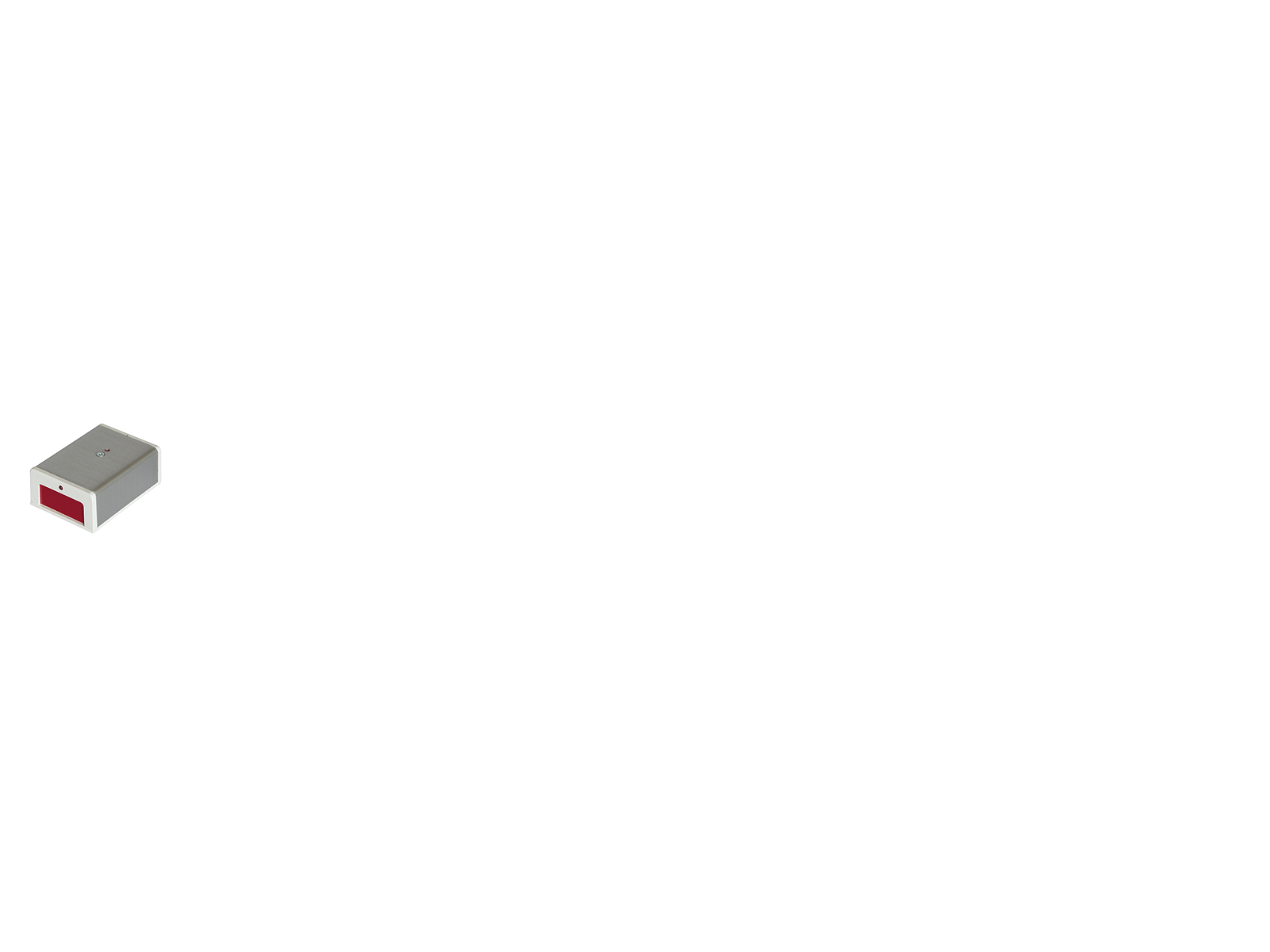

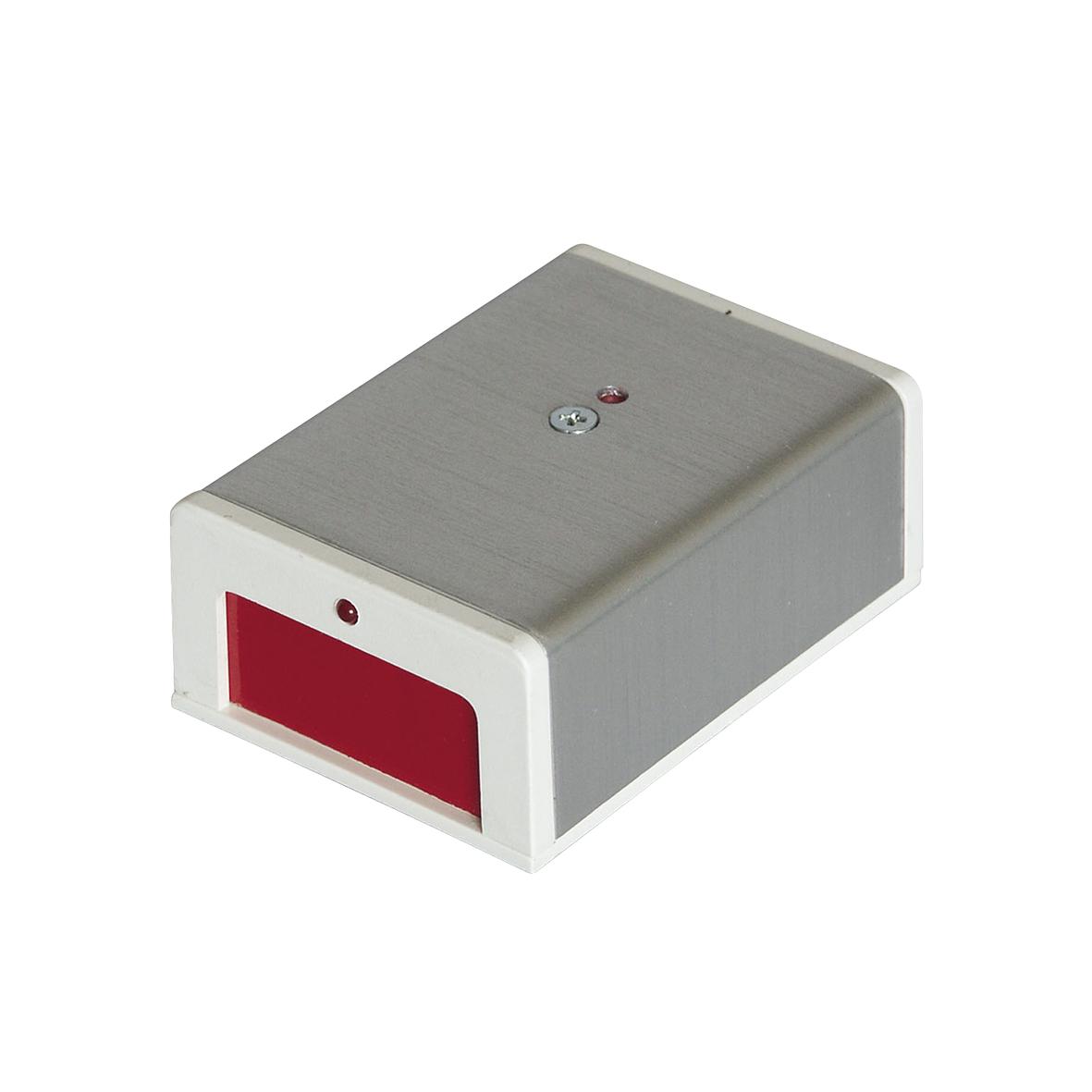

Product information "484 Panic button, optical indicator"

Reed button designed for the silent signaling of robberies in action. By pushing the button, a magnet gets close to the internal reed and opens the contact, thus triggering the alarm. Self-protection against opening through internal reed. Internal reeds are designed for NC operation. Simplified installation thanks to the two-sided tape included. LED memory with central reset (by cutting power supply), button with spring return, 6-terminal connection: 2 for contact, 2 for ant-tampering, 2 for power supply

Gross weight (KG)	0.073
Purchase unit	PCE
EAN/UPC-Code:	4025515477808
Minimum order	1
ECCN	N
Material code	N54543-Z104-A100
Statistical code	85319000
Net weight	0.069
Country of origin	IT

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Operating temperature:	+5 ~ +40° C
Housing protection:	IP32
Housing material:	Thermoplastic
Contact rating:	Max. 1 A / 75 V
Current consumption:	10 mA
Weight:	0.070 kg
Power supply:	12 VDC
Colour:	White
Dimensions (L x W x H):	72 x 52 x 28 (mm)
