PDM-I18T PIR AM detector

Esikatselu: PDM-I18T PIR AM detector Esikatselu: PDM-I18T PIR AM detector
PDM-I18T PIR AM detector
PDM-I18T PIR AM detector

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54530-F107-A100
  • EAN/UPC-Code: 4025515470397
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation Nützliche Links
Kuvaus
Sulje valikko

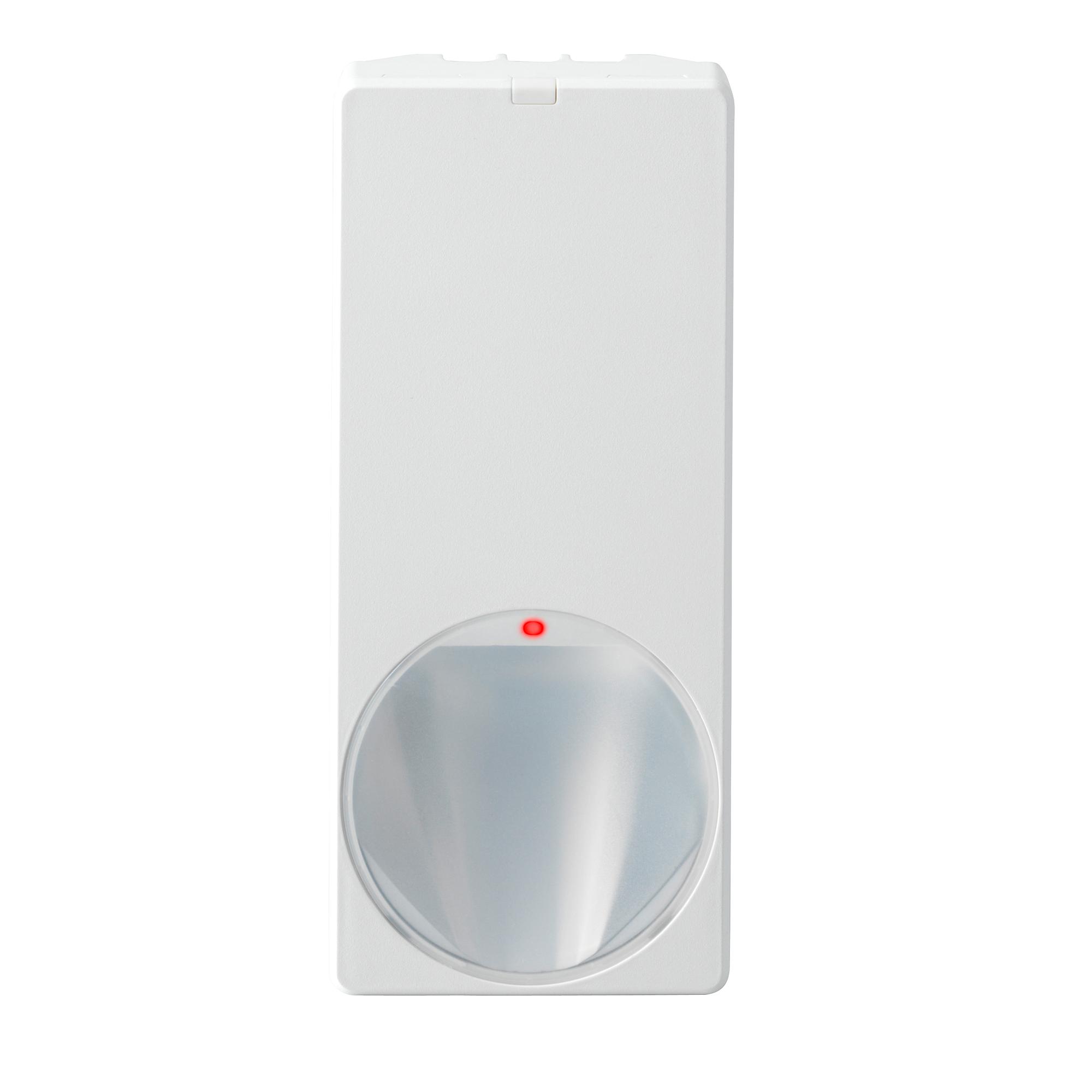

Tuotetiedot "PDM-I18T PIR AM detector"
MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 0.16
Osta yksikkö PCE
EAN/UPC-Code: 4025515470397
Mindestabnahme 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.095
Material code V54530-F107-A100
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Air humidity (EN 60721): < 85% RH, non-condensing
Supply voltage: 9 ... 16VDC (12V nom.)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Operating temperature: -10°C …+55°C
Pet immunity: no
Detection characteristics / range: Volumetric / 18m
Weight: 0.115kg
Approval: EN50131-2-2 Grade 3 VdS Class C
Current consumption: 3.9mA (rms) 6.6mA (max. peak)
Dimensions (W x H x D): 64 x 147 x 35 (mm)
Walking speed: 0.1 ~ 4m/s
Colour: RAL9003
Housing protection (EN 60529): IP41 / IK02
Sensitivity evaluation mode: 4 settings
Optical system: MAGIC mirror
Storage temperature: -20° ~ +60°C
