SPCE452.100 Expander.8 relays,backtamp.

SPCE452.100 Expander.8 relays,backtamp.
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54542-F107-A100
  • EAN/UPC-Kode: 4025515470861
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPCE452.100 Expander.8 relays,backtamp."

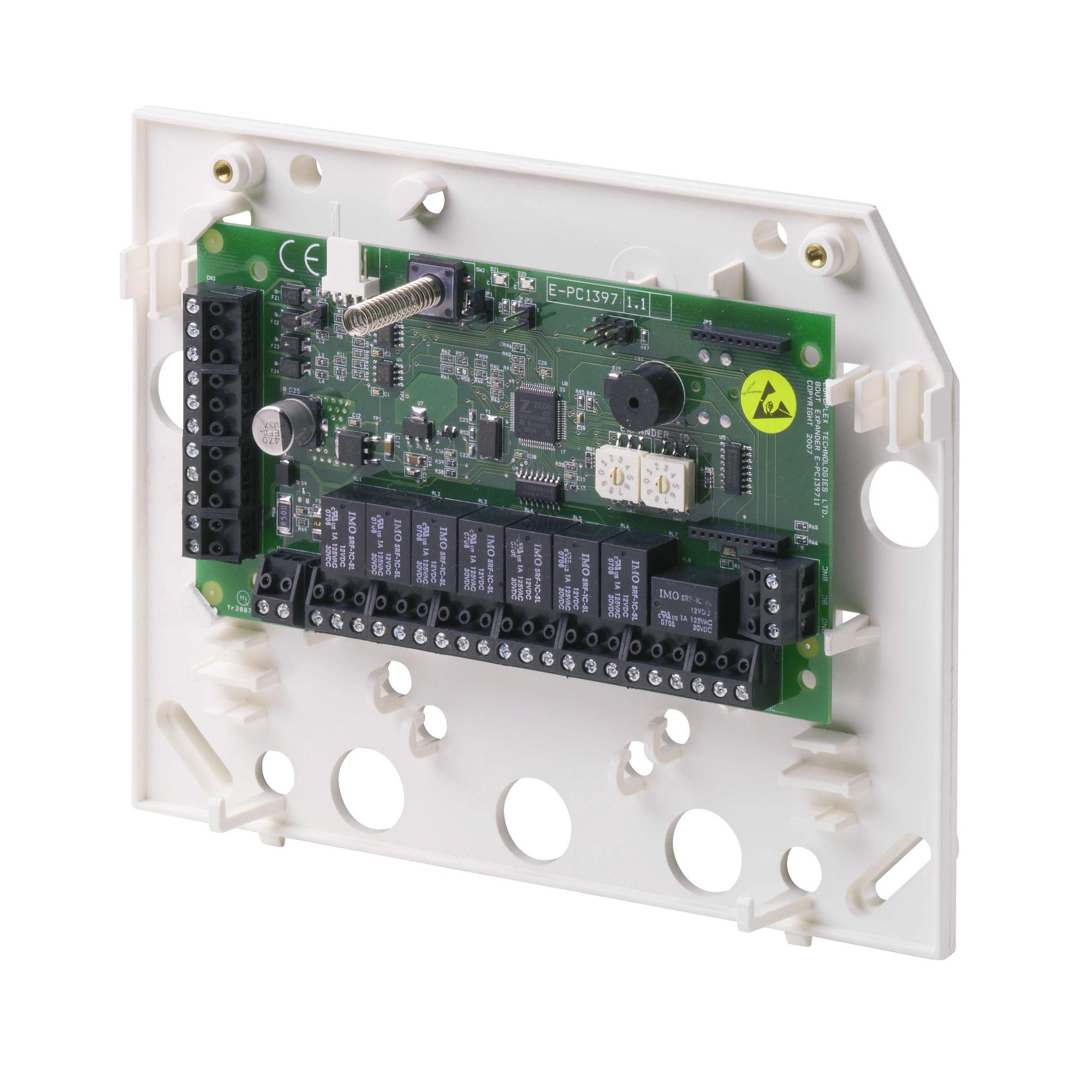

The SPCE452.100 expander extends the acre Intrusion system via X-BUS with 8 fully programmable relay outputs. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front and back tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.6
Købs Enhed PCE
EAN/UPC-Kode: 4025515470861
mindste bestilling 1
ECCN N
Materialekode V54542-F107-A100
Statistisk kode 85311030
Nettovægt 0.570
Oprindelsesland PH
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Quiescent current: Max. 40 mA at 12V DC
Operating current: Max. 190 mA at 12 VDC (all relays activated)
Number of on-board relays: 8 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Tamper contact: Front spring tamper, back tamper
Interfaces: X-BUS (in, out, branch)
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Weight: 0.400 kg
Dimensions (W x H x D): 200 x 153 x 47 (mm) (housing) 150 x 82 x 20 (mm) (PCB)
