SPCG310.000 E-Bus Gateway

Forhåndsvisning: SPCG310.000 E-Bus Gateway Forhåndsvisning: SPCG310.000 E-Bus Gateway

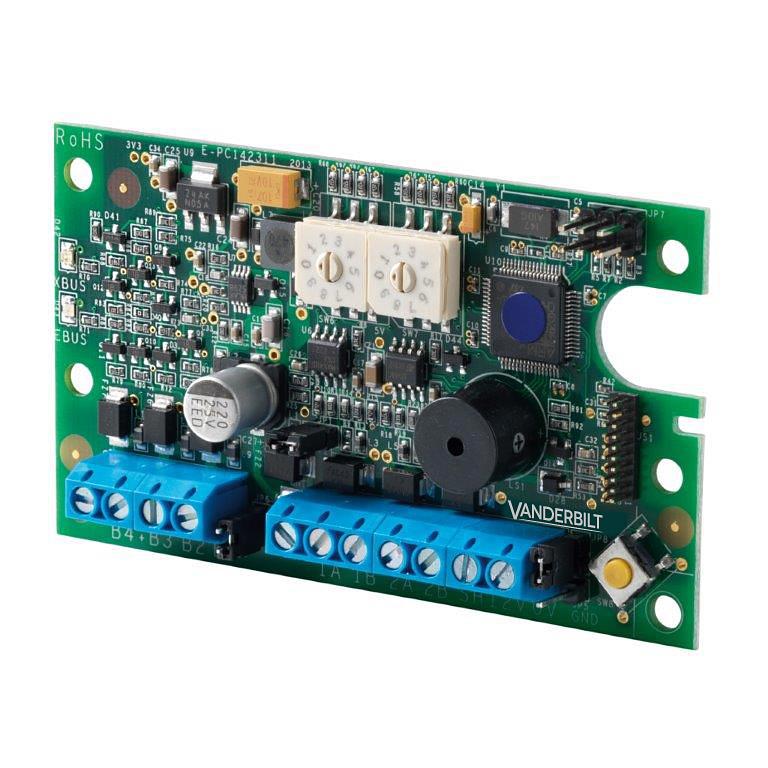

SPCG310.000 E-Bus Gateway
SPCG310.000 E-Bus Gateway

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54554-A101-A100
  • EAN/UPC-Kode: 4025515471134
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPCG310.000 E-Bus Gateway"
The SPCG310.000 E-BUS Gateway provides an interface between SPC X-BUS and Sintony E-BUS. The gateway enables the SPC controller to recognize Sintony peripheral devices by simulating the E-BUS devices so they appear to the SPC controller as X-BUS devices. The SPC controller supports up to five acre Intrusion E-Bus Gateways on its X-BUS. The maximum number of Sintony input zones supported by SPC is 252 and the maximum number of Sintony outputs is 174. The SPCG310.000 is supplied without housing. There are a number of housing options available. The acre Intrusion E-Bus Gateway can be mounted within the SPC controller housing, Sintony power supply units or in Sintony transponder housing.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.08
Købs Enhed PCE
EAN/UPC-Kode: 4025515471134
mindste bestilling 1
Statistisk kode 85311030
ECCN EAR99
Materialekode V54554-A101-A100
Nettovægt 0.076
Oprindelsesland PH
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Tamper contact: Tamper switch
Air humidity (EN 60721): Max. 90%rh, non-condensing
Dimensions (L x W x H): 52 x 92 x 13 (mm)
Tamper switch: Yes
Max. number of hardwired zones: 252 (Sintony Inputs)
Compatibility: - SAT12/SMT12 - SMT22 - SAT24/SMT24 - SMT44 - SAK41 - SAK51 - SAK53 - SAP08 - SAP14 - SAP20 - SAP25
Relative humidity: Max. 90% (non-condensing)
Weight: 0.020 kg
Operating temperature: -10 to +50 °C
Mounting: - SPC controller housing - Sintony transponder housing - Sintony PSU housing
Quiescent current: 40 mA
Operating current: 40 mA
Operating voltage: 9.5 - 14 V DC
Interfaces: X-BUS (In / Out) E-Bus
Approval: VdS Class C, SES, VSÖ (pending)
