Ready to ship
Delivery time appr. 1-3 workdays
- Article number: V54543-F111-A100
- EAN/UPC-Code: 4025515470977

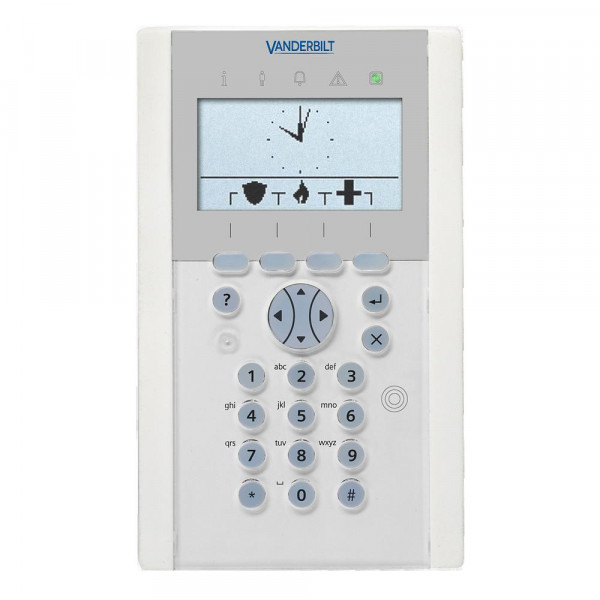

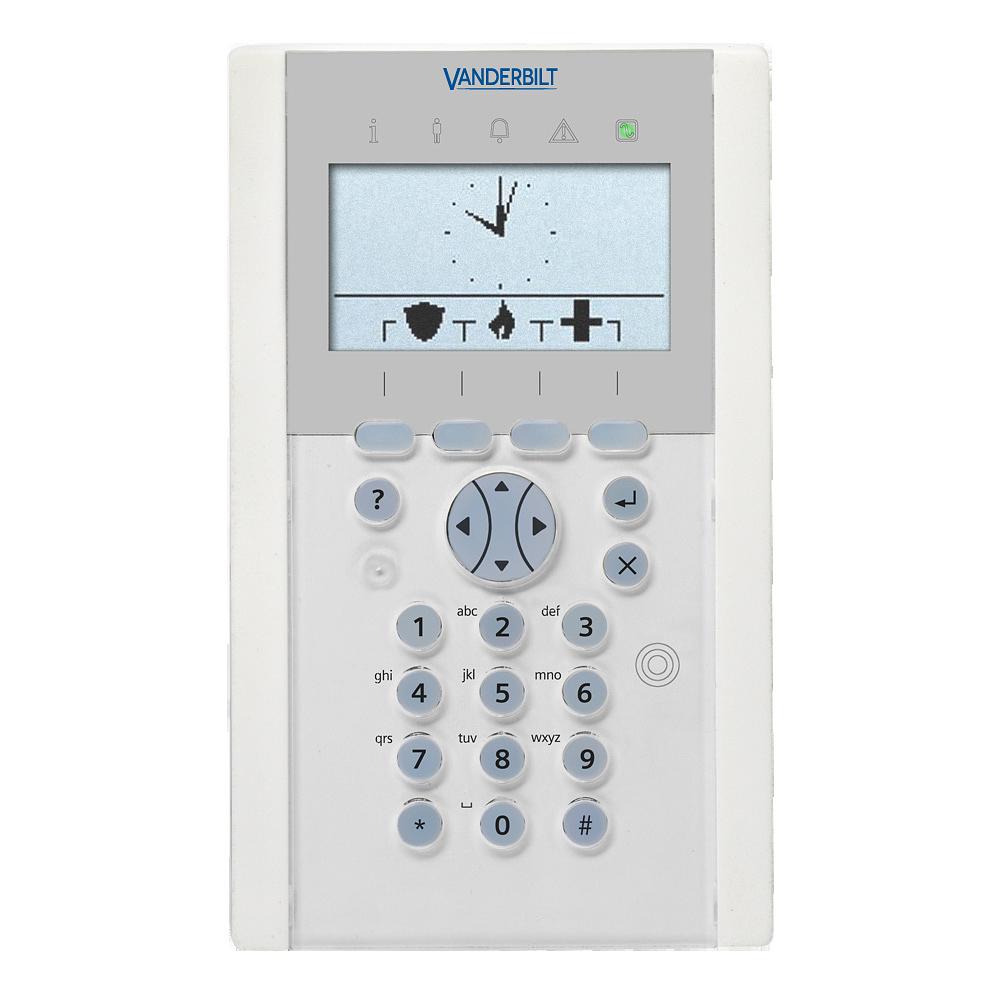

Product information "SPCK623.100 Comfort Keypad w. Audio/CR"
The SPCK623.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The integrated card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN. The built in speaker and sensitive microphone support audio features such as alarm verification or voice annunciation. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.
|Interfaces:||X-BUS (in, out)|
|Operating temperature:||5 ~ +40 °C|
|Quiescent current:||Max. 110 mA at 12 VDC|
|Operating current:||Max. 230 mA at 12 VDC (backlight, LEDs, audio, reader operated)|
|Audio:||Supported via integrated speaker and microphone|
|Approval:||EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C|
|Housing:||Plastic housing (Polycarbonate)|
|LED Indicators:||5 status LEDs|
|LCD Display:||128 x 64 pixels (approx. 6 x 20 characters)|
|Tamper contact:||Front / back tamper|
|Colour:||RAL 9003 (signal white)|
|Mounting:||Flat surface, wall-mounted|
|Operating voltage:||9.5 ~ 14 VDC|
|Dimensions (W x H x D):||112 x 185 x 28 mm|
- Datasheet (German) - spck620
- Datasheet (English) - spck620
- Datasheet (Swedish) - spck620
- Datasheet (Spanish) - spck620
- Datasheet (French) - spck620
- Installation instructions (Multilingual) - spck6xx
- User manual (German) - spck6xx
- User manual (English) - spck6xx
- User manual (Spanish) - spck6xx
- User manual (French) - spck6xx
- User manual (Italian) - spck6xx
- User manual (Dutch) - spck6xx
- User manual (Swedish) - spck6xx
