MK-2400-10 Magn. Cont.,10m,G2

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54536-F102-A300
  • 4025515478553
Product information "MK-2400-10 Magn. Cont.,10m,G2"

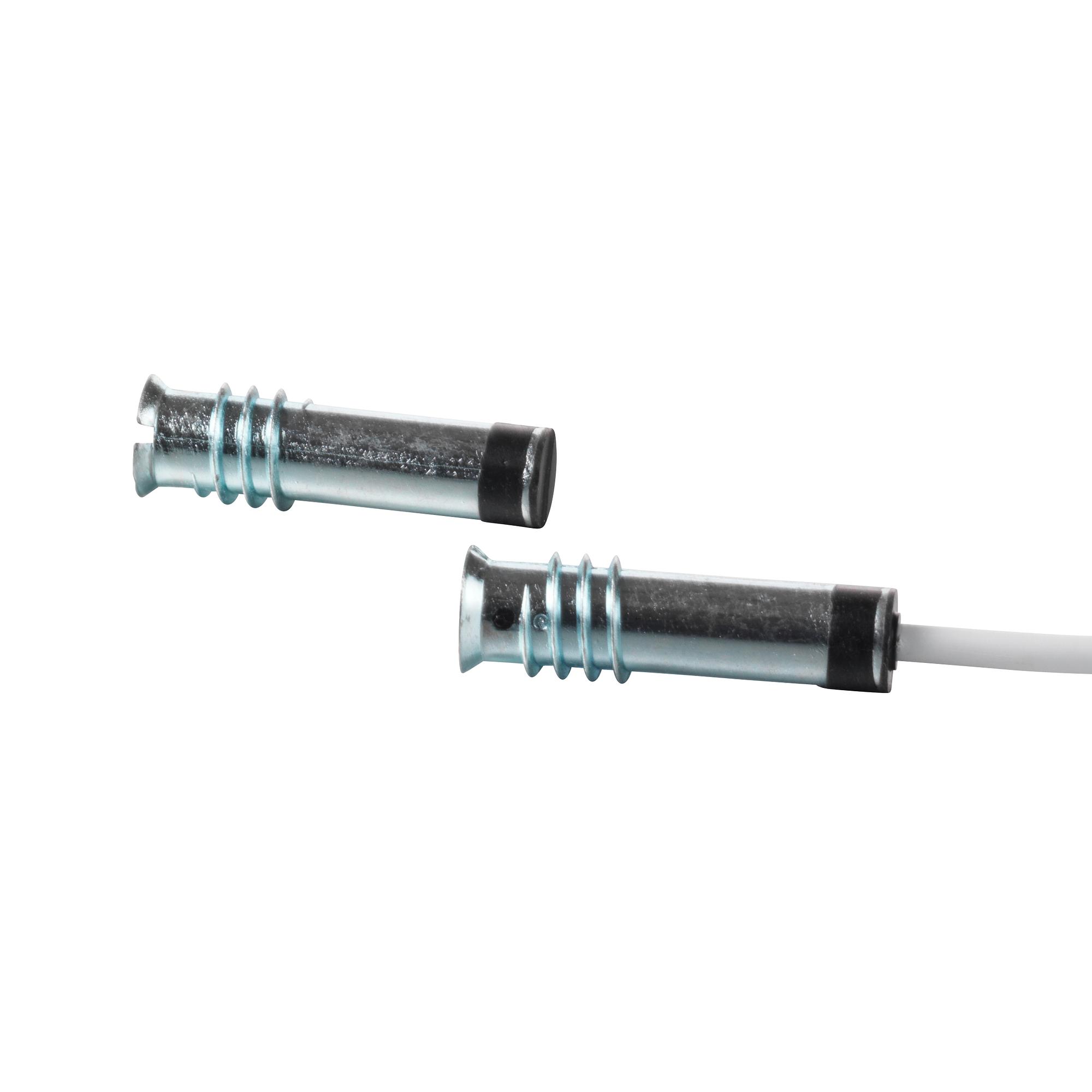

The MK-2000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted in window and door frames of non-magnetic materials. Secondary Packaging: 15 Units
Gross weight (KG) 0.185
Purchase unit PCE
EAN/UPC-Code: 4025515478553
Minimum order 1
ECCN N
Net weight 0.176
Material code V54536-F102-A300
Statistical code 85311030
Country of origin DE
Operating temperature: -40~+70 °C
Cable length: 10 m
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC Larmklass 1/2
Contact rating: Max. 10 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Operation temperature: -40~+70 °C
