EMK48LSA-W4M Magn.cont.rec.mt.,white,4m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • VDE6:9906440013
  • 4025515476726
Product information "EMK48LSA-W4M Magn.cont.rec.mt.,white,4m"

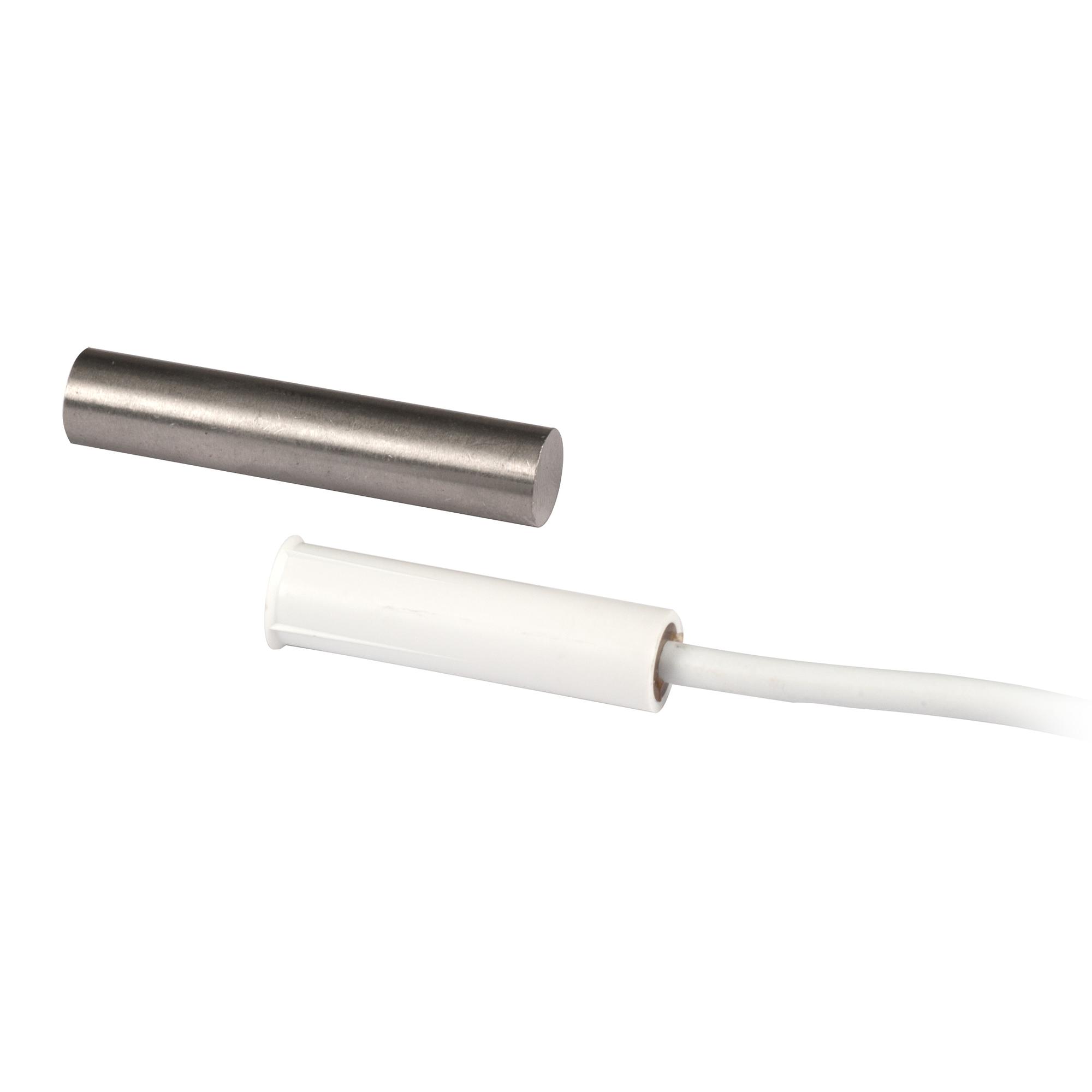

Recess mount magnetic contact suitable for doors and windows surveillance. High fuctional reliability through an integrained carrier board for the reed contact. For surface mounting the EMK-AT can be used.
Gross weight (KG) 0.085
Purchase unit PCE
EAN/UPC-Code: 4025515476726
Minimum order 1
Net weight 0.085
Material code VDE6:9906440013
Country of origin DE
Statistical code 85365080
Housing protection: IP67
Approval: VdS geprüft, Klasse B, Nr.: G 191564
Contact resistance: 0.15 Ω
Cable length: 4 m
Supply voltage: max. 40 VDC
Housing material: SB, ABS
Colour: White
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
