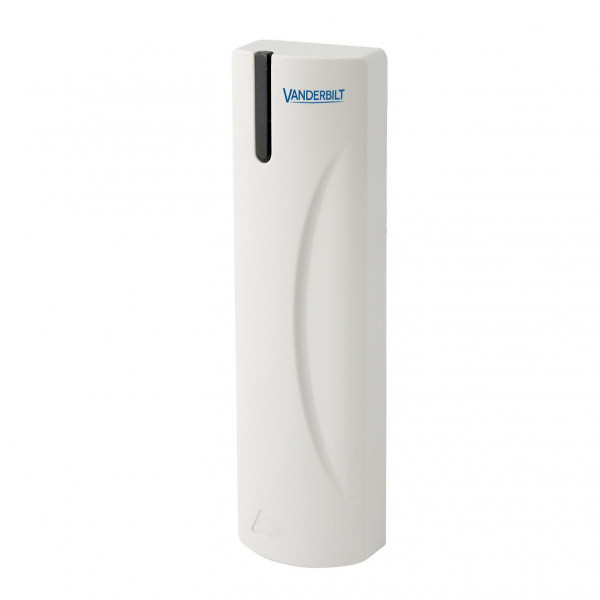

Product information "PR500-Cotag COTAG Mullion Reader"
The PR500-Cotag reads Vanderbilt unique Cotag cards and tags (both active and passive) which offer ultimate convenience and cost-efficiency. It has a reading range of up to 32 cm with an active card and 11 cm with a passive card. The PR500-Cotag has a slim and compact design and blends in well in many environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
|Interface to controller:||BC-Link, Clock&Data or Wiegand* (*req.config card)|
|Indicators:||3 x LED (red/yellow/green) 1 x Buzzer|
|Operating voltage:||10.6 to 32 VDC|
|Operating temperature:||-30 to +50 °C|
|Environment:||Indoor or outdoor use|
|Operation temperature:||-30°C to +50°C|
|Housing protection (EN 60529):||IP55|
|Housing material:||ABS base with clip on ABS front cover|
|Housing:||ABS base with clip on ABS front cover|
|Card read distance:||Up to 32 cm with active card. Up to 10 cm with passive card.|
|Current consumption:||36 mA @ 12 VDC 36 mA @ 24 VDC|
|Card compatibility:||IB911‚ IB928‚ IB958‚ IB958M‚ IB981 & IB968|
|Dimensions (W x H x D):||40 x 140 x 18.5 mm|
