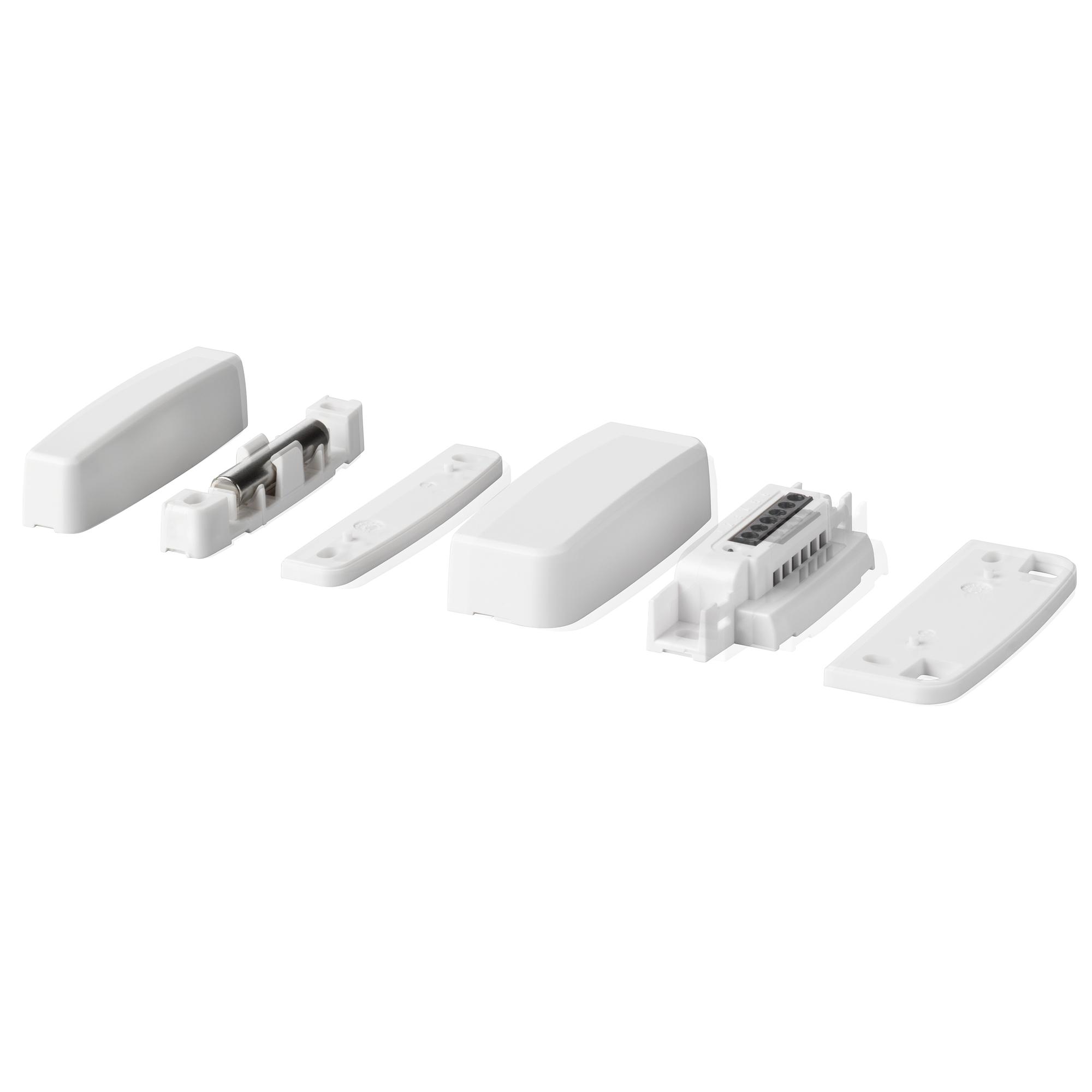

MK-4460 Magn. Cont.,G2,SPDT

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54536-F115-A100
  • 4025515478867
Produktinformasjon "MK-4460 Magn. Cont.,G2,SPDT"
The MK-4000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted on window and door frames of non-magnetic materials. Secondary Packaging: 50 Units
Bruttovekt (KG) 0.035
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515478867
Mindestabnahme 1
ECCN N
Netto vekt 0.033
Materialkode V54536-F115-A100
Statistisk kode 85311030
Opprinnelsesland DE
Switching voltage: Max. 30 VDC
Approval: EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Tamper contact: Single-pole NC contact
Colour: White
Tamper switch: NC
Environmental class: II
Housing protection: IP43
Operating temperature: -40 ~ +70 °C
Switching current: Max. 200 mA
Contact rating: 3 W
