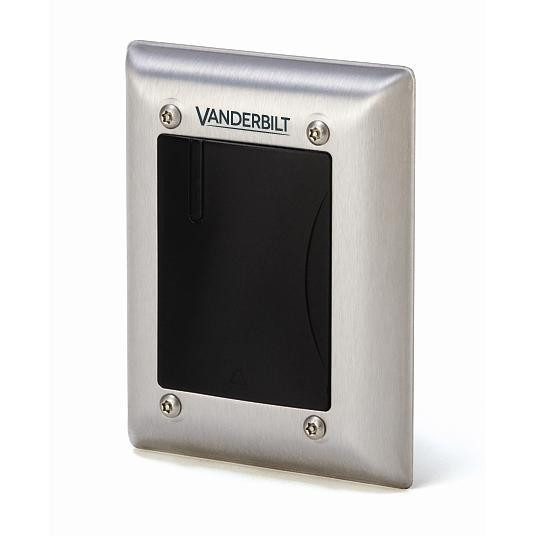

HD500-Cotag COTAG Reader Heavy Duty

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V24246-F4703-A1
  • 4025515473572
Produktinformasjon "HD500-Cotag COTAG Reader Heavy Duty"
The HD500-Cotag reads Vanderbilt unique Cotag cards and tags (both active and passive) which offer ultimate convenience and cost-efficiency. It has a reading range of up to 26 cm with an active card and up to 8 cm with a passive card. Vandal-proof and fire-resistant, the HD500-Cotag is popular both in vulnerable locations and modern office environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Bruttovekt (KG) 0.335
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515473572
Mindestabnahme 1
Opprinnelsesland PH
Statistisk kode 84716070
Netto vekt 0.318
Materialkode V24246-F4703-A1
Operating temperature: -30 bis +50 °C
Tamper protection: No
Housing material: Polycarbonate case, fully encapsulated electronics, stainless steel outer frame
Housing protection (EN 60529): IP65
Housing protection: IP65
Environment: Indoor & outdoor
Tamper switch: nein
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req. config card)
Operating voltage: 10.6 to 32 VDC
Card compatibility: IB911, IB928, IB958M, IB981 & IB968
Card read distance: Up to 26 cm with active card. Up to 8 cm with passive card
Current consumption: 37 mA @ 12 VDC 39 mA @ 24 VDC
Weight: 0.24kg
Housing: Aus Polykarbonatkunststoff mit vergossener Elektronik, Rahmen aus rostfreiem Stahl
Operation temperature: -30°C ~ +50°C
Colour: Black and stainless steel
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Card technology: Cotag
Dimensions (W x H x D): 100 x 128 x 18 (mm)
