E500 LON REPEATER

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54506-F121-A100
  • 7330082005567
Produktinformasjon "E500 LON REPEATER"

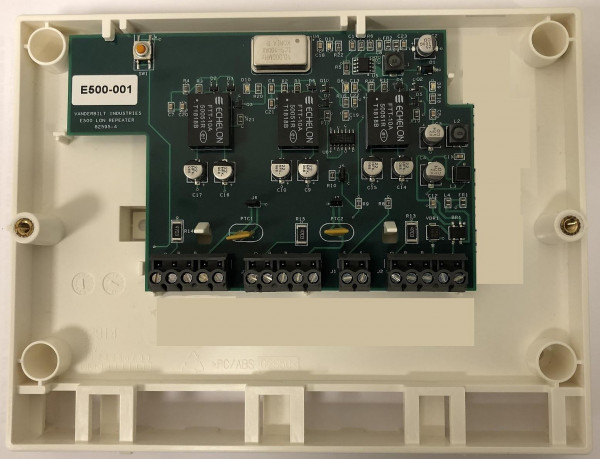

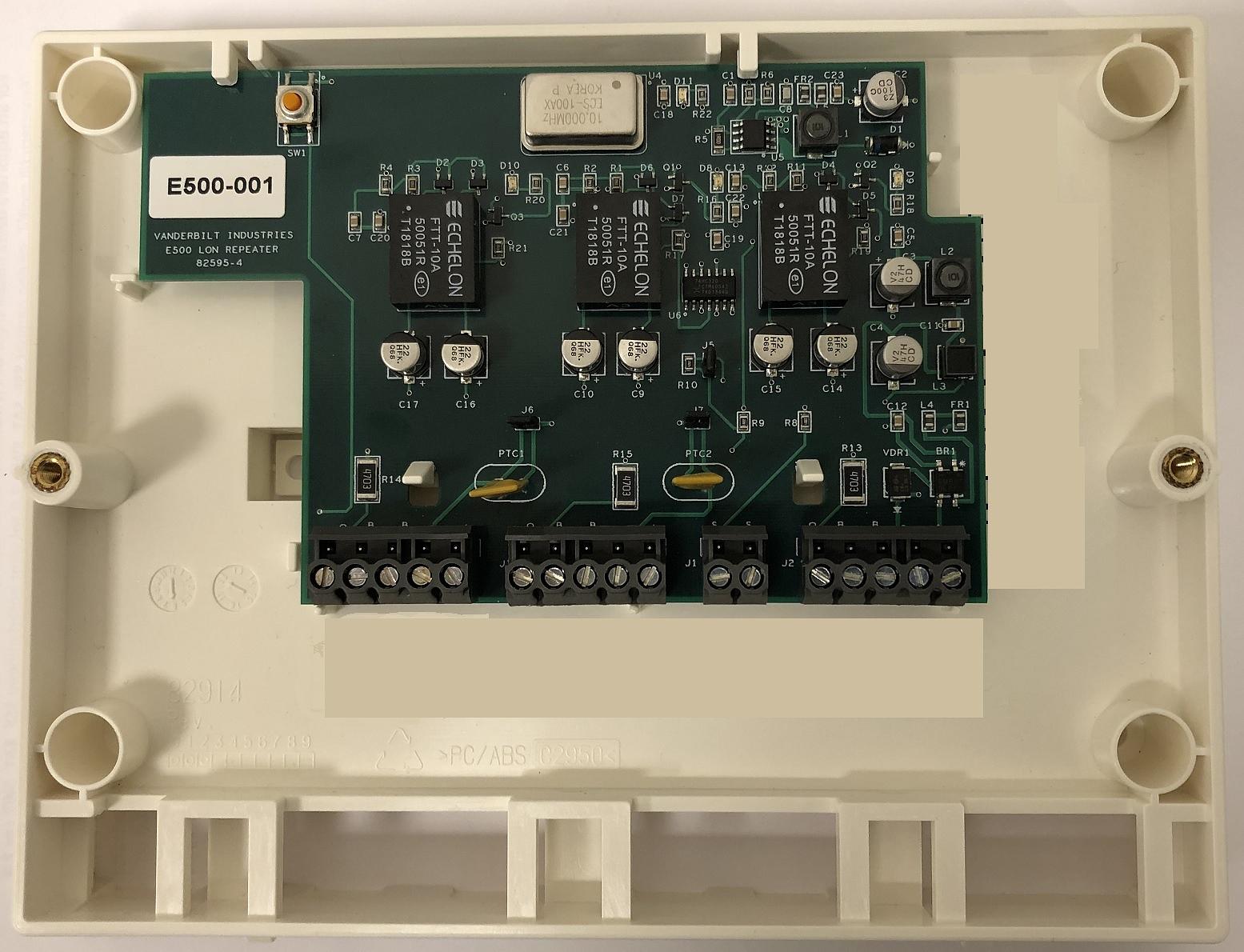

E500 is a LON repeater and allows communication over longer cable distances and galvanic isolation between network segments. With the E500 the communication bus can be divided from a single network segment into two new ones.
Bruttovekt (KG) 0.74
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082005567
Mindestabnahme 1
Statistisk kode 84719000
ECCN 5A992
Materialkode V54506-F121-A100
Netto vekt 0.703
Opprinnelsesland PH
Operating temperature: +5 ~ +55 ºC
Dimensions (W x H x D): 201 x 156 x 53 (mm)
Indicators: 3 indicators on PCB; TD & RD & Power Supply
Current consumption, quiescent: 12 mA, 24V DC
Weight: 0.6 kg
Communication protocol: Echelon LonTalk
Environmental class: II
Power supply: 20 ~ 29V DC
