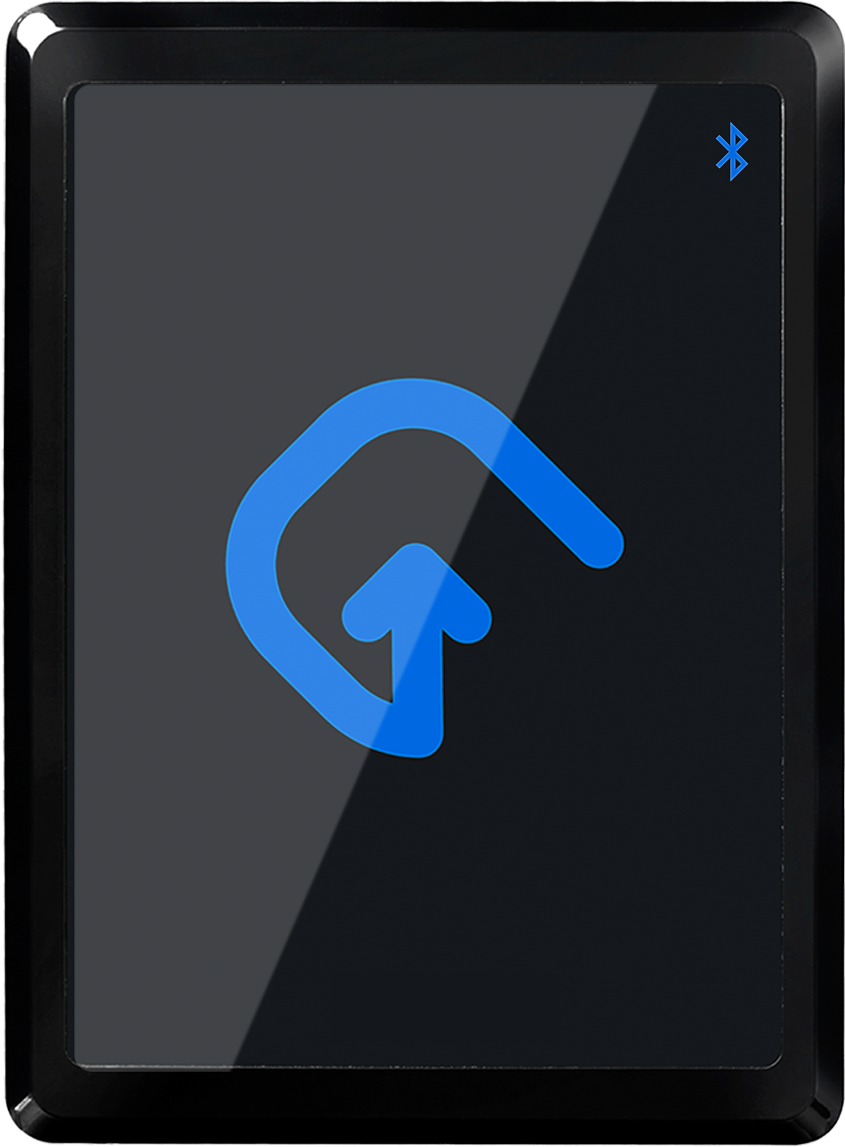

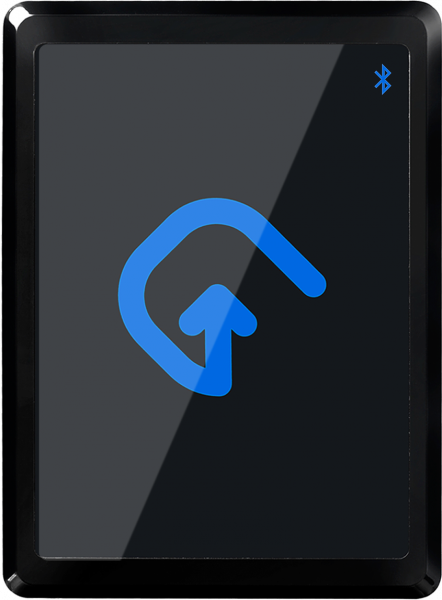

BLUE-C Bluetooth Reader, OSDP

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • N54504-Z162-A100
Produktinformasjon "BLUE-C Bluetooth Reader, OSDP"
Vanderbilt’s range of Bluetooth Readers is a secure and flexible identification solution bringing the access credential to Android and iOS smartphones. Bluetooth Low Energy (BLE) is transforming the future of access control and removes the need for a physical card or tag. Simultaneous support of smartphones and a wide range of smart cards bridges the gap from traditional access credentials to cardless mobile access control and allows a seamless integration into existing locations. Available communication interfaces: • BLUE-A: Wiegand • BLUE-B: Wiegand (with keypad) • BLUE-C: OSDP • BLUE-D: OSDP (with keypad)
Bruttovekt (KG) 0.293
Kjøp enhet PCE
Mindestabnahme 1
Netto vekt 0.193
Opprinnelsesland CN
Statistisk kode 85176200
Materialkode N54504-Z162-A100
Frequency: 13.56 MHz, ISO14443 types A & B, 2.4 GHz Bluetooth® (Low Energy)
Dimensions (L x W x H): 115.5 x 84.5 x 20.5 (mm)
Card compatibility: ACT encoded credentials (MF10C1, MF10T1, EV10C1). CSN from MIFARE Ultralight®, MIFARE® Classic, MIFARE Plus®, MIFARE® DESFire® EV1, EV2, EV3. Third party encoded credentials are not supported.
Operating temperature: 9VDC to 15VDC
Interface to controller: OSDP
Card read distance: MIFARE Classic: 3cm-5cm ( read UID/private ID); DESFire EV1, EV2: 1.5cm-4cm (read UID/private ID)
Weight: 0.293kg
Tamper protection: Hall effect switch
Power supply: 9VDC to 15VDC
Power consumption: 160mA (max.)
LED Indicators: 3 RGB LEDs
Housing protection: IP65 level – water-resistant with waterproof electronics
Housing material: PC, ABS
Buzzer: Internal audio indicator
Approval: Bluetooth SIG, CE, RoHS, REACH and FCC
Installation: Indoor / outdoor
Cable length: max. 150m (AWG 22)
