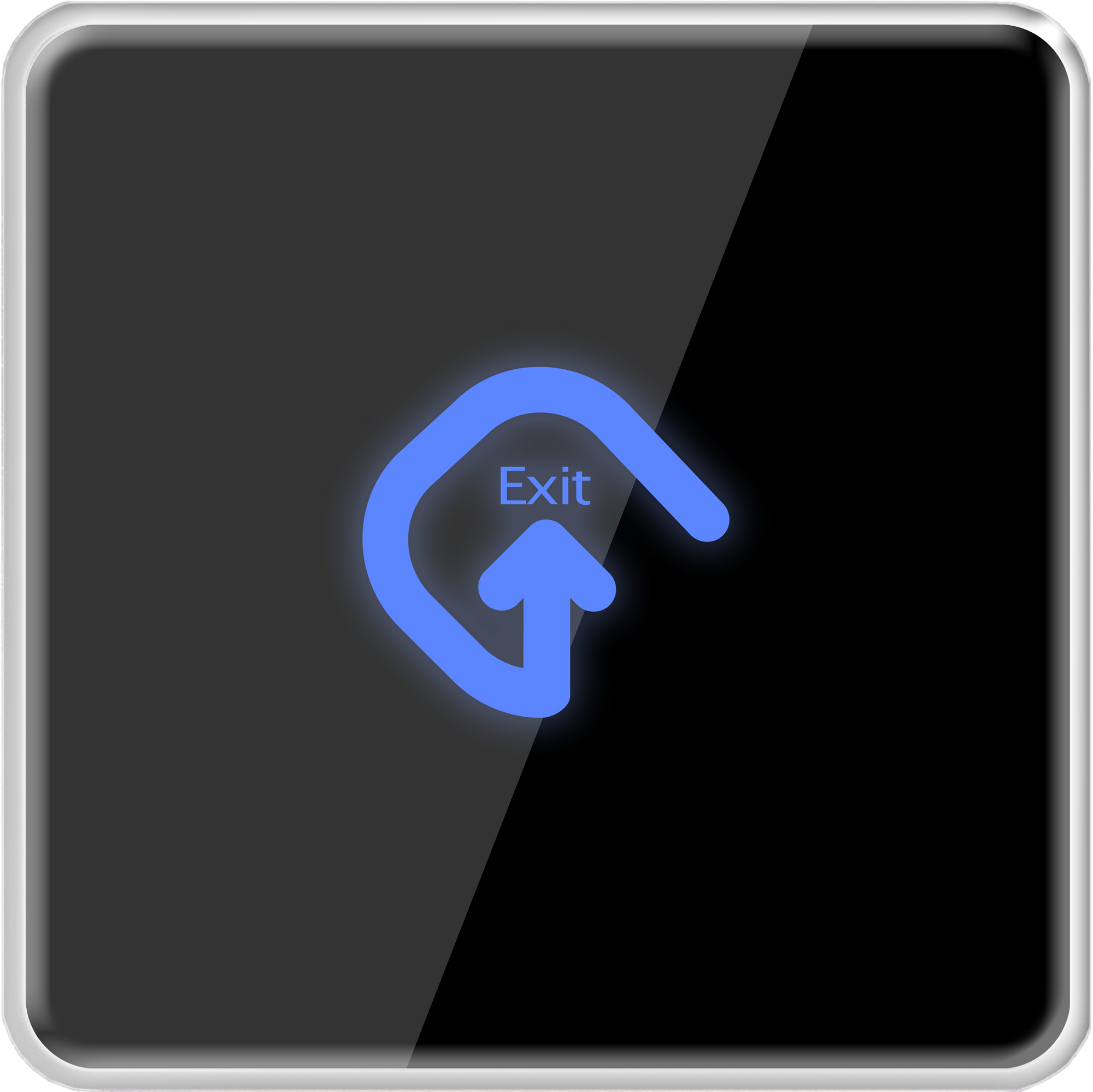

BLUE-EX Contactless Door Exit Button

Forhåndsvisning: BLUE-EX Contactless Door Exit Button Forhåndsvisning: BLUE-EX Contactless Door Exit Button Forhåndsvisning: BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: N54504-Z164-A100
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon nyttige lenker
Beskrivelse
Lukk meny
Produktinformasjon "BLUE-EX Contactless Door Exit Button"
The BLUE-EX door exit button facilitates non-contact door release for applications where high standards of hygiene are required. It is designed in the same look and feel as the Bluetooth reader range to round off the family offering.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.1
Kjøp enhet PCE
Mindestabnahme 1
ECCN N
Materialkode N54504-Z164-A100
Statistisk kode 85439000
Opprinnelsesland CN
Netto vekt 0.050
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Opening time: Digital timer to control the relay output timing from 1 to 15 sec.
Power supply: 12VDC to 24VDC
Detection characteristics / range: Capacitance proximity with DIP-switch to adjust trigger distance between 2cm and 5cm (default setting - 5cm).
Mounting: Fit with UK gang box standard
Relay outputs: NC/NO jumper selectable rated @ 30Vdc; 1A
Power consumption: 150mA (max. @ 12VDC)
Air humidity (EN 60721): 10% - 90%
Housing material: PC, ABS
Buzzer: Internal audio indicator
Operating temperature: -20°C to +60°C
Dimensions (L x W x H): 92 x 92 x 8.5 (mm)
Dokumentasjon
Lukk meny
