MK-3400-5-2x4K7 Magn. Kont.,5m,2x4K7

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54536-F111-A100
  • 4025515478768
Product information "MK-3400-5-2x4K7 Magn. Kont.,5m,2x4K7"

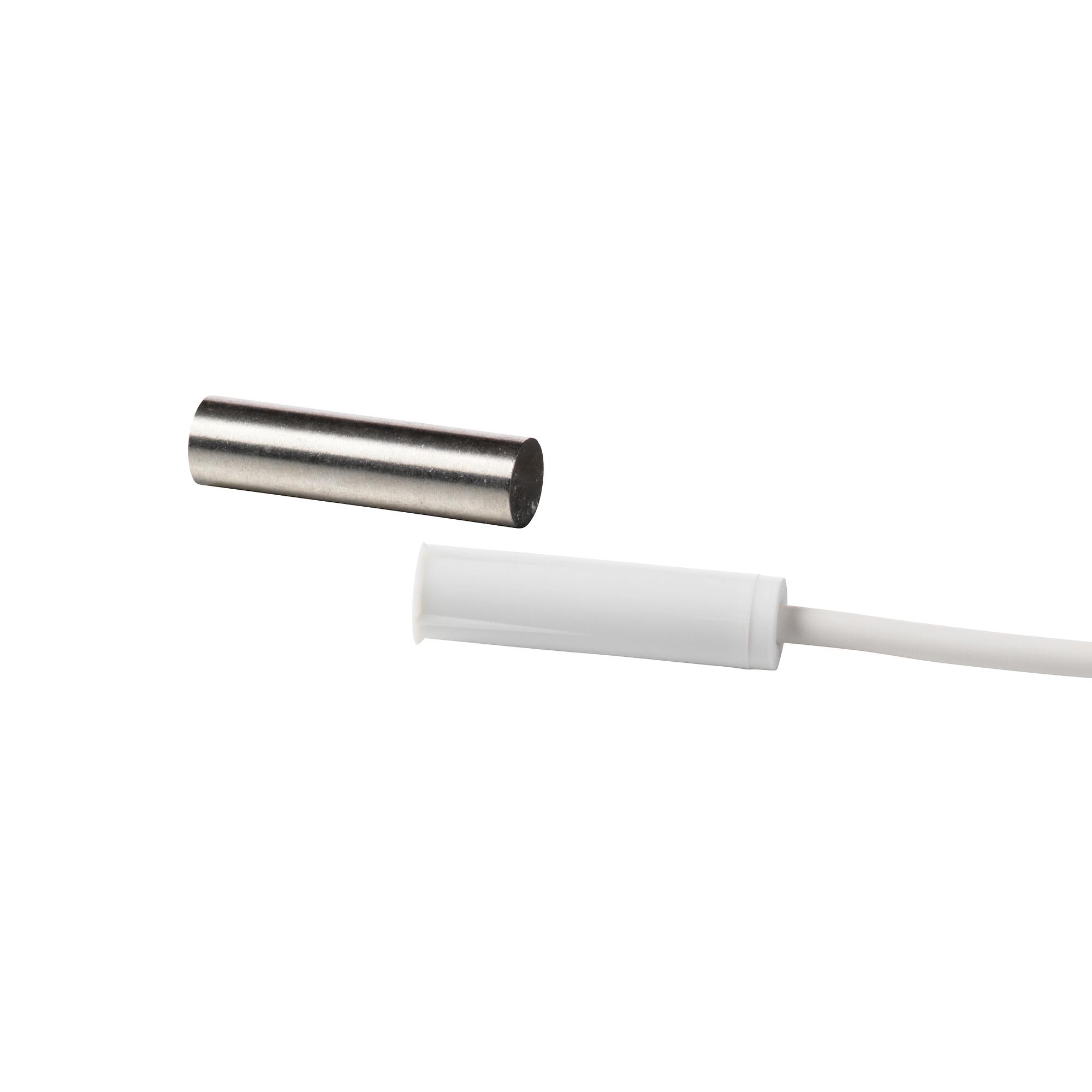

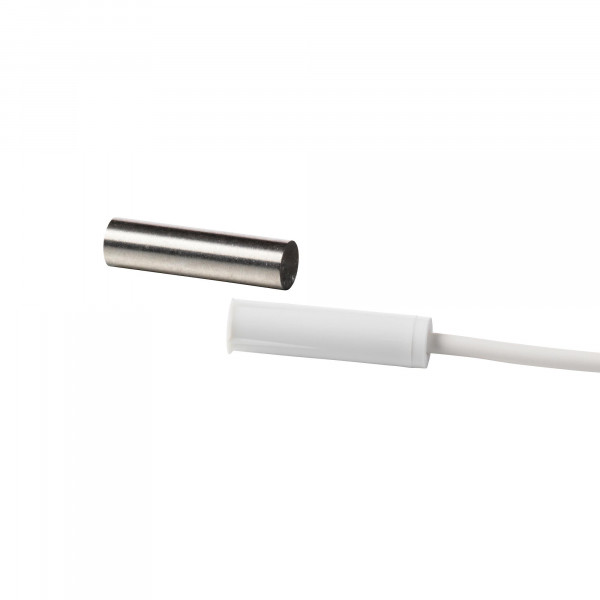

The MK-3000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted in window and door frames of non-magnetic materials or on these. Secondary Packaging: 20 Units
Gross weight (KG) 0.097
Purchase unit PCE
EAN/UPC-Code: 4025515478768
Minimum order 1
ECCN N
Material code V54536-F111-A100
Statistical code 85311030
Net weight 0.092
Country of origin DE
Colour: White (RAL 9003)
Housing material: ABS
Contact rating: Max. 5 W
Switching current: Max. 100 mA
Switching voltage: Max. 110 VDC
Operating temperature: -40 ~ +70 °C
Cable length: 5 m
Environmental class: III
Housing protection: IP67
Approval: EN 50131-2-6, Grade 2 (pending)
