PSU240538 24V PSU 5A, ESPACIO 38Ah BATS
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: N54545-Z161-A100
Product information "PSU240538 24V PSU 5A, ESPACIO 38Ah BATS"

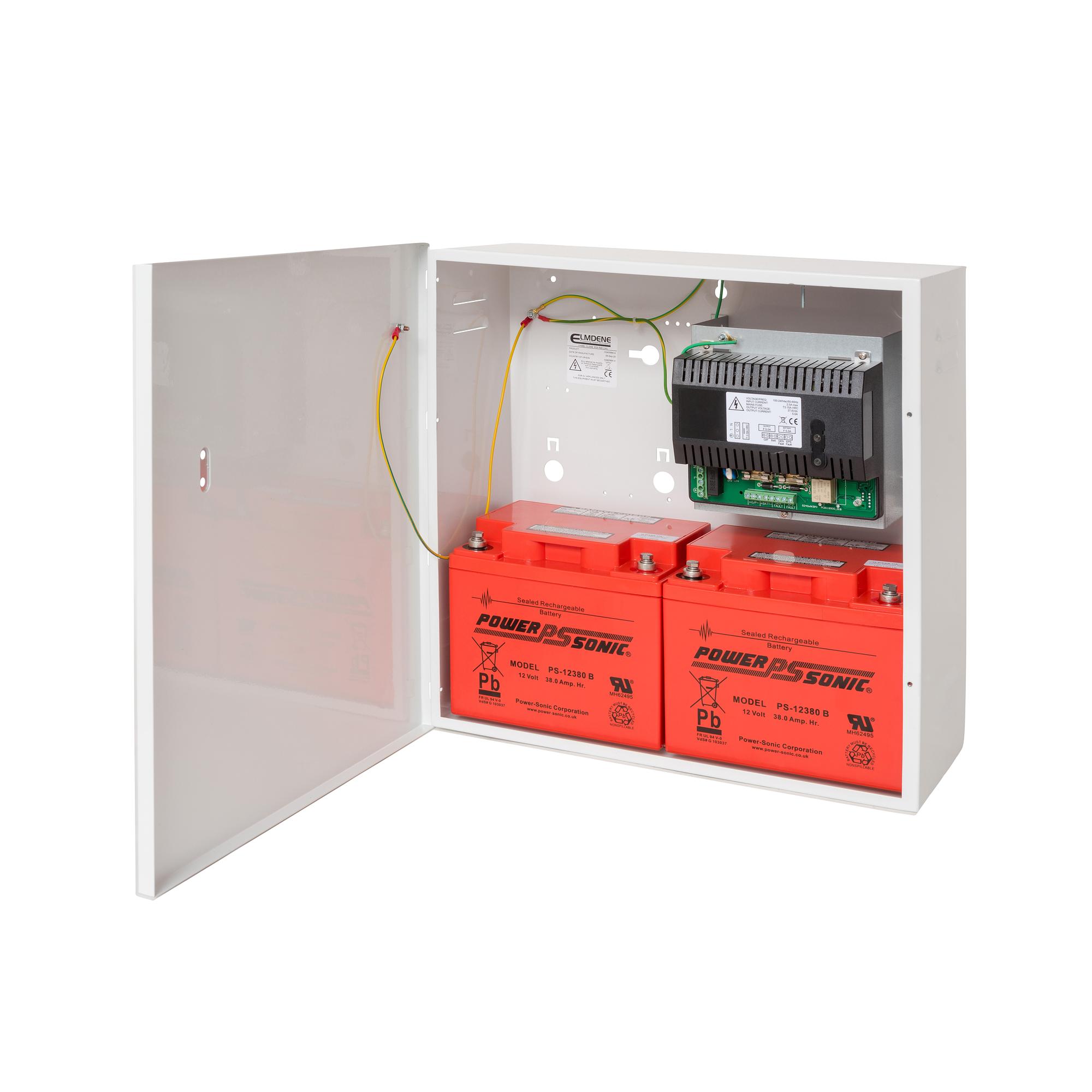

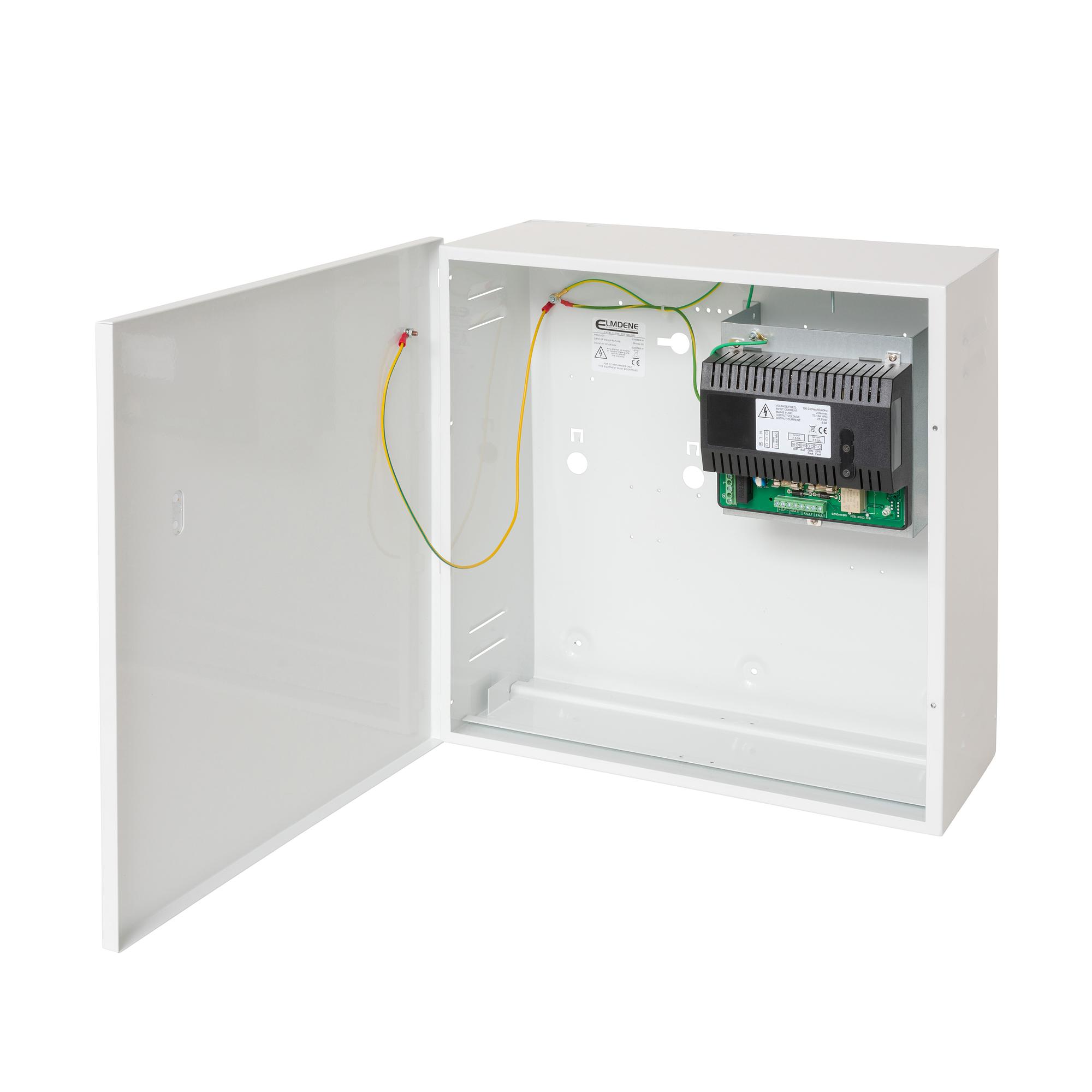

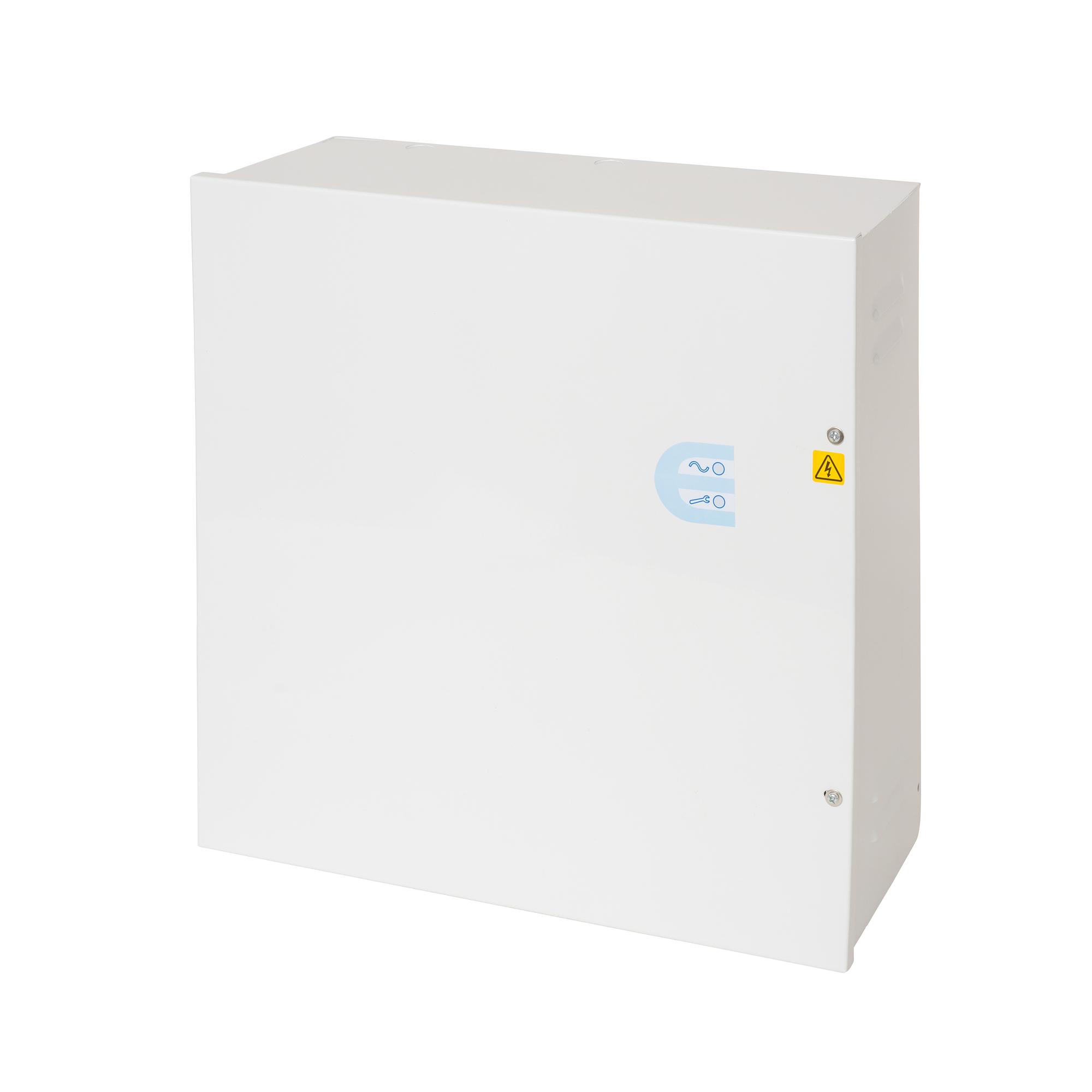

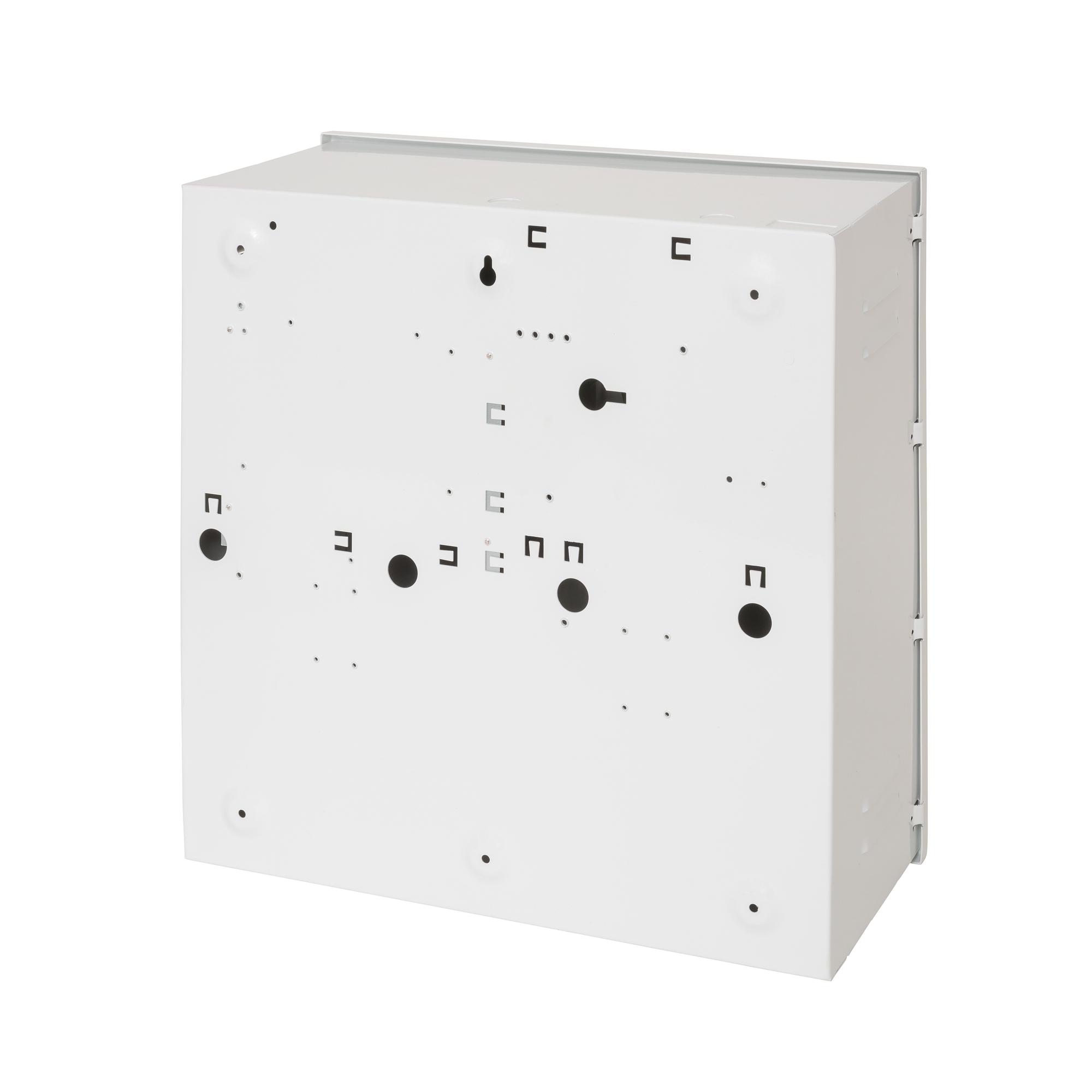

The PSU240538 is a self contained switch mode 24v 5.0 A switch mode
power supply, plus 0.5A for battery recharge. Additional features
include; deep discharge protection, selection of fault outputs, external
LED's for fault diagnosis, tamper protection and space for 2x 38Ah
sealed lead acid batteries. Housed in a mild steel enclosure with space
for various interface cards.
Storage temperature: | -20°C ~ +80°C |
Weight (without battery): | 8.67Kg (Gross) / 8.15Kg (Nett) |
Output voltage: | 24v DC |
Operating temperature: | 10°C to +40°C, 75% RH |
Material: | 1.2mm mild steel |
LED Indicators: | External |
Installation: | Internal |
Input voltage: | 100-240vAC |
Battery: | Max Capacity 2 x 12v 38Ah |
Dimensions (W x H x D): | 425 x 425 x 185 (mm) |
- Datasheet - (English) - Datasheet EN
- Datasheet - (German) - Datasheet DE
- Datasheet - (Spanish) - Datasheet ES
- Datasheet - (French) - Datasheet FR
- Datasheet - (Swedish) - Datasheet SV
- Datasheet - (Italian) - Datasheet IT
- Datasheet - (Danish) - Datasheet DA
- Installation Manual - (English) - Installation Manual
