SPCV340.000 Audio Exp. 4 Inp./1 Outp.

Forhåndsvisning: SPCV340.000 Audio Exp. 4 Inp./1 Outp. Forhåndsvisning: SPCV340.000 Audio Exp. 4 Inp./1 Outp. Forhåndsvisning: SPCV340.000 Audio Exp. 4 Inp./1 Outp.
SPCV340.000 Audio Exp. 4 Inp./1 Outp.
SPCV340.000 Audio Exp. 4 Inp./1 Outp.
SPCV340.000 Audio Exp. 4 Inp./1 Outp.

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54542-F108-B100
  • EAN/UPC-Kode: 4025515470885
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "SPCV340.000 Audio Exp. 4 Inp./1 Outp."

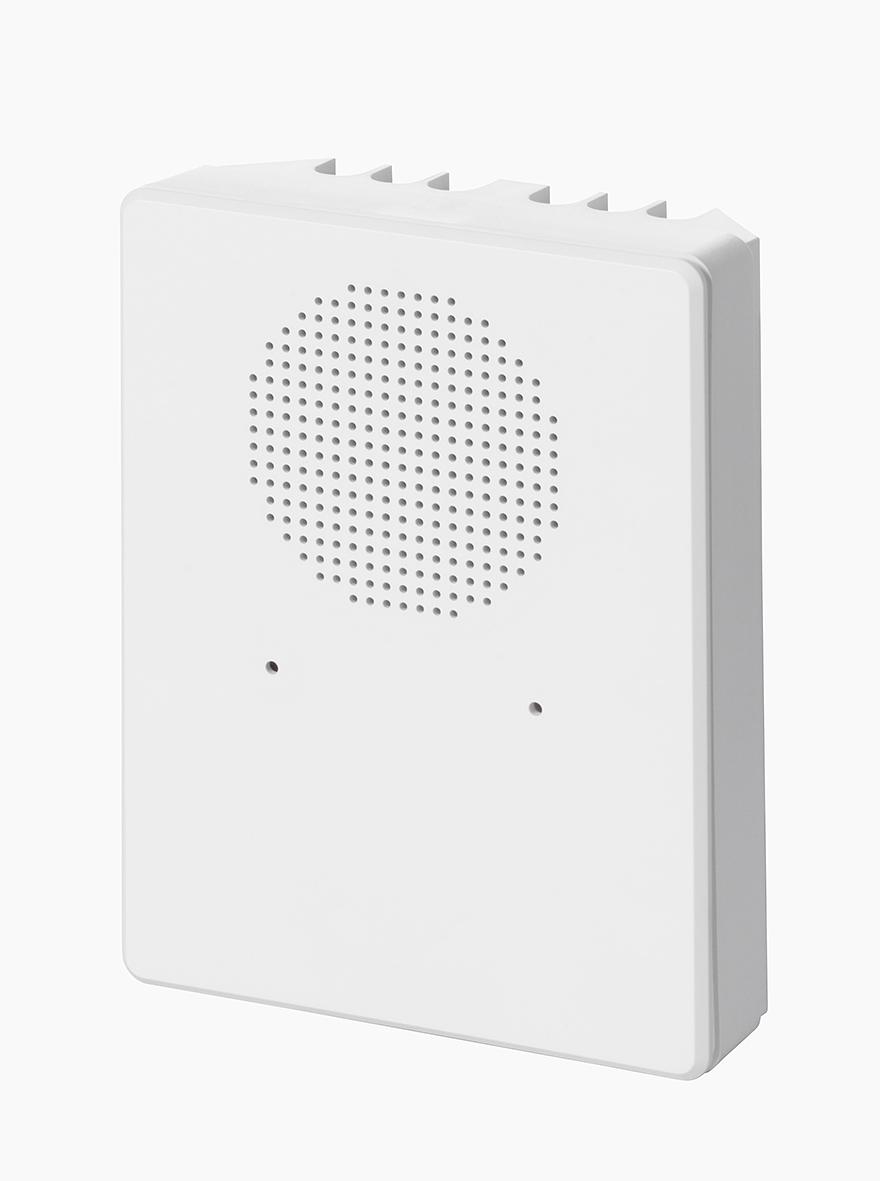

The SPCV340.000 Audio Expander extends the acre Intrusion system via X-BUS with an audio verification zone, 4 wired zones and 1 open collector output. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the acre Intrusion system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.4
Købs Enhed PCE
EAN/UPC-Kode: 4025515470885
mindste bestilling 1
Statistisk kode 85311030
ECCN 3A991
Materialekode V54542-F108-B100
Nettovægt 0.380
Oprindelsesland RO
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 105 × 141 × 42 (mm)
Weight: 0.420 kg
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Operating current: Max. 75 mA at 12 VDC (without satellites)
Tamper contact: Front / back tamper switch
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Number of on-board zones: 4
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Quiescent current: Max. 50 mA at 12 VDC (without satellites)
Dokumentation
