SPCK623.100 Comfort Keypad w. Audio/CR
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54543-F111-A100
- EAN/UPC-Code: 4025515470977
Product information "SPCK623.100 Comfort Keypad w. Audio/CR"

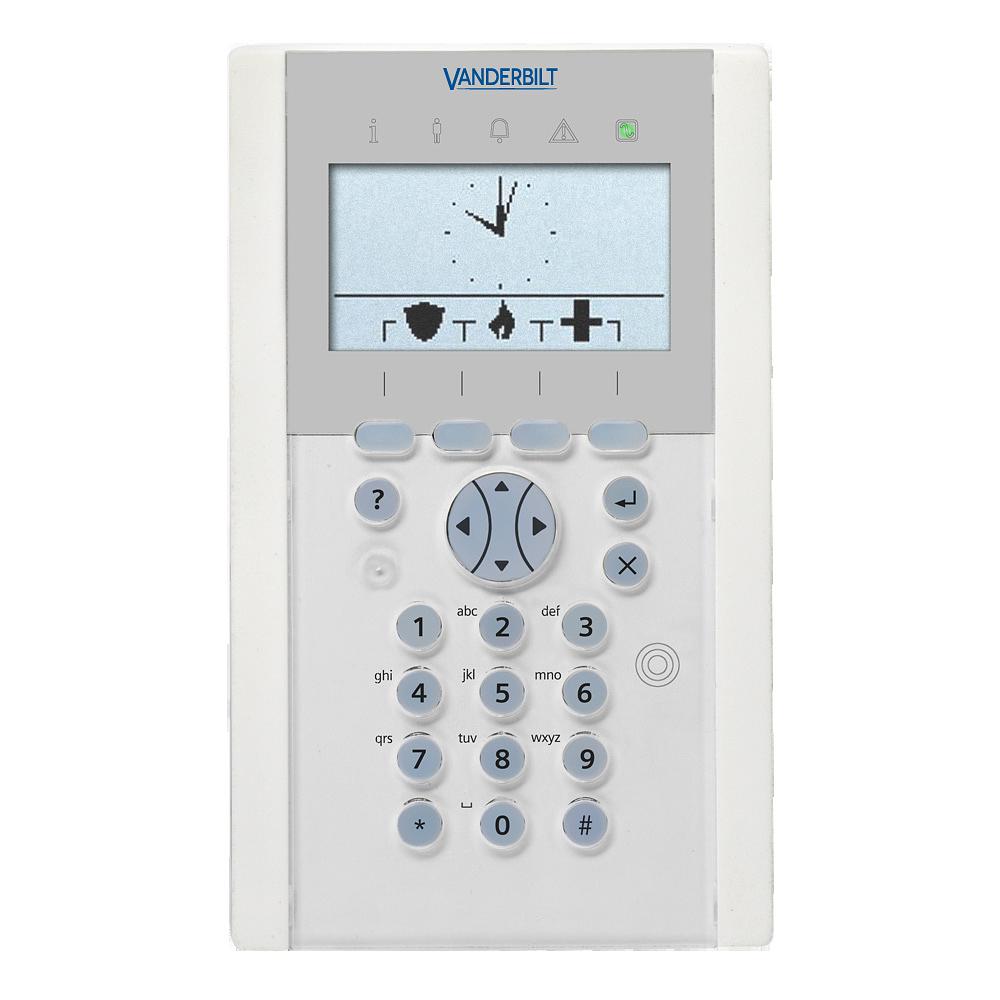

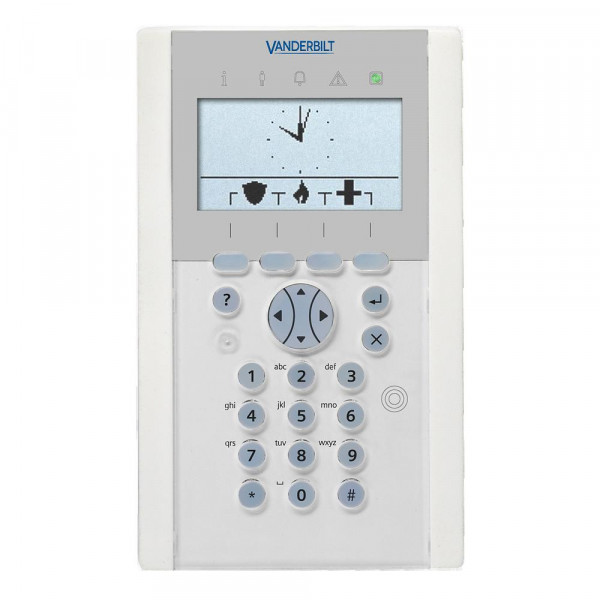

The SPCK623.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys
and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next
step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle
state. The integrated card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with
a valid user PIN. The built in speaker and sensitive microphone support audio features such as alarm verification or voice
annunciation. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.
- Certificate (CE) - Issued by Vanderbilt, on 12/08/2020
- Certificate - Issued by INCERT, on 31/01/2022
- Certificate - Issued by INCERT, on 31/01/2022
- Certificate - Issued by VdS, on 28/05/2021
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by INCERT, on 01/12/2022
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 01/12/2022
Interfaces: | X-BUS (in, out) |
Operating temperature: | 5 ~ +40 °C |
Quiescent current: | Max. 110 mA at 12 VDC |
Operating current: | Max. 230 mA at 12 VDC (backlight, LEDs, audio, reader operated) |
Audio: | Supported via integrated speaker and microphone |
Approval: | EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C |
Housing: | Plastic housing (Polycarbonate) |
Weight: | 0.380 kg |
LED Indicators: | 5 status LEDs |
LCD Display: | 128 x 64 pixels (approx. 6 x 20 characters) |
Tamper contact: | Front / back tamper |
Colour: | RAL 9003 (signal white) |
Mounting: | Flat surface, wall-mounted |
Operating voltage: | 9.5 ~ 14 VDC |
Dimensions (W x H x D): | 112 x 185 x 28 (mm) |
- Datasheet
- Installation Manual - (Multilingual) - spck6xx
- User manual - (German) - spck6xx
- User manual - (English) - spck6xx
- User manual - (Spanish) - spck6xx
- User manual - (French) - spck6xx
- User manual - (Italian) - spck6xx
- User manual - (Dutch) - spck6xx
- User manual - (Swedish) - spck6xx
- User manual - (English) - User manual SPCK62x_EN
- User manual - (German) - Systembenutzeranleitung SPCK62x_DE
- Product Support Guide - (English) - SPC over fibre
- Product Support Guide - (German) - Ausgang setzen über Bedienteil
- Product Support Guide - (Spanish) - SPC a traves Fibra
