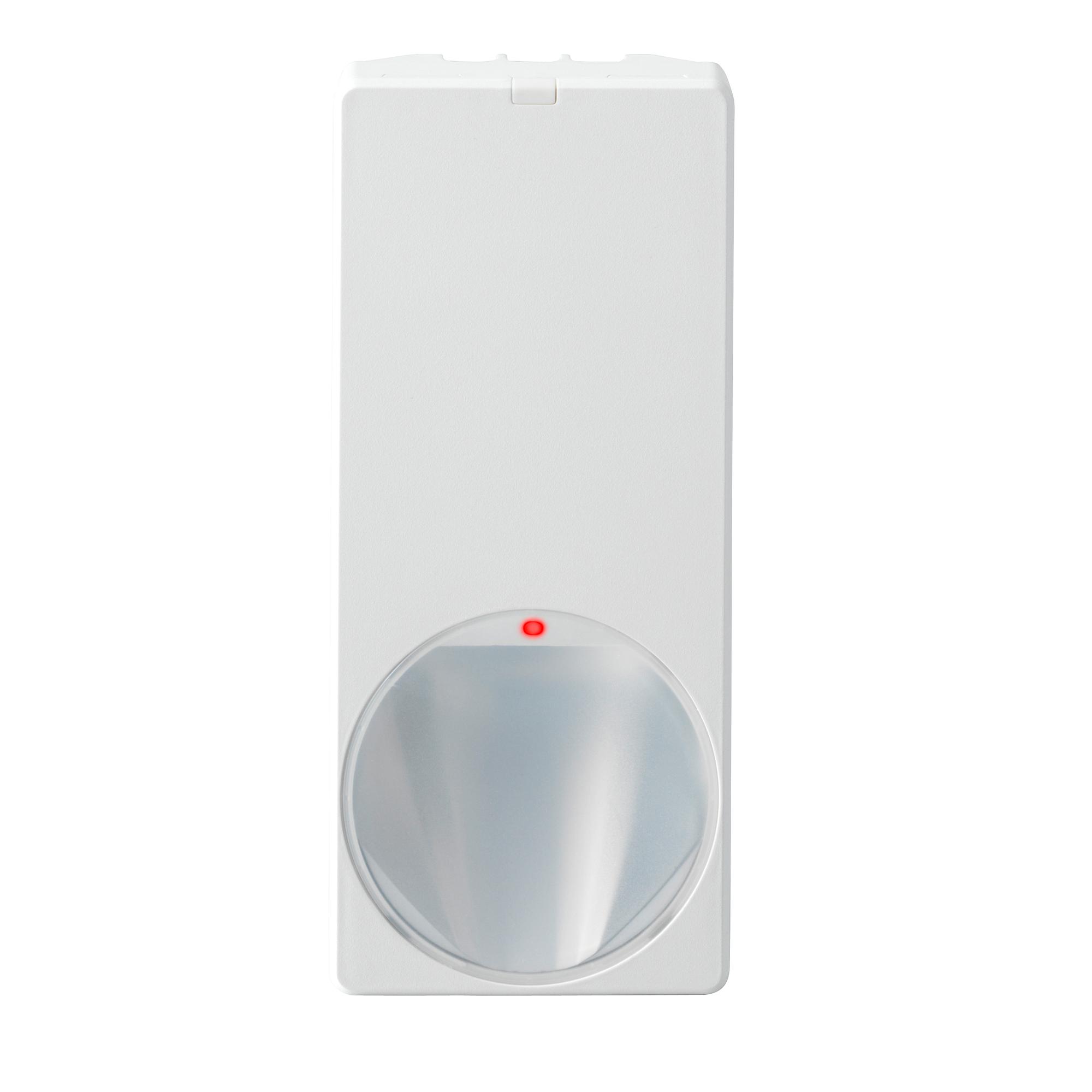

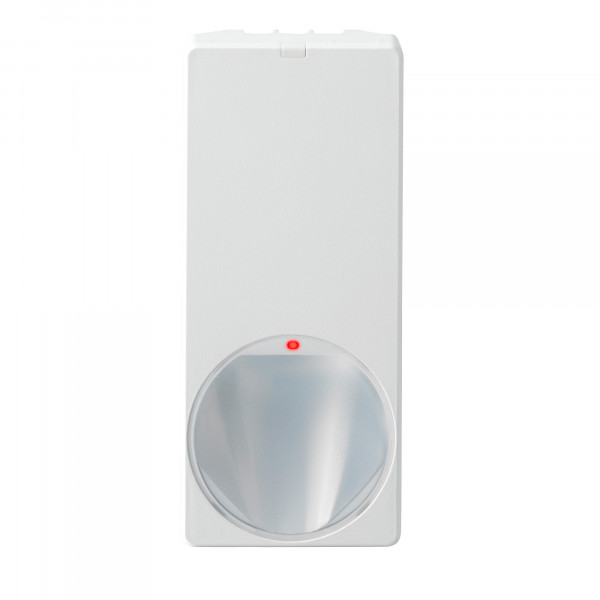

PDM-I18T PIR AM detector

Please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54530-F107-A100
  • 4025515470397
Product information "PDM-I18T PIR AM detector"
MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Gross weight (KG) 0.16
Purchase unit PCE
EAN/UPC-Code: 4025515470397
Minimum order 1
ECCN N
Statistical code 85311030
Country of origin RO
Material code V54530-F107-A100
Net weight 0.095
Walking speed: 0.1 ... 4m/s
Detection characteristics / range: Volumetric / 18m
Colour: RAL9003
Supply voltage: 9 ... 16VDC (12V nom.)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Sensitivity evaluation mode: 4 settings
Operating temperature: -10°C …+55°C
Air humidity (EN 60721): < 85% RH, non-condensing
Storage temperature: -20°C …+60°C
Pet immunity: no
Weight: 0.115kg
Approval: EN50131-2-2 Grade 3 VdS Class C
Housing protection (EN 60529): IP41 / IK02
Optical system: MAGIC mirror
Current consumption: 3.9mA (rms) 6.6mA (max. peak)
