WPIR-EXT AM Wrls. Ext PIR c/w pet

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54538-F124-A100
EAN/UPC-Code: 7330082006144

Close menu

Product information "WPIR-EXT AM Wrls. Ext PIR c/w pet"

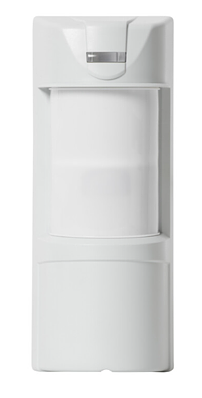

Vanderbilt’s WPIR-EXT is a double quad motion detector that seamlessly blends style and security resulting in a class leading product. This device has a detection range of 3 to 12 metres and can even be configured for use in harsh environments, establishing the highest security protection. The device is easy to mount, easy to pair, and easy to configure, ensuring installation time is minimized. In addition, the device uses enhanced, low current RF technology that provides superior communication and ensures long battery life.

Gross weight (KG)	0.65
Purchase unit	PCE
EAN/UPC-Code:	7330082006144
Minimum order	1
Statistical code	85311030
Net weight	0.580
ECCN	EAR99
Material code	V54538-F124-A100
Country of origin	IL

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

LED Indicators:	Red LED: PIR Activated and /or trouble
Weight:	500 gr
Pet immunity:	25kg
Operating temperature:	-25°C to +55°C
Detection characteristics / range:	3 - 12m
Frequency:	868-869MHz
Current consumption:	Standby ~22 µA Receive mode ~24 mA Transmit mode ~45 mA
Range:	up to 500m in open air
