PDM-I12T PIR AM detector

Esikatselu: PDM-I12T PIR AM detector Esikatselu: PDM-I12T PIR AM detector
PDM-I12T PIR AM detector
PDM-I12T PIR AM detector

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: V54530-F105-A100
  • EAN/UPC-Code: 4025515470373
Kuvaus Certificates Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation Nützliche Links
Kuvaus
Sulje valikko
Tuotetiedot "PDM-I12T PIR AM detector"

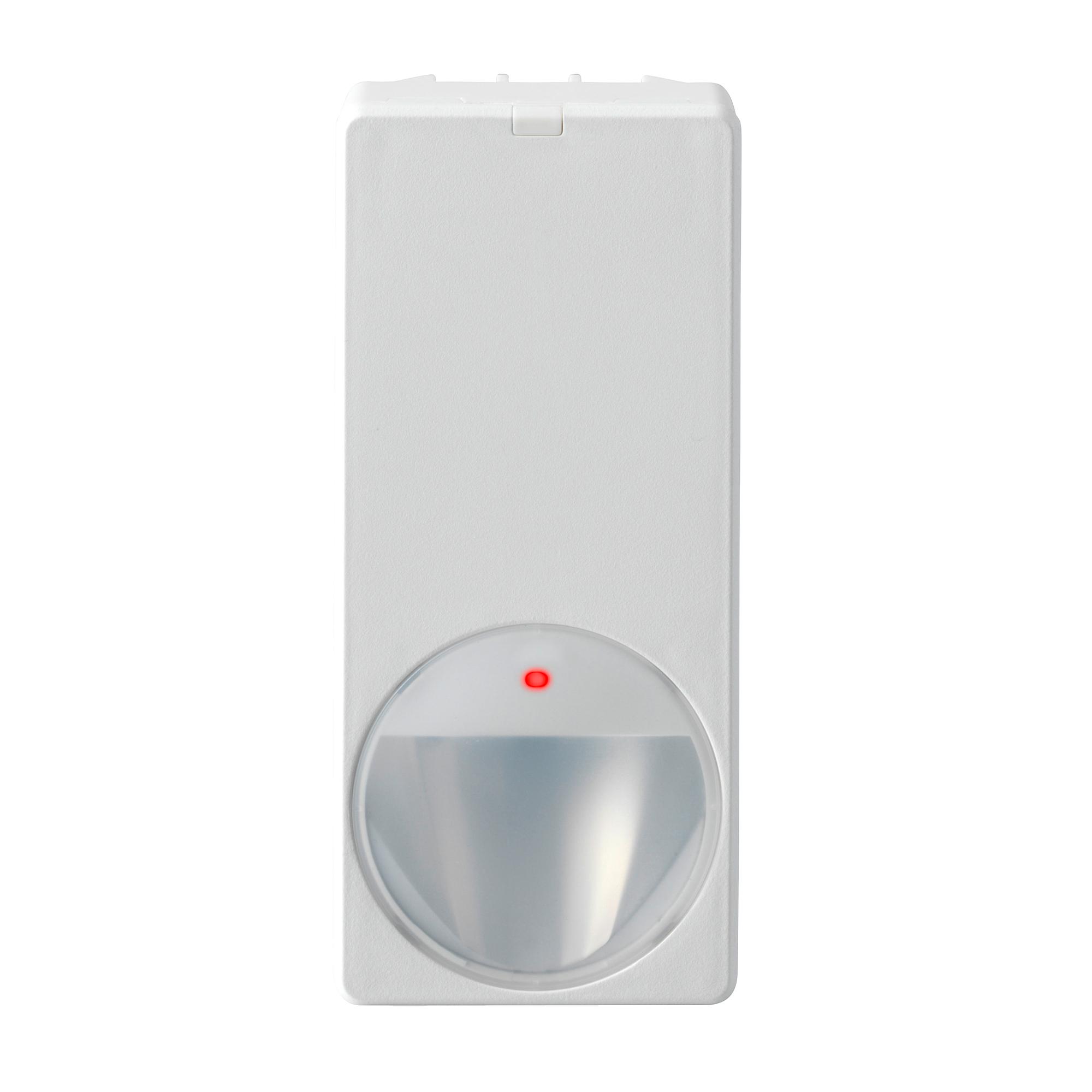

MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Certificates
Sulje valikko
Tuonti ja vienti
Gross weight (KG) 0.105
Osta yksikkö PCE
EAN/UPC-Code: 4025515470373
Mindestabnahme 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.104
Material code V54530-F105-A100
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Approval: EN50131-2-2 Grade 3 VdS Class C
Colour: RAL9003
Current consumption: 3.9mA (rms) 6.6mA (max peak)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Air humidity (EN 60721): < 85% RH, non-condensing
Sensitivity evaluation mode: 4 settings
Weight: 0.095kg
Dimensions (W x H x D): 57 x 128 x 32 (mm)
Walking speed: 0.1 ~ 4m/s
Storage temperature: -20° ~ +60°C
Operating temperature: -10° ~ +55°C
Housing protection (EN 60529): IP41 / IK02
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 12m
Supply voltage: 9 ~ 16VDC (12V nom.)
