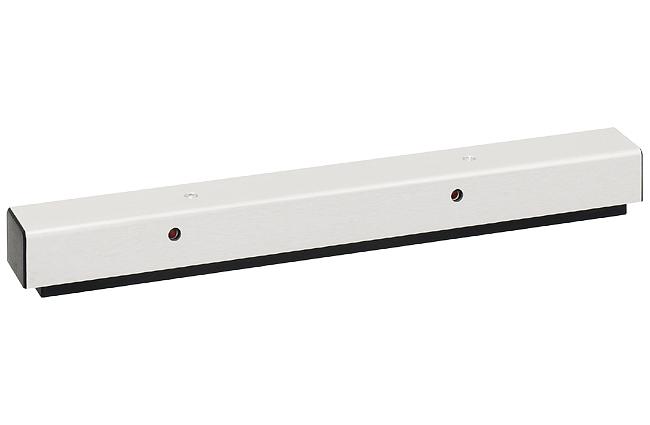

HD-FK300 Foot rail 300mm

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

Produkt-nr.: N54559-F101-A100
EAN/UPC Strekkode: 4025515478041

Lukk meny

Produktinformasjon "HD-FK300 Foot rail 300mm"

The hold-up floor alarm bar is installed as a hold-up detector, in particular under counters, office desks, shop counters or similar installations. When the alarm bar is triggered, one of the two microcontacts is activated and the detector group is interrupted and an alarm triggered. Triggering is displayed permanently via two mechanical individual displays. This display can only be reset manually by piercing the relevant indicator and renewing after resetting. In this manner, it is possible to exactly identify the detector that has triggered the alarm. With each rail there are additional ten indicators delivered for replacing the pierced ones.

Lukk meny

Bruttovekt (KG)	0.318
Kjøp enhet	PCE
EAN/UPC Strekkode:	4025515478041
Mindestabnahme	1
ECCN	N
Netto vekt	0.314
Materialkode	N54559-F101-A100
Statistisk kode	85311030
Opprinnelsesland	DE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Switching voltage:	42 VDC
Switching current:	max 0.1 A
Housing material:	Aluminium, anodized
Approval:	VdS Klasse C, Nr. G 186030 VSÖ Klasse WS, Nr. W 130603/68 E
Weight:	0.300 kg
Dimensions (L x W x H):	300 x 30 x 36 (mm)
