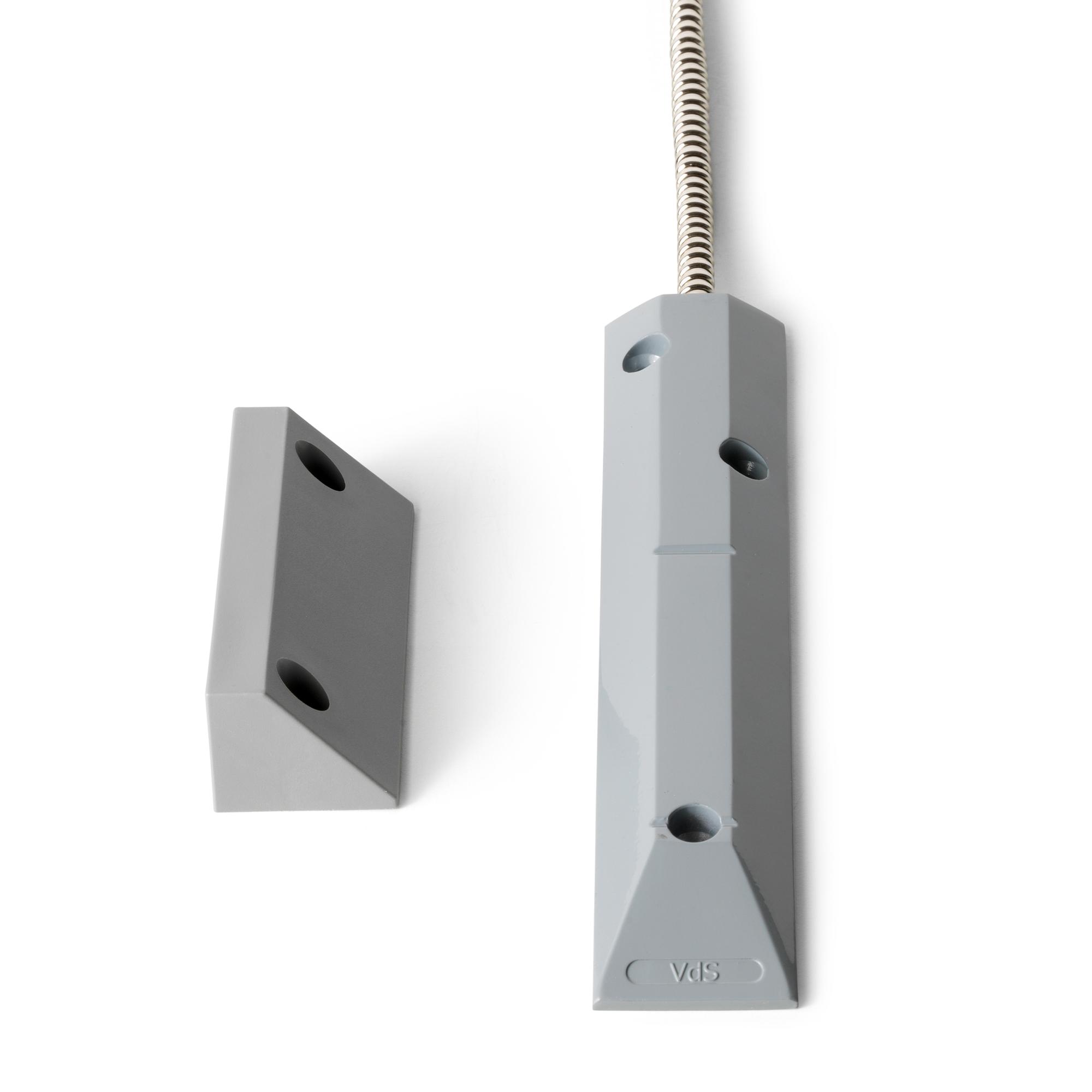

MK-2400-S2 Magn. Cont.,Set2,Al,6/0.5m

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54536-F104-A200
  • 4025515478607
Produktinformasjon "MK-2400-S2 Magn. Cont.,Set2,Al,6/0.5m"
The mounting is mostly on rolling, sliding, tilting, etc. gates. Through the protection painted Aluminum housing the magnetic contact is resistant to sea water and is therefore also suitable for shipbuilding. Due to the weather-resistance and mechanically stable design of the contact housing, the circuit is largely protected from damage when driving with rubber-tired vehicles. The cable is protected by a 0.5m metal tube. Secondary package: 6 Units
Bruttovekt (KG) 0.44
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515478607
Mindestabnahme 1
ECCN N
Netto vekt 0.418
Materialkode V54536-F104-A200
Statistisk kode 85311030
Opprinnelsesland DE
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Cable length: 6 m (metal tube 0.5 m)
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Power supply: Max. 40 VDC
