MK-2400-S1 Magn. Cont. Set1,Al,6/1m

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • V54536-F104-A100
  • 4025515478591
Produktinformasjon "MK-2400-S1 Magn. Cont. Set1,Al,6/1m"

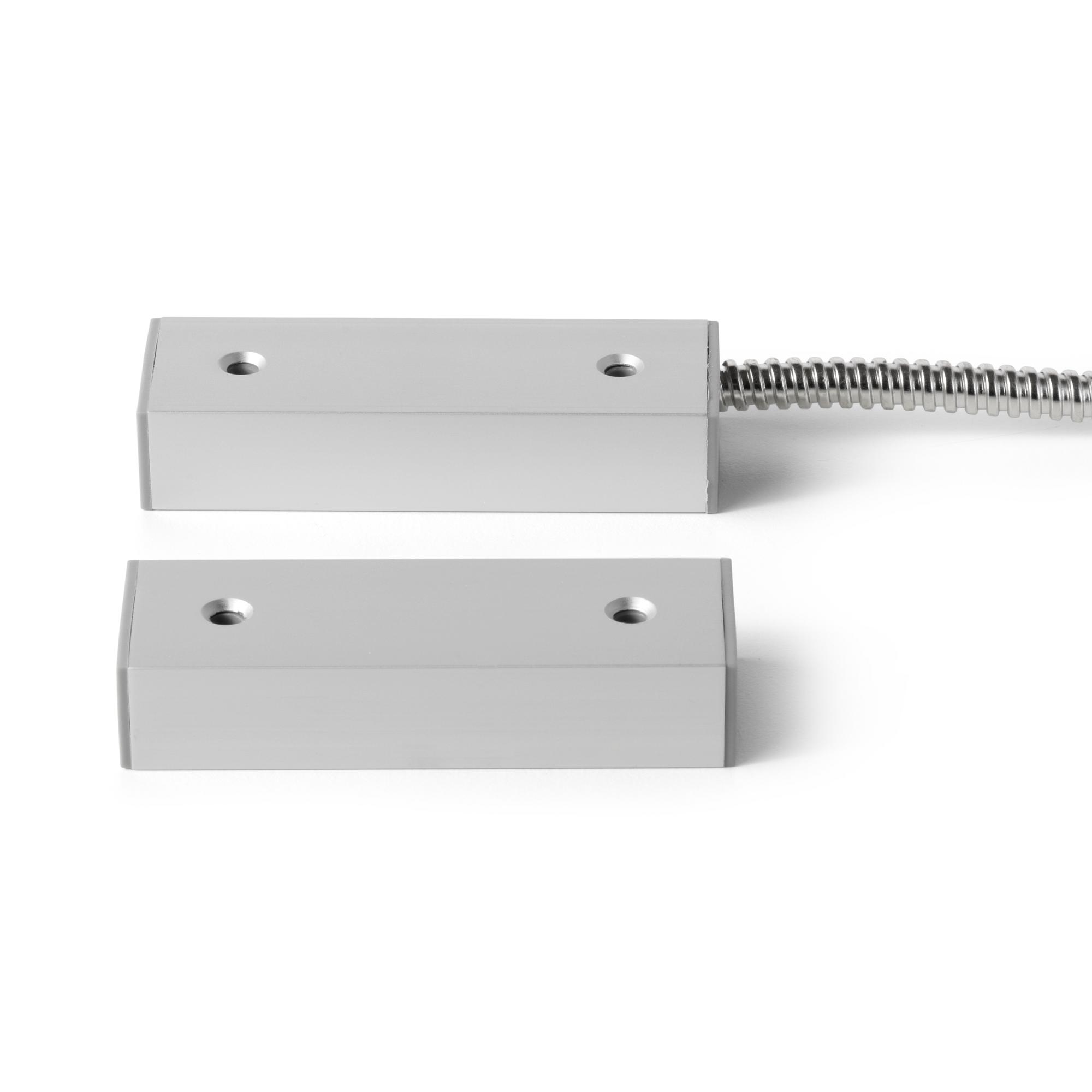

Surface mount magnetic contact for industrial areas. Suitable for roller shutter control. Magnetic contact and Magnet must be mounted in a parallel position. The cable is protected by a 1 m metal tube. Secondary package: 20 Units
Bruttovekt (KG) 0.216
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515478591
Mindestabnahme 1
ECCN N
Netto vekt 0.205
Materialkode V54536-F104-A100
Statistisk kode 85311030
Opprinnelsesland DE
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Cable length: 6 m
Dimensions (W x H x D): 73 x 26 x 15 (mm)
