E500 LON REPEATER

E500 LON REPEATER
Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • Produkt-nr.: V54506-F121-A100
  • EAN/UPC Strekkode: 7330082005567
Beskrivelse Certificates Import og eksport Ressourcen Teknisk data Dokumentasjon nyttige lenker
Beskrivelse
Lukk meny

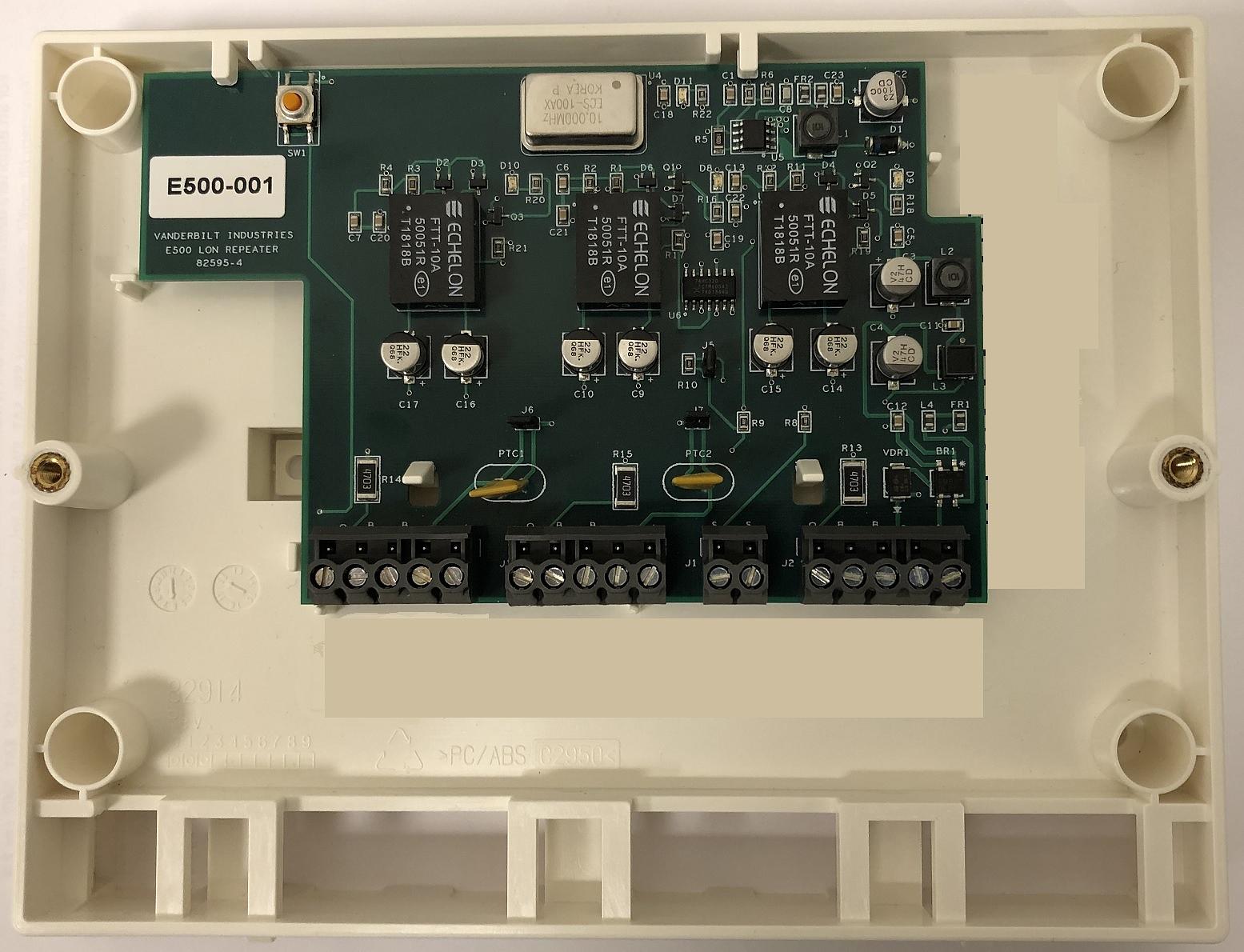

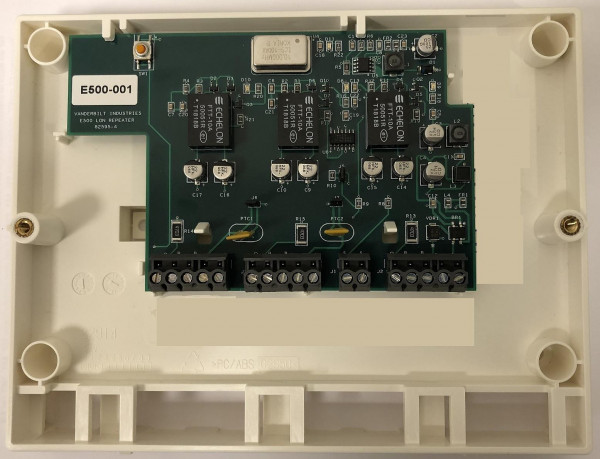

Produktinformasjon "E500 LON REPEATER"
E500 is a LON repeater and allows communication over longer cable distances and galvanic isolation between network segments. With the E500 the communication bus can be divided from a single network segment into two new ones.
Certificates
Lukk meny
Import og eksport
Bruttovekt (KG) 0.74
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082005567
Mindestabnahme 1
Statistisk kode 84719000
ECCN 5A992
Materialkode V54506-F121-A100
Netto vekt 0.703
Opprinnelsesland PH
Ressourcen
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Teknisk data
Lukk meny
Operating temperature: +5 ~ +55 ºC
Dimensions (W x H x D): 201 x 156 x 53 (mm)
Indicators: 3 indicators on PCB; TD & RD & Power Supply
Current consumption, quiescent: 12 mA, 24V DC
Weight: 0.6 kg
Communication protocol: Echelon LonTalk
Environmental class: II
Power supply: 20 ~ 29V DC
