Produktinformasjon "E100 Central Controller"

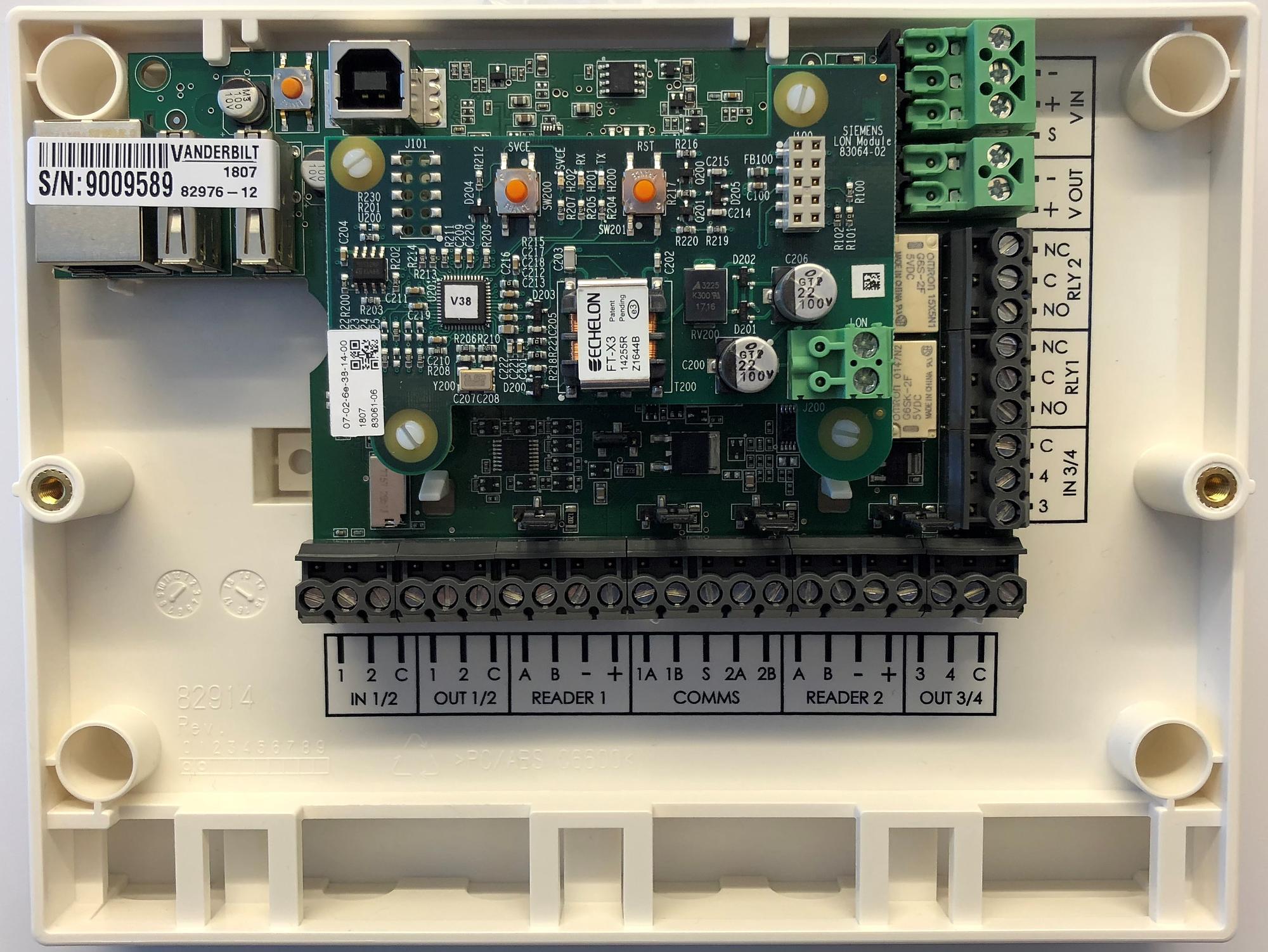

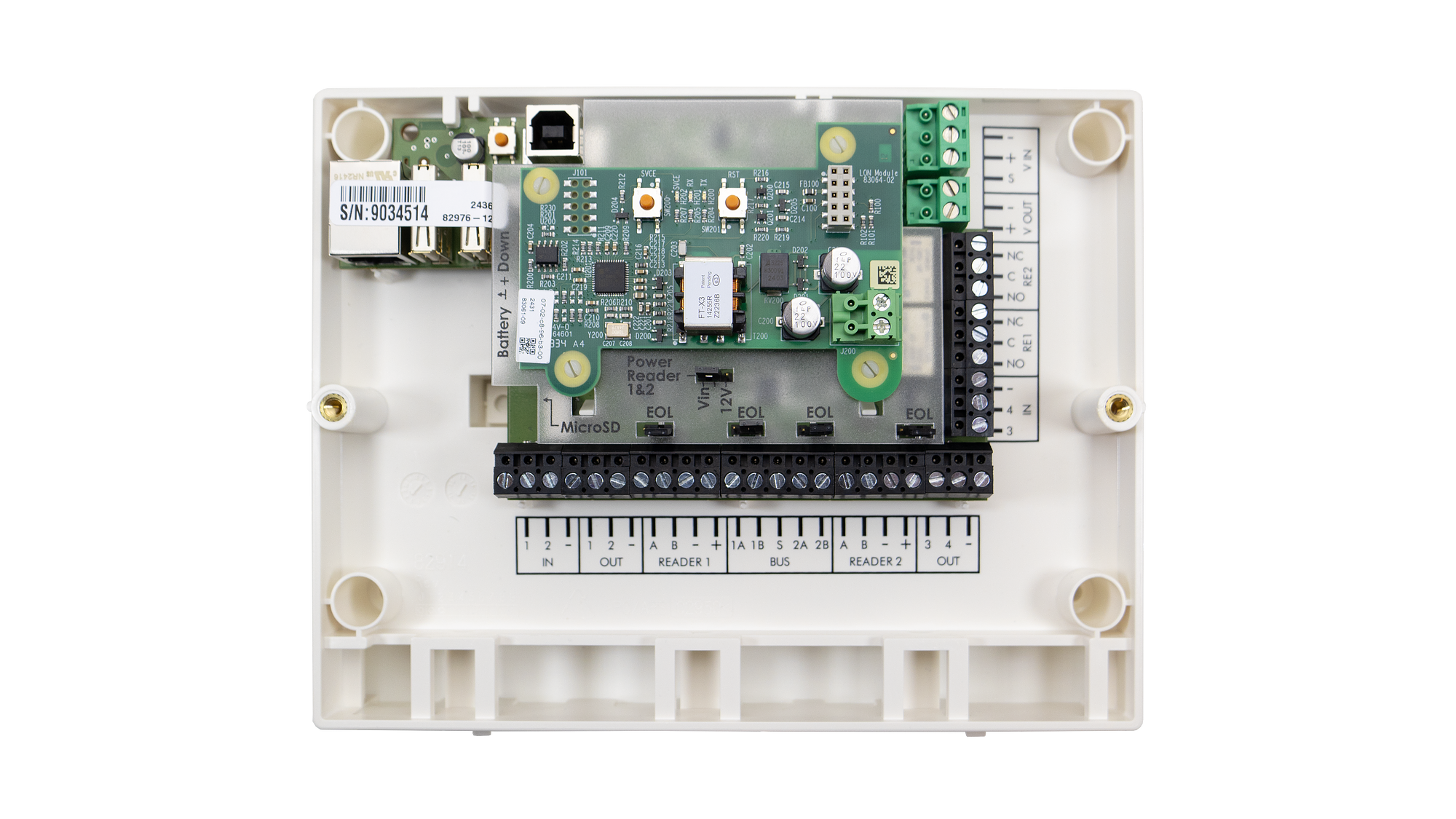

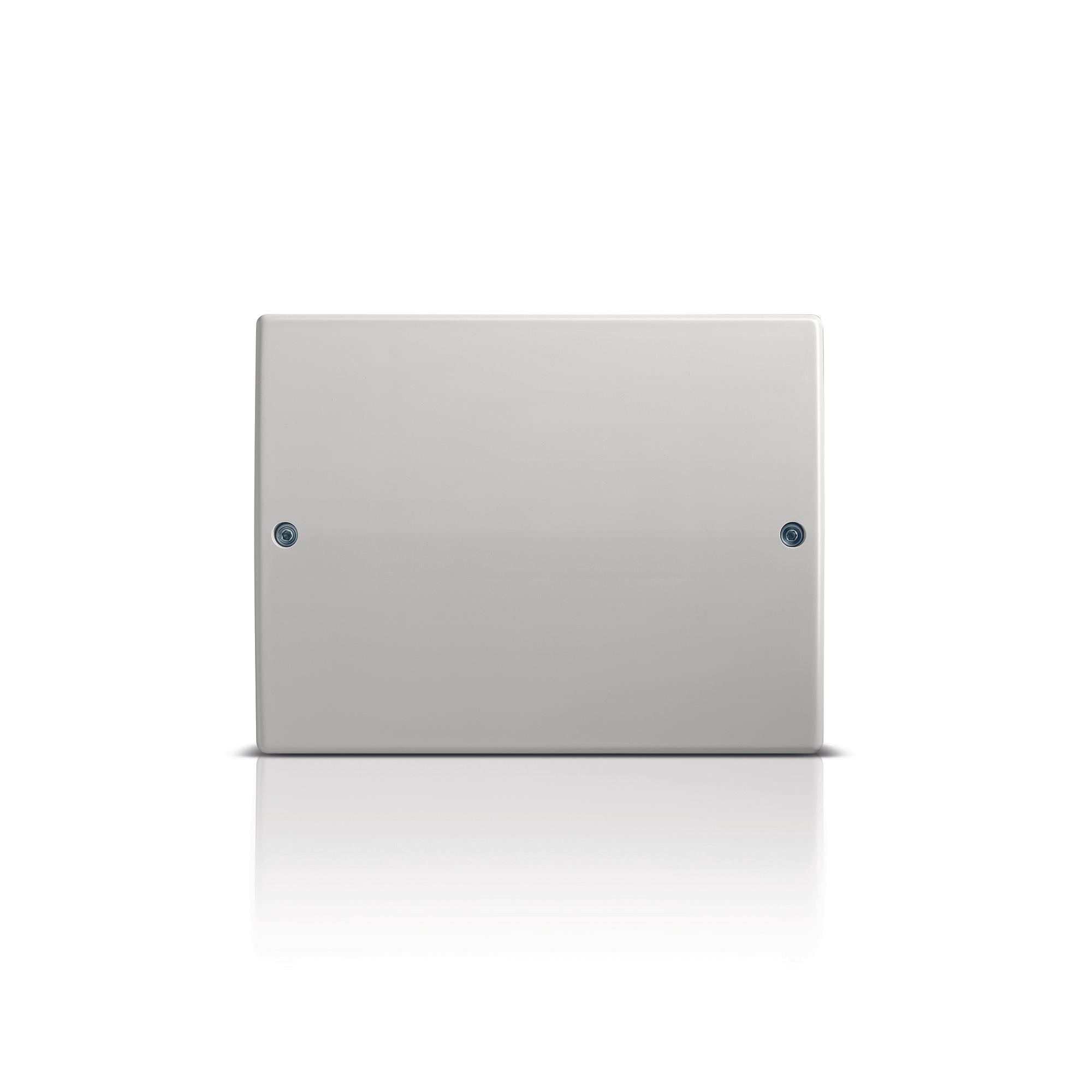

The E100 is a central controller for the Omnis system. It can also act as a combined central and door controller. A total of 79 downstream devices, the internal door controller included, can be managed by the E100.
Bruttovekt (KG) 0.635
Kjøp enhet PCE
EAN/UPC Strekkode: 7330082004232
Mindestabnahme 1
Opprinnelsesland SE
ECCN EAR99
Materialkode V54502-F101-A100
Netto vekt 0.100
Statistisk kode 84715000
Dimensions (W x H x D): 201 x 156 x 53 [mm]
Interfaces: 1 x RJ45 TCP/IP 2 x USB A 1 x USB B
Card capacity: 60,000
Operating temperature: - 40 to +55 C
Current consumption: 125mA idle, 400mA max @24VDC
Power supply: 20-29 VDC
Weight: 650 grams
Tamper switch: Removal from wall and removal of cover.
Colour: White
Communication protocol: Echelon LonTalk, TCP/IP, OSDP, Wiegand, Clock & Data
