temporarily out of stock, please check availability with your local Customer Service team.
- Article number: V54531-F117-A100
- EAN/UPC-Code: 4025515470496

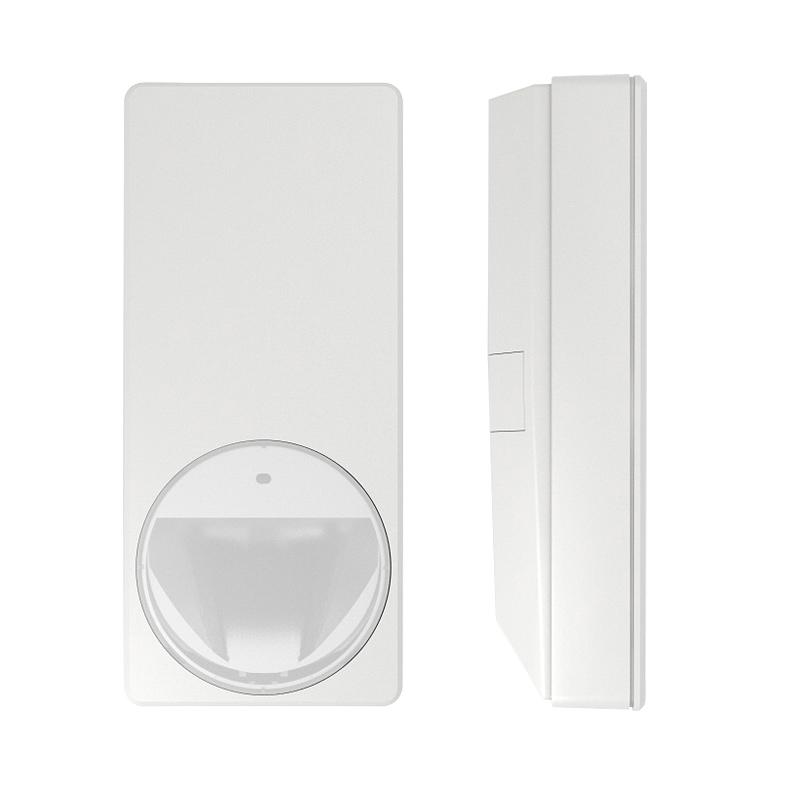

Product information "PDM-IXE12T Dual AM detector 10.587GHz"
MAGIC motion detector PDM-IXE12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
|Outputs:||30 VDC / 100 mA, NC|
|Walk test input:||LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ|
|Set/unset input:||LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ|
|EOL resistor:||RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW|
|Operating temperature:||- 10° ... + 55°C|
|Storage temperature:||- 20° ... + 60°C|
|Detection characteristics / range:||Volumetric / 12 m|
|Microwave (MW):||10.587 GHz|
|Pet immunity:||yes (option)|
|Sensitivity evaluation mode:||6 settings|
|Current consumption:||6.3 mA (rms) 10.5 mA (max peak)|
|Walking speed:||0,1 ... 4,0 m/s / 0,1 ... 4,0 m/s|
|Approval:||NF&A2P Grade 3 + RTC (pending) EN50131-2-4 grade 3|
|Dimensions (W x H x D):||57 x 128 x 32|
|Supply voltage:||9 ... 16 VDC (12 V nom.)|
|Air humidity (EN 60721):||< 95% RH, non-condensing|
|Housing protection (EN 60529):||IP41 / IK02|
|Optical system:||MAGIC mirror|
