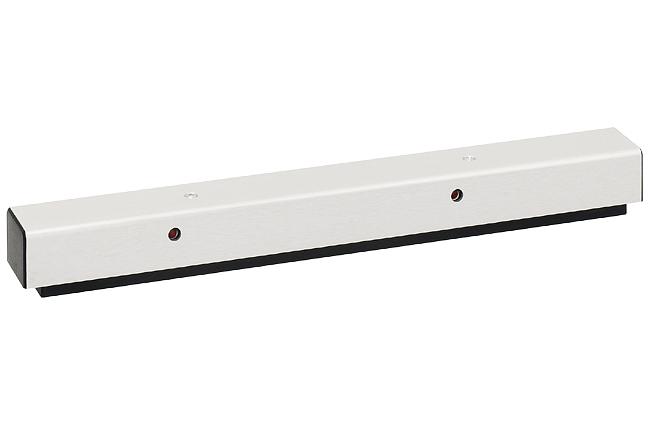

HD-FK300 Foot rail 300mm

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • N54559-F101-A100
  • 4025515478041
Product information "HD-FK300 Foot rail 300mm"
The hold-up floor alarm bar is installed as a hold-up detector, in particular under counters, office desks, shop counters or similar installations. When the alarm bar is triggered, one of the two microcontacts is activated and the detector group is interrupted and an alarm triggered. Triggering is displayed permanently via two mechanical individual displays. This display can only be reset manually by piercing the relevant indicator and renewing after resetting. In this manner, it is possible to exactly identify the detector that has triggered the alarm. With each rail there are additional ten indicators delivered for replacing the pierced ones.
Gross weight (KG) 0.318
Purchase unit PCE
EAN/UPC-Code: 4025515478041
Minimum order 1
ECCN N
Material code N54559-F101-A100
Net weight 0.314
Statistical code 85311030
Country of origin DE
ECCN: N
Switching current: max 0.1 A
Housing material: Aluminium, anodized
Dimensions (L x W x H): 300 x 30 x 36 mm
Approval: VdS Klasse C, Nr. G 186030 VSÖ Klasse WS, Nr. W 130603/68 E
Weight: 0.300 kg
Switching voltage: 42 VDC
