Product information "PSU120217 12V PSU 2.0A SPACE 17Ah BATS"

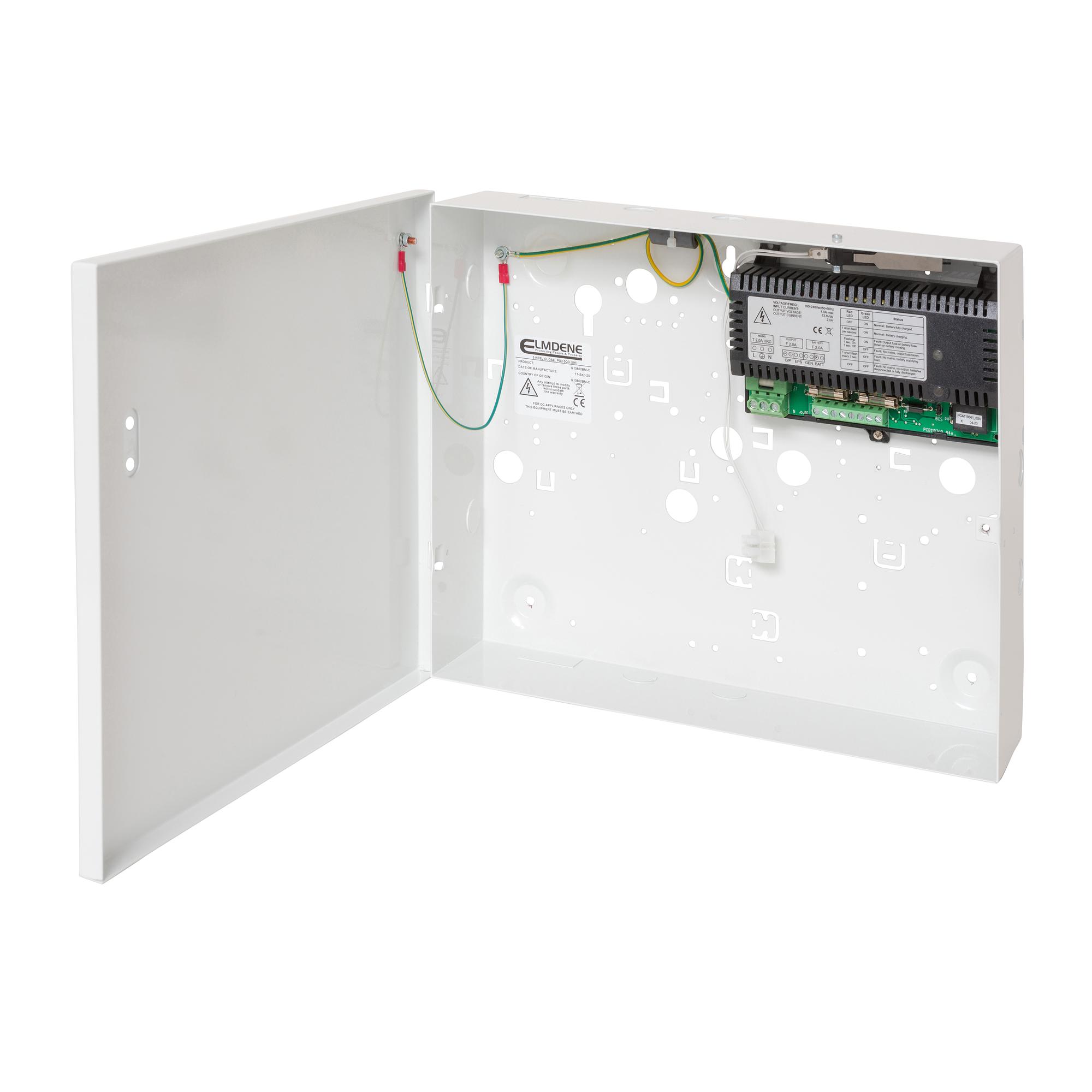

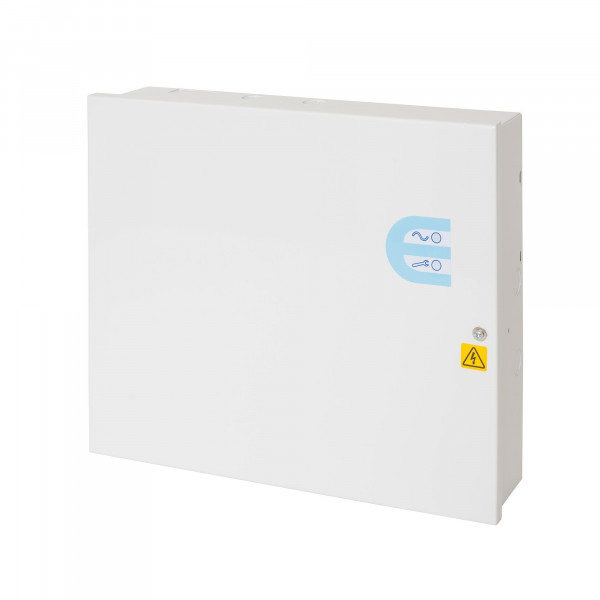

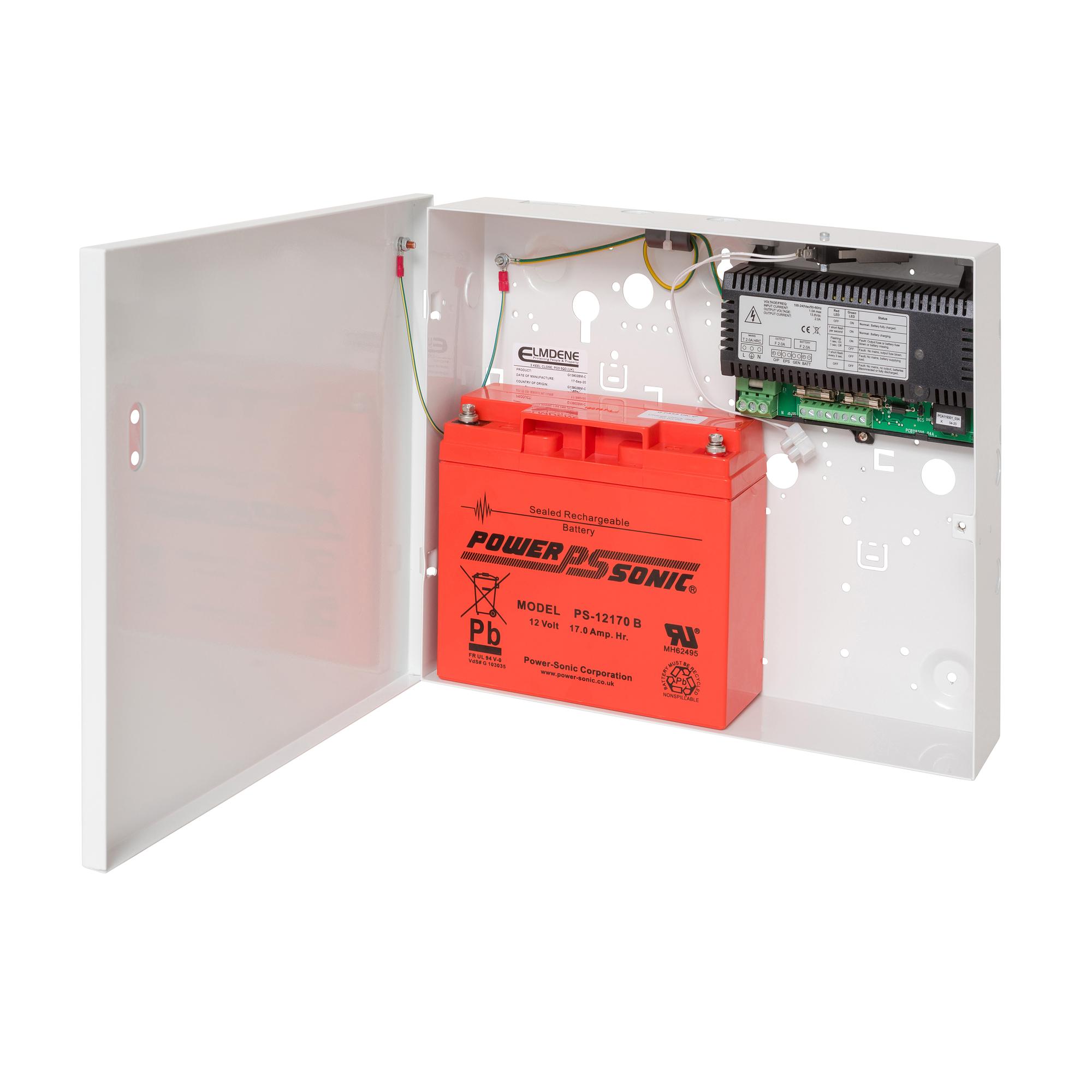

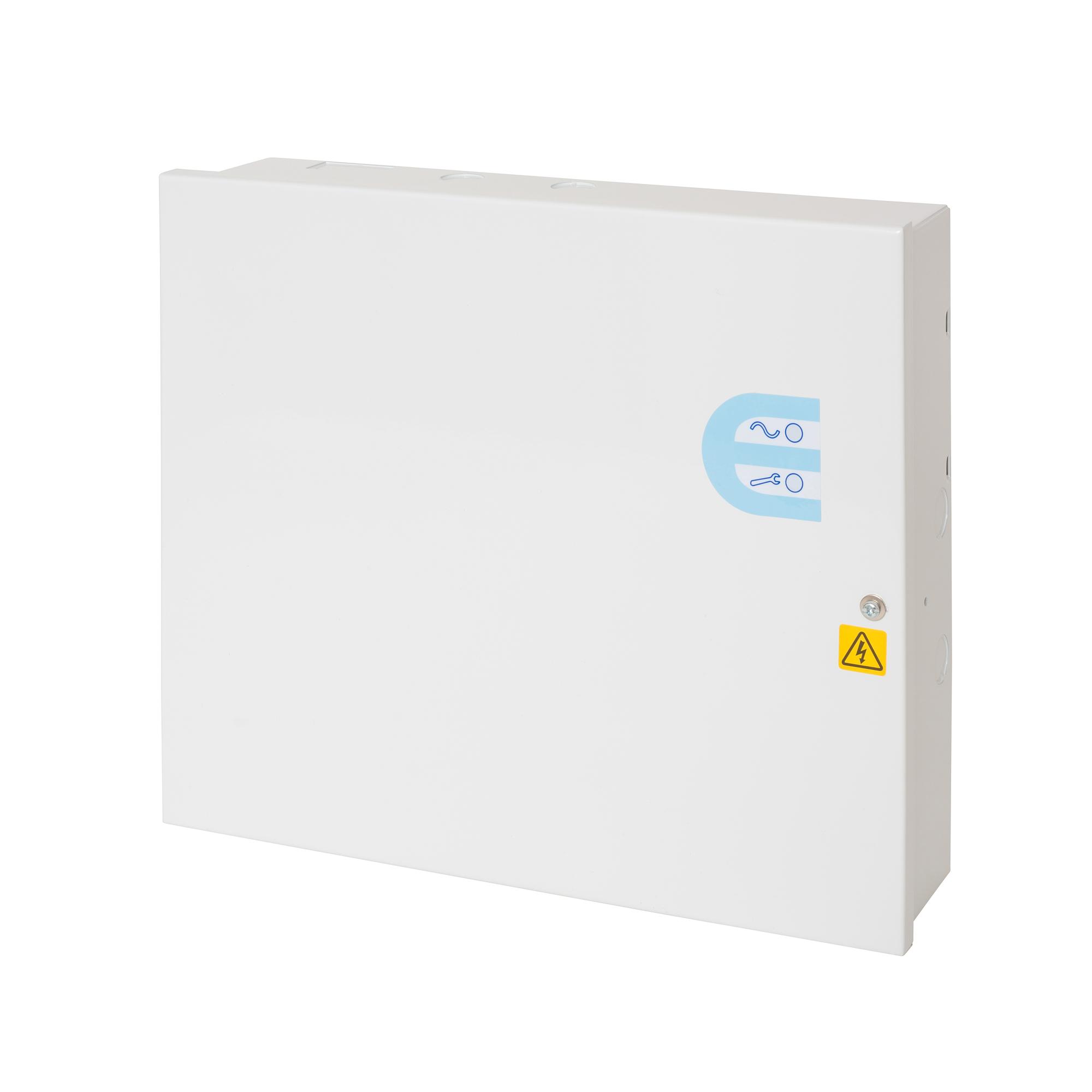

The PSU120217 is a self contained switch mode 12v 2.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, external LED's for fault diagnosis, tamper protection and space for a 17Ah sealed lead acid battery. Housed in a mild steel enclosure with space for various interface cards.
|Weight (without battery):||3.28Kg (Gross) / 3.12Kg (Nett)|
|Operating temperature:||-10°C to +40°C, 95% RH|
|Output voltage:||12v DC|
|Battery:||1 x 12v 17Ah Max Capacity|
|Storage temperature:||-20°C to +80°C|
|Material:||1.2mm mild steel|
|Dimensions (W x H x D):||180 x 335 x 80mm|
- Datasheet (Italian) - Datasheet IT
- Datasheet (English) - Datasheet EN
- Datasheet (Danish) - Datasheet DA
- Datasheet (Spanish) - Datasheet ES
- Datasheet (German) - Datasheet DE
- Datasheet (French) - Datasheet FR
- Datasheet (Swedish) - Datasheet SV
- Installation instructions (English) - Installation sheet EN
- Installation instructions (Swedish) - Installation sheet SV
