SPCK421.100 LCD keypad.2x16 Char,CR
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54543-F102-A100
- EAN/UPC-Code: 4025515470953
Product information "SPCK421.100 LCD keypad.2x16 Char,CR"

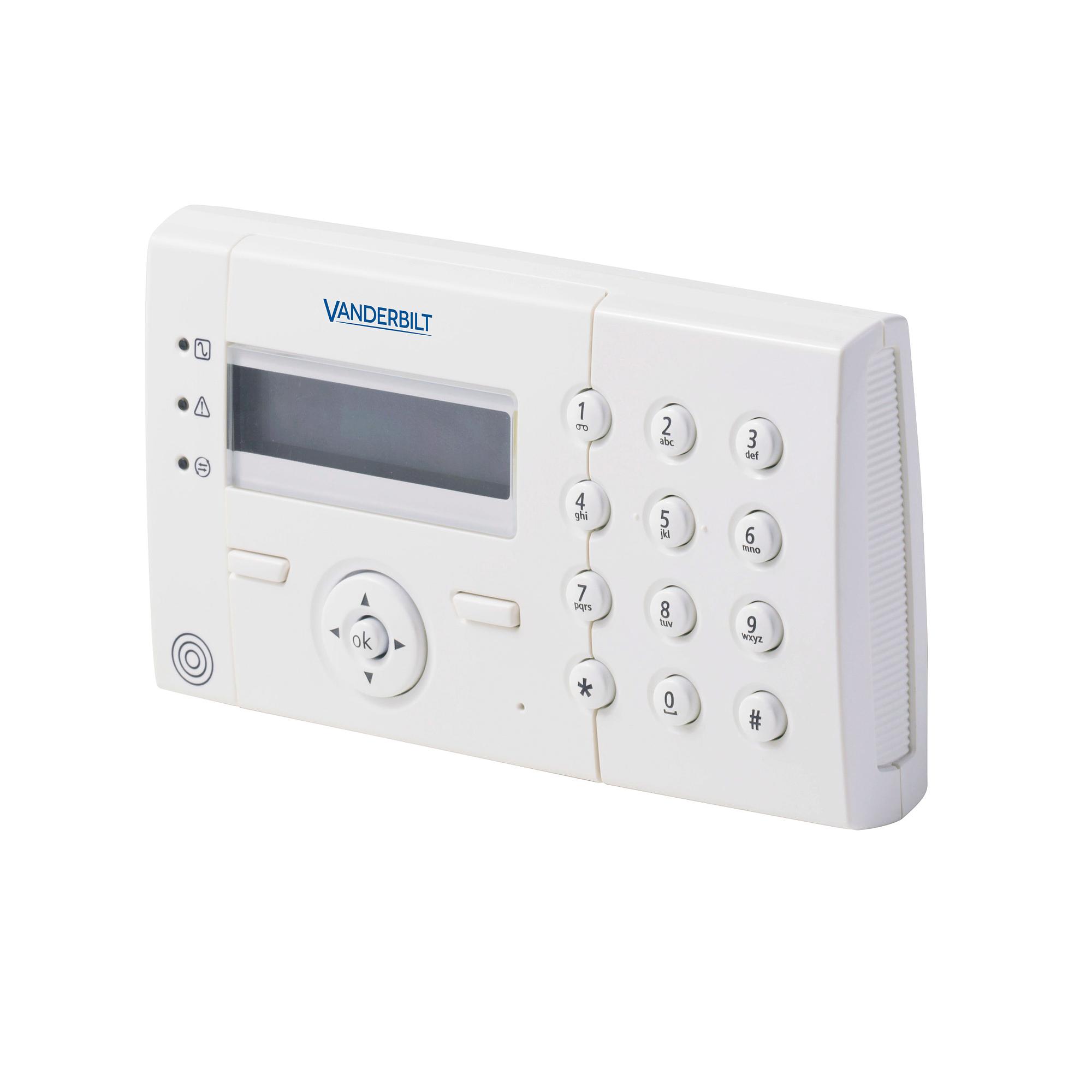

The SPCK421.100 LCD keypad with integrated card reader provides the user with an iconic interface to control the security system.
Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu
system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key
operation and data input directly from the keypad. The card reader enables quick setting / unsetting of areas by use of a proximity
card only or in combination with a valid user PIN.
- Certificate (CE) - Issued by Vanderbilt, on 04/11/2020
- Certificate - Issued by INCERT, on 02/05/2017
- Certificate - Issued by INCERT, on 31/01/2022
- Certificate - Issued by INCERT, on 28/12/2020
- Certificate - Issued by INCERT, on 28/12/2020
- Certificate - Issued by VdS, on 30/11/2019
- Certificate - Issued by VSÖ, on 17/05/2021
- Certificate - Issued by INCERT, on 01/12/2022
Tamper switch: | Front / back spring tamper |
Operating temperature: | -5 ~ +40 °C |
Quiescent current: | Max. 80 mA at 12 VDC |
Operating current: | Max. 110 mA at 12 VDC (backlight, LEDs, sounder, reader operated) |
Housing: | Plastic housing (ABS) |
Weight: | 0.210 kg |
Colour: | RAL 9003 (signal white) |
Mounting: | Flat surface, wall-mounted |
Operating voltage: | 9.5 ~ 14 VDC |
Interfaces: | X-BUS (in, out) |
LED Indicators: | 3 status LEDs |
LCD Display: | 2 x 16 characters |
Dimensions (W x H x D): | 148 x 85 x 33 (mm) |
- Datasheet
- Installation Manual - (Multilingual) - spck420421
- User manual - (German) - spck420421
- User manual - (English) - spck420421
- User manual - (Spanish) - spck420421
- User manual - (French) - spck420421
- User manual - (Italian) - spck420421
- User manual - (Dutch) - spck420421
- User manual - (Swedish) - spck420421
- Product Support Guide - (English) - SPC over fibre
- Product Support Guide - (German) - Ausgang setzen über Bedienteil
- Product Support Guide - (Spanish) - SPC a traves Fibra
