SPC4320.320-K1 w, LCD w. CR, 2 x IB44

Esikatselu: SPC4320.320-K1 w, LCD w. CR, 2 x IB44 Esikatselu: SPC4320.320-K1 w, LCD w. CR, 2 x IB44
SPC4320.320-K1 w, LCD w. CR, 2 x IB44
SPC4320.320-K1 w, LCD w. CR, 2 x IB44

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • Tuotenro: L54541-N110-A100
Kuvaus Tuonti ja vienti Ressourcen Tekniset tiedot Dokumentation Software
Kuvaus
Sulje valikko
Tuotetiedot "SPC4320.320-K1 w, LCD w. CR, 2 x IB44"

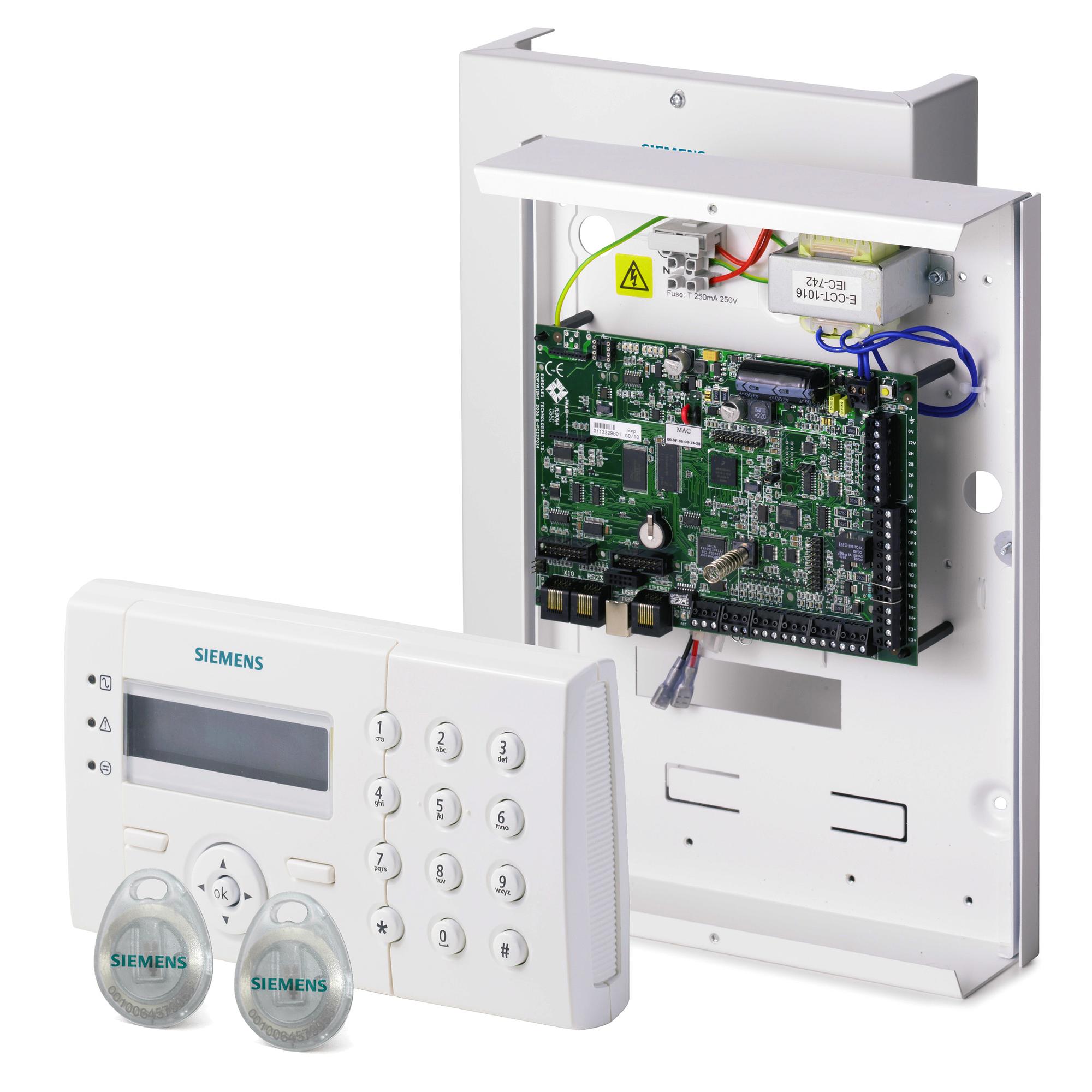

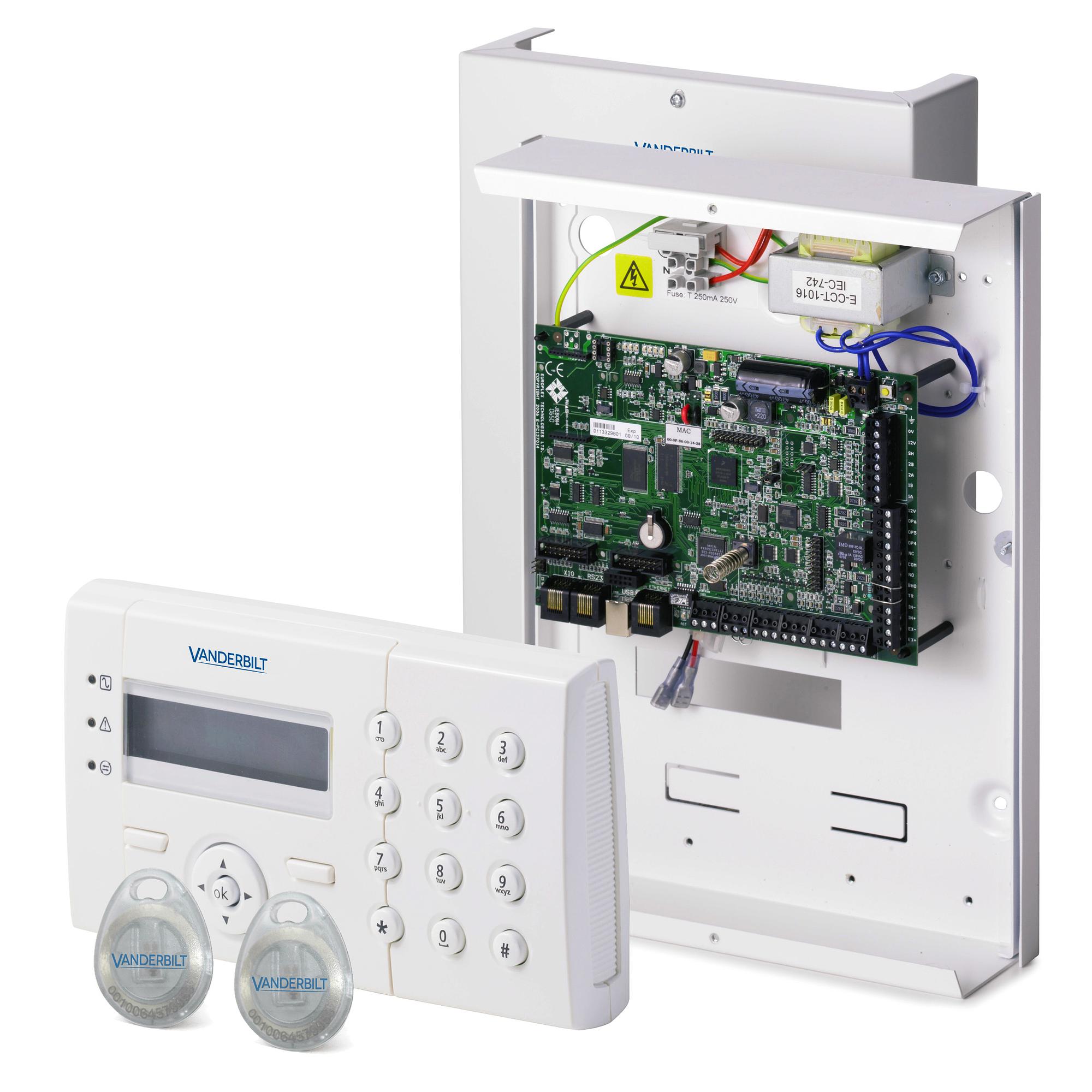

The SPC4320.320 Kit consists of a SPC4320.320 control panel, a SPCK421 keypad & 2 X EM4102 proximity tags. The kit is available for the UK only. The SPC4320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 4 verification zones. The controller provides 1 X-BUS ports (1 stub), 4 areas, 32 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 32 Intrunet wireless detectors (mixed with wired zones) and 1 remote control per user. The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Tuonti ja vienti
Gross weight (KG) 0.1
Osta yksikkö PCE
Mindestabnahme 1
Statistical code 85311030
ECCN EAR99
Country of origin IN
Net weight 0.100
Material code L54541-N110-A100
Ressourcen
Tämä linkki ohjaa sinut lisätietoja-sivuille. Sieltä löydät mm. lisätietoja tuotteiden yhteensopivuuksista ja tuotteiden elinkaarista, tuotevideoita, markkinointimateriaalia, referenssikohteiden esittelyjä, tuotteiden hyväksyntäluokituksia ja paljon muuta lisätietoa.
Tekniset tiedot
Sulje valikko
Housing: Small metal housing (1.2mm mild steel)
Remote controls: Up to 32
Max. number of hardwired zones: 32
Max. number of wireless zones: 32 (take away wired zones)
Door capacity: Max. 4 entry doors or 2 entry/exit doors
Firmware: V3.4
Color: RAL 9003 (signal white)
Event memory: 1000 intrusion events, 1000 access events
Interfaces: 1 X-Bus (1 spur) 1 RS232 1 USB (PC connection) 1 SPC Fast Programmer 1 Ethernet (RJ45)
Operating temperature: 0 ~ +40 °C
Number of on-board relays: 1 strobe (30 VDC / 1A resistive switching circuit)
Output voltage: 13-14 VDC in normal conditions (mains powered & fully charged battery)
Verification: 4 verification zones with max. 4 IP-cameras and 4 audio devices
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max 1 frame per sec.)
Mains voltage: 230 VAC, +10%/ -15%, 50Hz
Quiescent current: Max. 170mA at 12 VDC
Dimensions (W x H x D): 264 x 357 x 81 (mm)
Tamper contact: Front spring tamper, 2 auxiliary tamper contact inputs
Operating current: Max. 190 mA at 12 VDC
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Language: Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.
Number of on-board zones: 8
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Weight: 4.5 kg
