AMK48LSA-W4M Magn.cont.surf.mt.,w.,4m

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • VDE6:9913800013
  • 4025515476818
Tuotetiedot "AMK48LSA-W4M Magn.cont.surf.mt.,w.,4m"

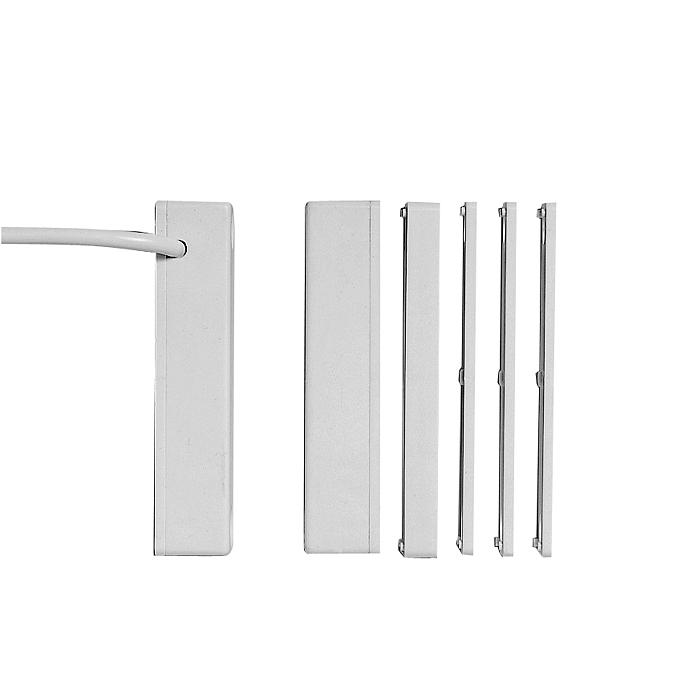

Surface mount magnetic contact suitable for doors and windows surveillance. High fuctional reliability through an integrated carrier board. Glass fiber reinforced PC-GF for industrial use.
Gross weight (KG) 0.115
Osta yksikkö PCE
EAN/UPC-Code: 4025515476818
Mindestabnahme 1
ECCN N
Material code VDE6:9913800013
Country of origin DE
Net weight 0.109
Statistical code 85365080
Housing material: PC-GF
Approval: VdS geprüft, Klasse B, Nr.: G 191564
Contact resistance: 0.15 Ω
Cable length: 4 m
Supply voltage: max. 40 VDC
Colour: White
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Housing protection: IP67
Dimensions housing: 65 x 12 x 13.7 mm
AMK 4 S G3 AMK 4 S G3
N54536-Z241-A100
