CD30 Codoor

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V54521-C101-A100
  • 4025515479215
Tuotetiedot "CD30 Codoor"

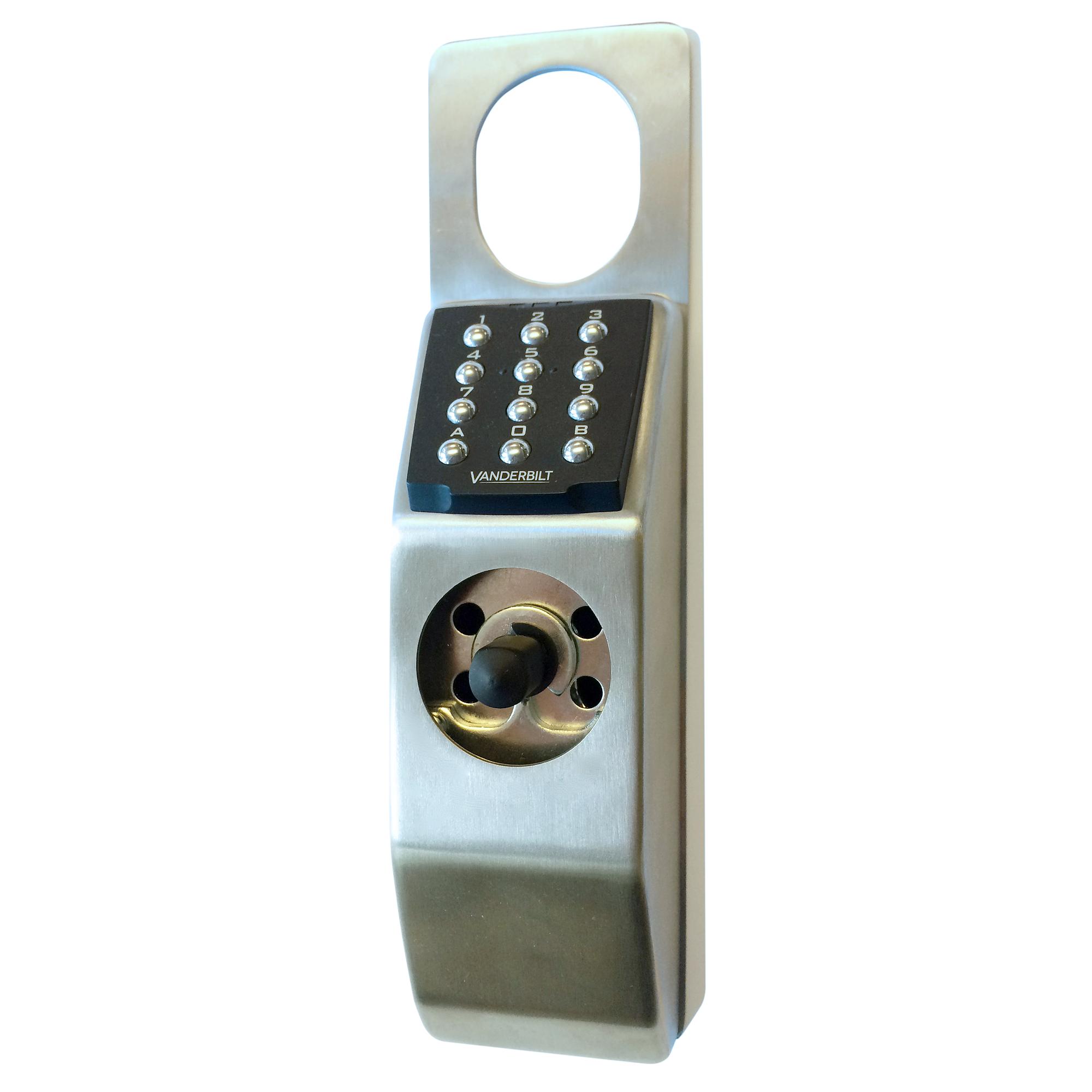

CD30 is a battery-powered codelock that fits directly on an interior door. The programming of codes is carried out directly via the keypad. It is possible to manually change the settings to leave the door unlocked if necessary. The batteries used are standard lithium cells. The CD30 is suitable for lock cases with a distance of between 105mm and 116mm between the center of the door handle and the center of the lock cylinder. It is designed to fit a Scandinavian lock case
Gross weight (KG) 1.034
Osta yksikkö PCE
EAN/UPC-Code: 4025515479215
Mindestabnahme 1
Statistical code 83014019
Material code V54521-C101-A100
ECCN EAR99
Net weight 0.750
Country of origin CN
Weight: 0.76 kg
Dimensions (W x H x D): 64 x 285 x 59 (mm)
Operation temperature: 0°C to +50°C
Housing protection (EN 60529): IP30
Housing material: Rostfri
Colour: Rostfri
Environment: Endast inomhus
Code capacity: Nio olika 4-siffriga koder.
Operational time: Ungefär 1 år
Operating voltage: 9VDC. Två batterier, 9V 6LR61 (Ingår ej).
Housing protection: IP30
Operating temperature: 0 ~ +50 C.
