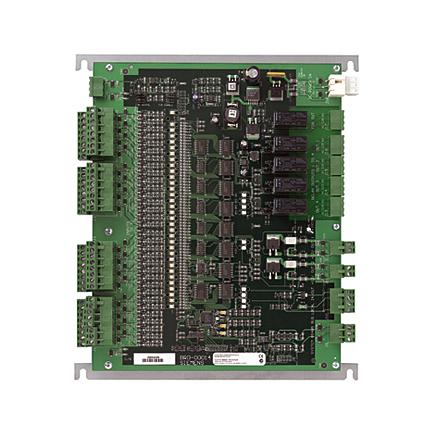

AFI5100 Input Point Module

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • V6FL7820-8CB10
  • 4025515475125
Tuotetiedot "AFI5100 Input Point Module"
The AFI5100 is a programmable input controller used as part of a SiPass integrated system. It provides a local interface between the advanced central controller (AC5100‚ AC5102 or AC5200) and the devices used to monitor a facility‚ such as infrared detectors. When an input device that is connected to an AFI5100 changes status‚ the AFI5100 registers the status change and forwards this data to the controller. After checking the validity of the data‚ the controller sends the message to the SiPass integrated server‚ so the alarm-handling mechanism can respond appropriately.
Gross weight (KG) 1.33
Osta yksikkö PCE
EAN/UPC-Code: 4025515475125
Mindestabnahme 1
Country of origin HU
ECCN EAR99
Material code V6FL7820-8CB10
Net weight 1.140
Statistical code 84733020
Firmware: Flash upgradeable
Operating temperature: 0 ~ +50 °C
Current consumption: 50 W
Interfaces: To controller: RS485
Indicators: Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override
Outputs: 4 x Auxiliary relays (30 VDC‚ 2 A) 1 x Alarm output (open-collector 12VDC‚ 200 mA) 1 x Fire override relay (30 VDC‚ 2 A)
Inputs: 32 x internally supplied (supervised or unsupervised) 1 x Tamper (internally supplied) 1 x Fire override (potential-free or internally supplied)
Power consumption: 50 W
Operating voltage: 12 VDC ±10% or 24 VDC ±10%
Interface: To controller: RS485
Weight: 1.35 kg
Approval: CE‚ UL294‚ C-Tick
Dimensions (W x H x D): 250 x 287 x 30 (mm)
