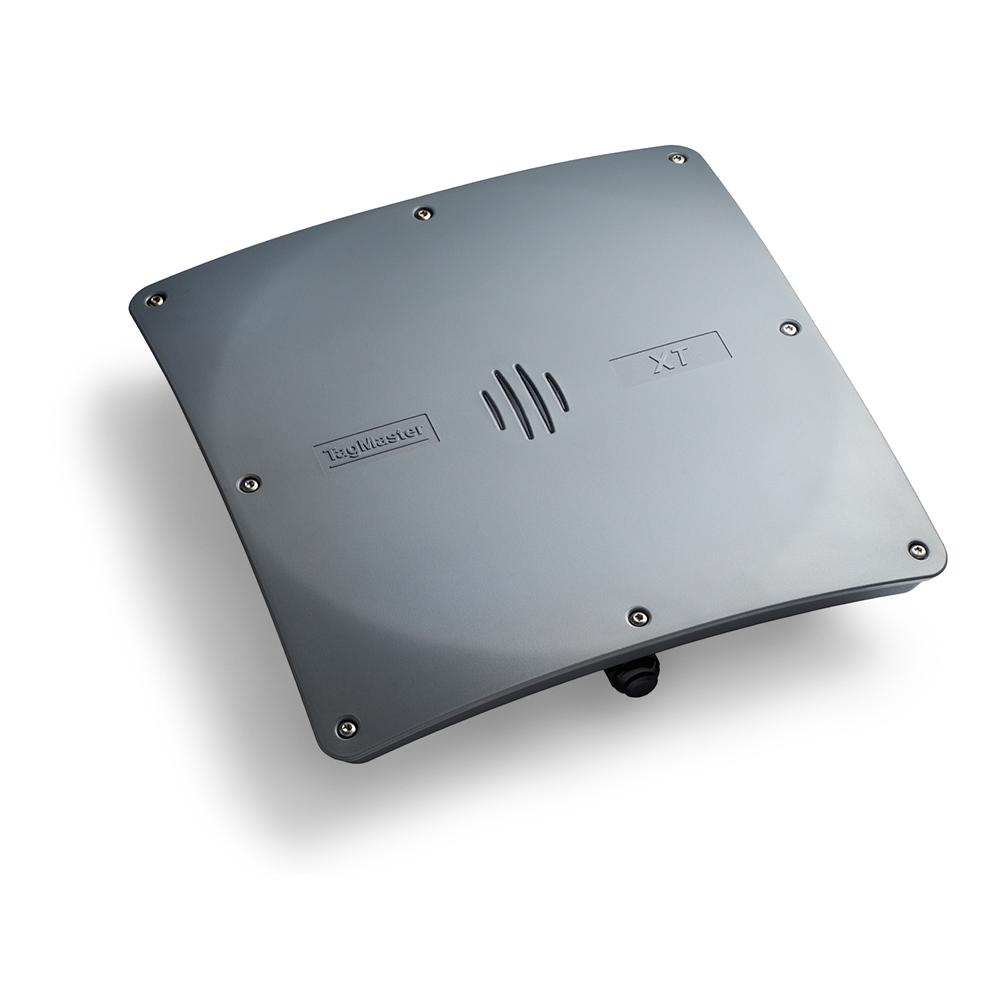

XT-1LR Long Range Reader

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54504-Z106-A100
Tuotetiedot "XT-1LR Long Range Reader"
XT-1 and XT Mini are EPC Gen 2 (ISO 18000-63) compliant RFID readers with integrated antennas. Both readers are tailored for Automatic Vehicle Identification applications such as Parking, Gated Communities and Condominiums. As such, the readers are designed for outdoor use and support a large number of interfaces and protocols. While XT-1 is a generic reader with maximum possible read range, XT Mini is optimized for pole mounting close to the vehicle lane.
Gross weight (KG) 2.765
Osta yksikkö PCE
Mindestabnahme 1
ECCN N
Country of origin SE
Material code N54504-Z106-A100
Net weight 2.600
Statistical code 84719000
Housing protection: IP66
Storage temperature: -40°C ~ +85°C
Housing material: Aluminium, UL94 certified plastic XENOY™ cover
LED Indicators: Red/Green/Yellow
Interface to controller: Wiegand/Clock&Data RS485
Outputs: 3 isolated outputs
Output current: 2W
Inputs: 3 isolated inputs
Operating temperature: -40°C to +60°C
Frequency: 865.6 MHz - 867.6 MHz
Card read distance: Up to 8m
Power consumption: 10W (max 12W)
Weight: 2.3kg
Operating voltage: 12-24VDC
Dimensions (L x W x H): 300 x 300 x 60 (mm)
