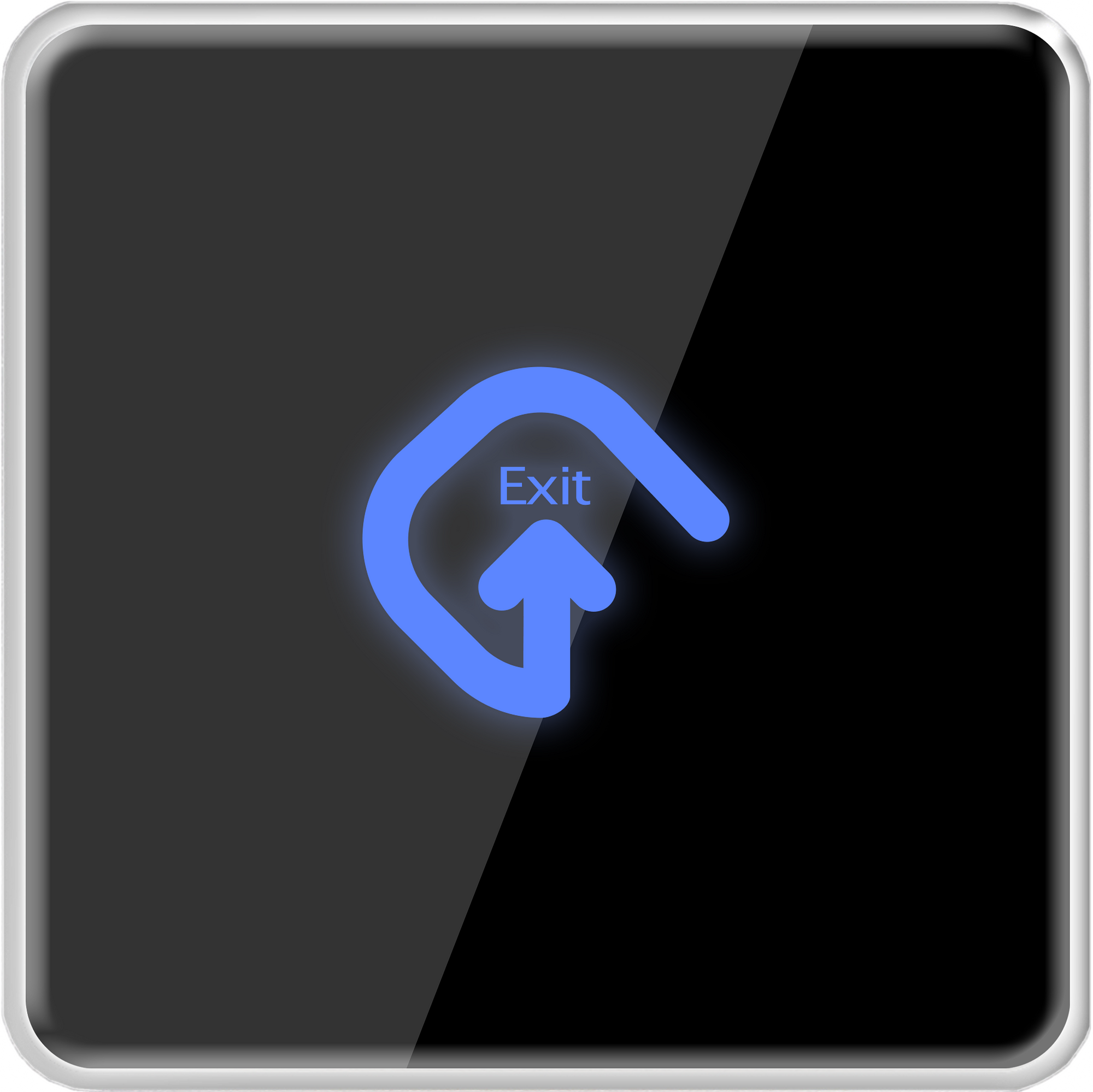

BLUE-EX Contactless Door Exit Button

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54504-Z164-A100
Tuotetiedot "BLUE-EX Contactless Door Exit Button"
The BLUE-EX door exit button facilitates non-contact door release for applications where high standards of hygiene are required. It is designed in the same look and feel as the Bluetooth reader range to round off the family offering.
Gross weight (KG) 0.1
Osta yksikkö PCE
Mindestabnahme 1
Material code N54504-Z164-A100
Statistical code 85439000
Country of origin CN
Net weight 0.050
Opening time: Digital timer to control the relay output timing from 1 to 15 sec.
Power supply: 12VDC to 24VDC
Detection characteristics / range: Capacitance proximity with DIP-switch to adjust trigger distance between 2cm and 5cm (default setting - 5cm).
Mounting: Fit with UK gang box standard
Relay outputs: NC/NO jumper selectable rated @ 30Vdc; 1A
Power consumption: 150mA (max. @ 12VDC)
Air humidity (EN 60721): 10% - 90%
Housing material: PC, ABS
Buzzer: Internal audio indicator
Operating temperature: -20°C to +60°C
Dimensions (L x W x H): 92 x 92 x 8.5 (mm)
