SPCE110.100 Key Switch Expander

Forhåndsvisning: SPCE110.100 Key Switch Expander Forhåndsvisning: SPCE110.100 Key Switch Expander
SPCE110.100 Key Switch Expander
SPCE110.100 Key Switch Expander

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V54542-F104-A100
  • EAN/UPC-Kode: 4025515470830
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation Software
Beskrivelse
Luk menu
Produkt information "SPCE110.100 Key Switch Expander"

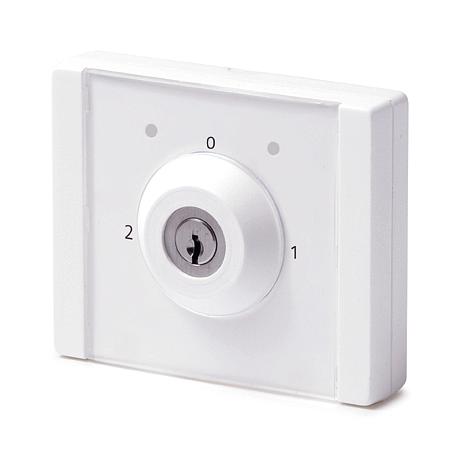

The SPCE110.100 is a universal key switch expander with 2 tri-color LEDs, a 3-position key switch and buzzer. The freely programmable user interface indicates the configured status information with LEDs (e.g. key switch position, area setting states) and enables activation of application specific processes by changing the key switch position (e.g. unlock keypad or indication expander, setting of an area, open or close a gate). The expander also provides one freely programmable volt free relay output with either NO or NC terminal. The key switch is delivered with a standard cylinder and should can be replaced.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.52
Købs Enhed PCE
EAN/UPC-Kode: 4025515470830
mindste bestilling 1
ECCN N
Materialekode V54542-F104-A100
Statistisk kode 85311030
Nettovægt 0.494
Oprindelsesland PH
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Weight: 0.270 kg
Quiescent current: Max. 30 mA at 12 VDC
Operating current: Max. 50 mA at 12 VDC (relay and LEDs operated)
LED Indicators: 2 tri-color LEDs
Number of on-board relays: 1 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Approval: EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
Housing: Plastic housing (Polycarbonate)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 112 x 92 x 38 (mm)
