BLUE-EX Contactless Door Exit Button

Forhåndsvisning: BLUE-EX Contactless Door Exit Button Forhåndsvisning: BLUE-EX Contactless Door Exit Button Forhåndsvisning: BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: N54504-Z164-A100
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation nyttige links
Beskrivelse
Luk menu
Produkt information "BLUE-EX Contactless Door Exit Button"

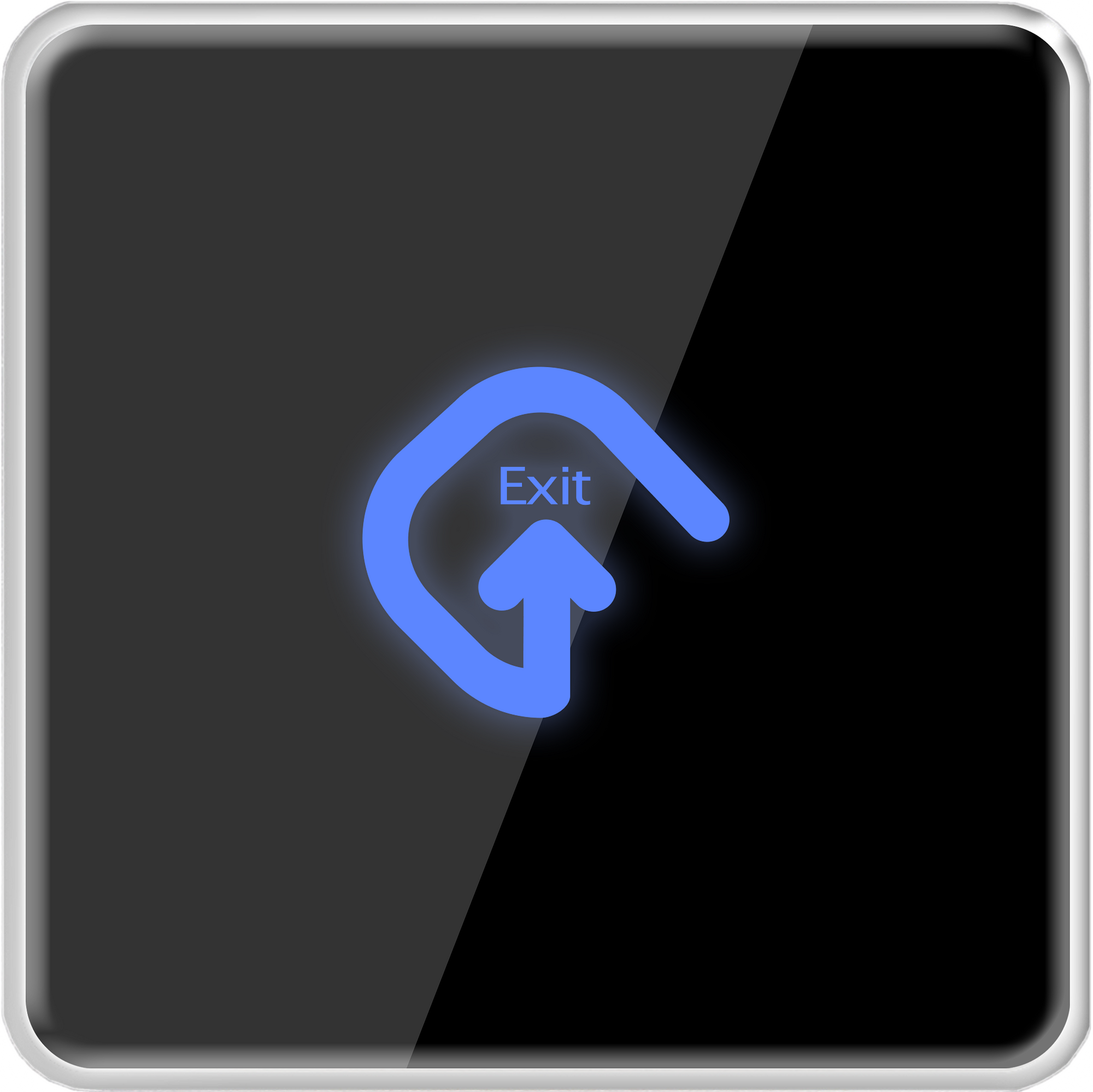

The BLUE-EX door exit button facilitates non-contact door release for applications where high standards of hygiene are required. It is designed in the same look and feel as the Bluetooth reader range to round off the family offering.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.1
Købs Enhed PCE
mindste bestilling 1
ECCN N
Materialekode N54504-Z164-A100
Statistisk kode 85439000
Oprindelsesland CN
Nettovægt 0.050
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Opening time: Digital timer to control the relay output timing from 1 to 15 sec.
Power supply: 12VDC to 24VDC
Detection characteristics / range: Capacitance proximity with DIP-switch to adjust trigger distance between 2cm and 5cm (default setting - 5cm).
Mounting: Fit with UK gang box standard
Relay outputs: NC/NO jumper selectable rated @ 30Vdc; 1A
Power consumption: 150mA (max. @ 12VDC)
Air humidity (EN 60721): 10% - 90%
Housing material: PC, ABS
Buzzer: Internal audio indicator
Operating temperature: -20°C to +60°C
Dimensions (L x W x H): 92 x 92 x 8.5 (mm)
