SPCV440.000 Combi Audio Exp. 4 In/1 Out

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54542-F118-A100
  • 4025515470908
Product information "SPCV440.000 Combi Audio Exp. 4 In/1 Out"

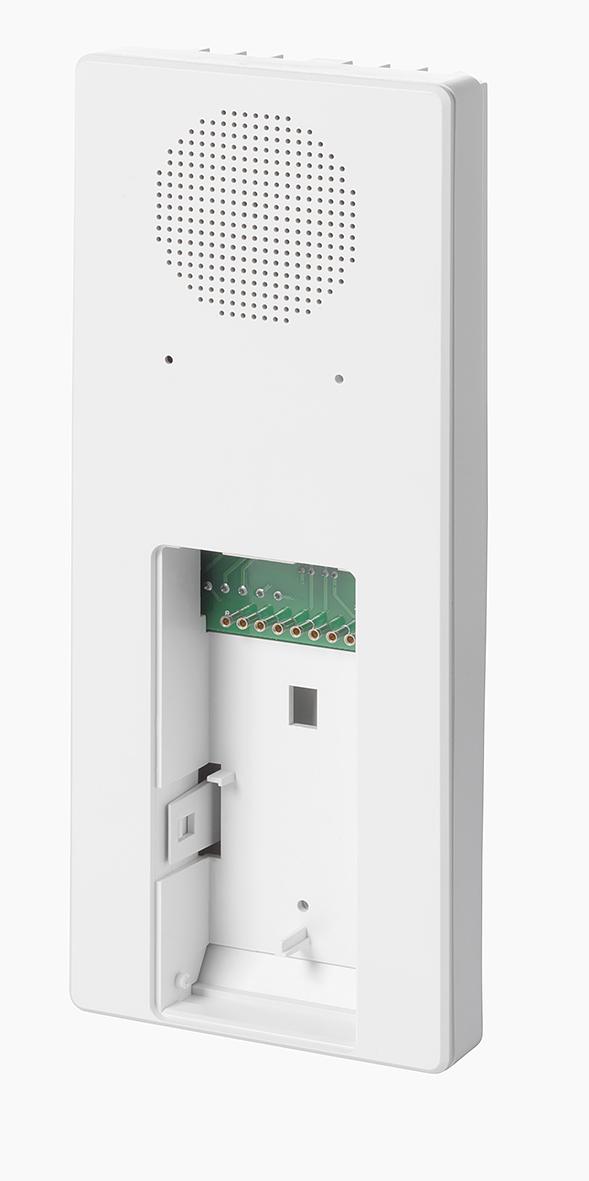

The SPCV440.000 Combi Audio Expander extends the SPC system via X-BUS with an audio verification zone, 4 wired zones and 1 open collector output. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the SPC system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander. In addition any of the MAGIC motion detectors (12m version) seamlessly fit into the prewired device to allow full use of the superb MAGIC motion detector benefits.
Gross weight (KG) 0.5
Purchase unit PCE
EAN/UPC-Code: 4025515470908
Minimum order 1
ECCN N
Material code V54542-F118-A100
Statistical code 85311030
Net weight 0.475
Country of origin RO
Tamper switch: Front / back spring tamper
Weight: 0.580 kg
Quiescent current: Max. 60 mA at 12 VDC (without satellites or motion detector)
Operating current: Max. 75 mA at 12 VDC (without satellites or motion detector)
Number of on-board zones: 4 (the MAGIC motion detector takes away 1 zone)
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 106 × 261 × 42 mm
