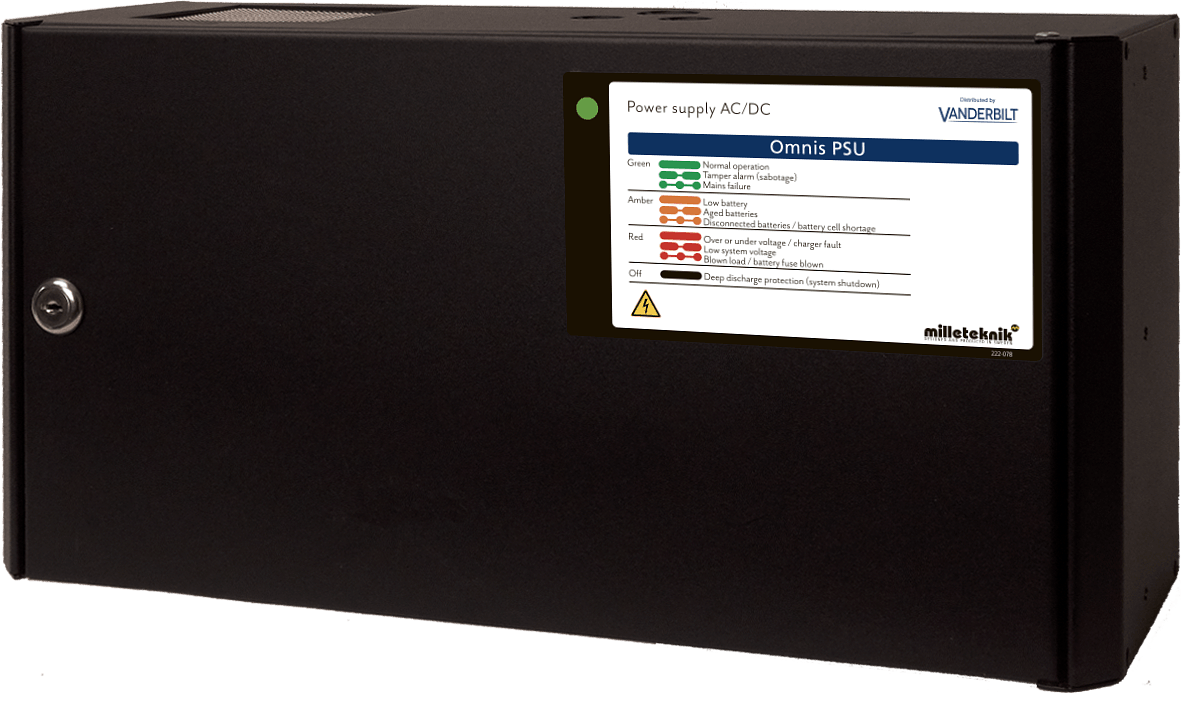

P5S - Omnis PSU 5A Small

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her
  • N54506-Z110-A300
Produktinformasjon "P5S - Omnis PSU 5A Small"
The P5S Omnis PSU is an SSF1014 approved 24V/5A PSU that is monitored in the Omnis system via a RS485 interface. The cabinet can house 2x14Ah batteries.
Bruttovekt (KG) 6.5
Kjøp enhet PCE
Mindestabnahme 1
ECCN N
Materialkode N54506-Z110-A300
Statistisk kode 85044060
Opprinnelsesland SE
Netto vekt 5.500
Power supply: 5A @ 27,3V DC
Power output: 2 Prioritized Outputs
Interface: OSDP over RS485
Number of on-board relays: 0
Additional components: 2 Free Expansion Slots
Battery: 2 x 14Ah
Protection rating: IP32
Mounting: Wall-mount or Rack-mount (5U)
Weight (without battery): 5,5 kg
Mains voltage: 230V AC
Dimensions (W x H x D): 437 x 222 x 145 mm
Operating temperature: +5 to +40 ºC
