RB120S Larmsändare SIA inkl. E1 kabel

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

Produkt-nr.: VGBI:12222
EAN/UPC Strekkode: 4025515475248

Lukk meny

Produktinformasjon "RB120S Larmsändare SIA inkl. E1 kabel"

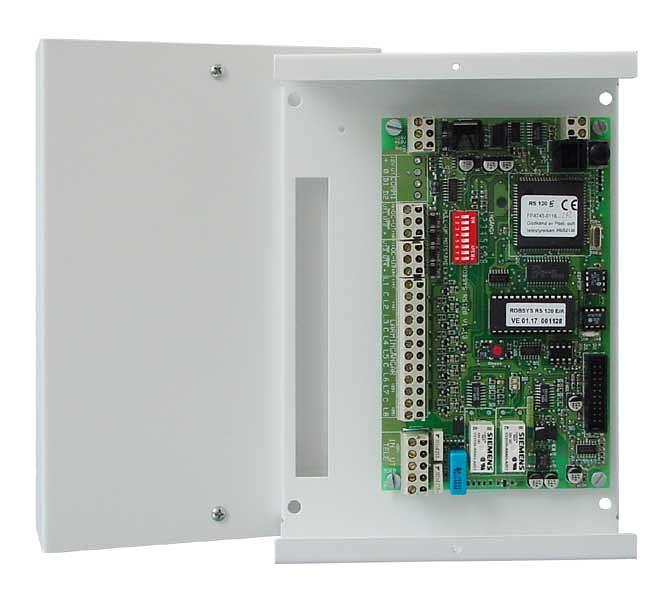

RB120S is used for alarm transmission over the public telephone network. The transmitter can be connected to RBE1 port B with a supplied cable. The dialing settings are set via the 2010 Omnis software. When the RB120S is connected to RBE1 the protocols SIA II, Robofon, LA100, and P100 are available (Note that this requires Bewator 2010 4.1 SP3 or higher). It is also possible to use the alarm transmitters alarm inputs. These can be programmed to send individual alarm notifications with a special configuration program (Prom.exe).

Lukk meny

Certificate (CE) - Issued by Vanderbilt

Bruttovekt (KG)	1.25
Kjøp enhet	PCE
EAN/UPC Strekkode:	4025515475248
Mindestabnahme	1
Statistisk kode	85311030
ECCN	5D992
Materialkode	VGBI:12222
Netto vekt	0.900
Opprinnelsesland	SE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Outputs:	Telelinje med lokal övervakning. 4 st programmerbara,max 100 mA.
Inputs:	Seriell anslutning mot RBE1. 8 st med vardera 5 valfria ingångstyper inklusive sabotage. 15 st med trippelbalanserad ingång. Slutande, brytande, enkel-, dubbel- eller trippelbalanserad. Individuell fördröjning 1–254 sek alt. 1–254 min. RS232 modularkontak
Current consumption:	55 - 75 mA, 12V
Current consumption, quiescent:	30 mA, 12V
Power supply:	9 till 30V DC
Dimensions (W x H x D):	156 x 210 x 71 (mm)
