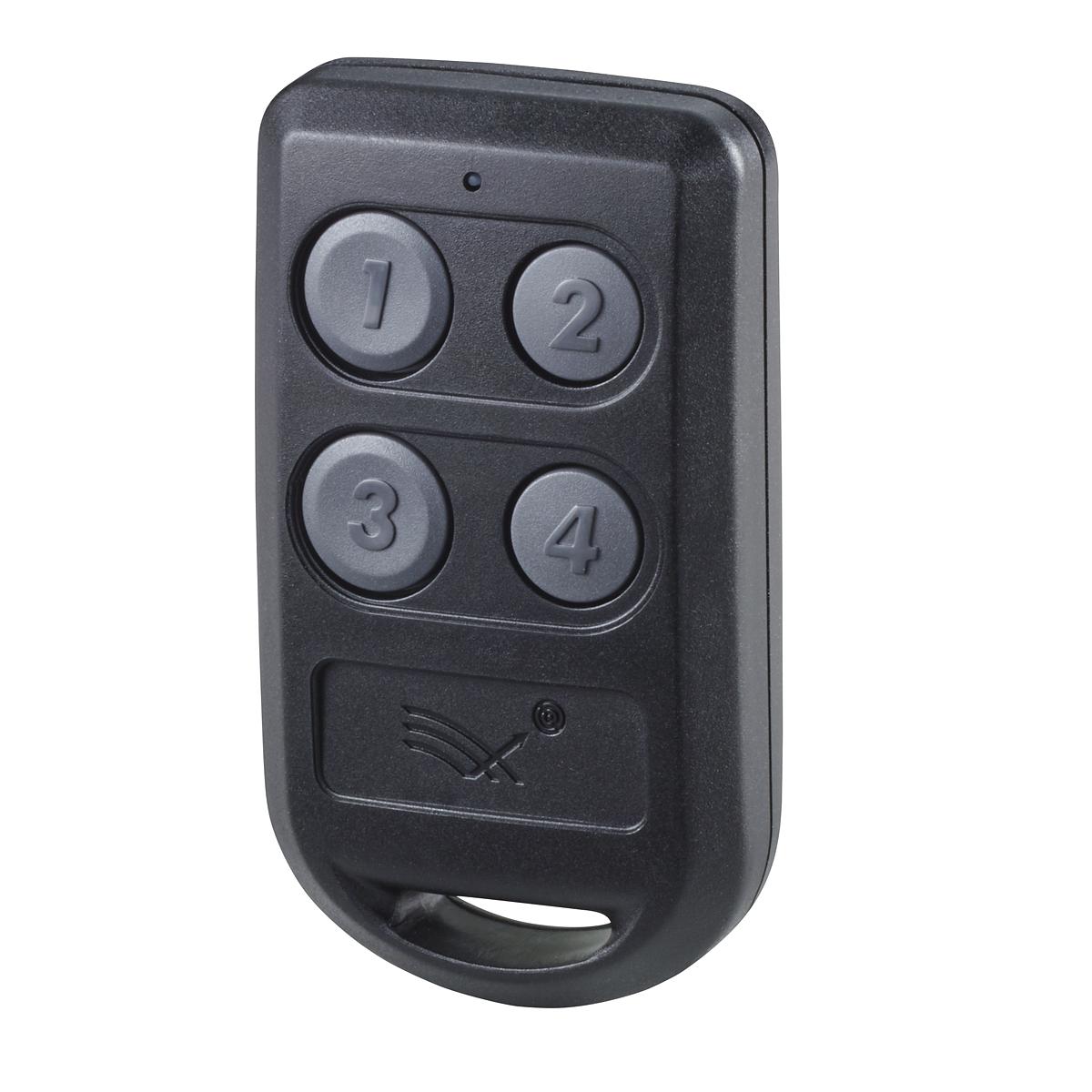

WRT-4+ Long Range Transmitter

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54504-Z124-A100
Tuotetiedot "WRT-4+ Long Range Transmitter"
The WRT-4T is a 4 button Transmitter used with the WRR-44 long range reader. Based upon proven contactless digital ultra high frequency (UHF) technology, the Ranger Receivers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. Additionally, the WRT-4T Transmitters are active devices, powered by the most reliable and common battery, and equipped with a potted proximity or contactless smartcard module. The modules can be ordered to support several proximity reader technologies and allow the Transmitter to be used as a close-range credential.
Gross weight (KG) 0.326
Osta yksikkö PCE
Mindestabnahme 1
Country of origin US
Net weight 0.280
Material code N54504-Z124-A100
Statistical code 84716070
ECCN EAR99
Operating temperature: –40° C to +50°C
Dimensions (L x W x H): 37mm x 64mm x 14mm
Weight: 0.03kg
Battery: Replaceable CR2032, 3.3V
Housing material: Polycarbonate w/ ABS Buttons
Operating temperature range: –40° C to +50°C
Interfaces: Wiegand (26-bit)
Interface: Wiegand (26-bit)
LED Indicators: yes
Housing protection: IP65
