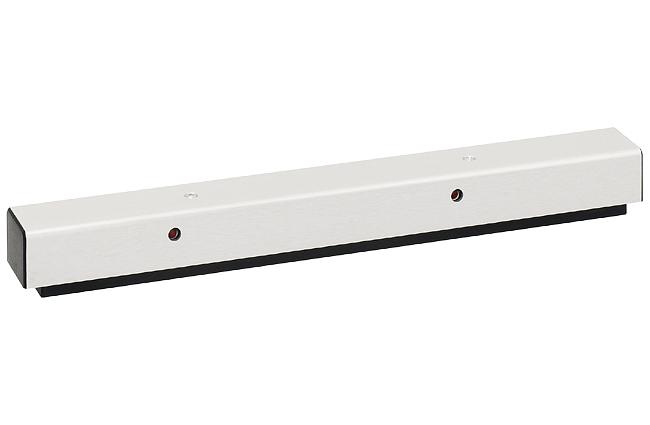

HD-FK300 Foot rail 300mm

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: N54559-F101-A100
EAN/UPC-Kode: 4025515478041

Luk menu

Produkt information "HD-FK300 Foot rail 300mm"

The hold-up floor alarm bar is installed as a hold-up detector, in particular under counters, office desks, shop counters or similar installations. When the alarm bar is triggered, one of the two microcontacts is activated and the detector group is interrupted and an alarm triggered. Triggering is displayed permanently via two mechanical individual displays. This display can only be reset manually by piercing the relevant indicator and renewing after resetting. In this manner, it is possible to exactly identify the detector that has triggered the alarm. With each rail there are additional ten indicators delivered for replacing the pierced ones.

Luk menu

Bruttovægt (KG)	0.318
Købs Enhed	PCE
EAN/UPC-Kode:	4025515478041
mindste bestilling	1
ECCN	N
Nettovægt	0.314
Materialekode	N54559-F101-A100
Statistisk kode	85311030
Oprindelsesland	DE

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Switching voltage:	42 VDC
Switching current:	max 0.1 A
Housing material:	Aluminium, anodized
Approval:	VdS Klasse C, Nr. G 186030 VSÖ Klasse WS, Nr. W 130603/68 E
Weight:	0.300 kg
Dimensions (L x W x H):	300 x 30 x 36 (mm)
