PR500-EM Prox 125kHz Mullion Reader

PR500-EM Prox 125kHz Mullion Reader
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • Varenummer: V24246-F3913-A1
  • EAN/UPC-Kode: 4025515473527
Beskrivelse Certificates Import og eksport Ressourcer Teknisk data Dokumentation
Beskrivelse
Luk menu
Produkt information "PR500-EM Prox 125kHz Mullion Reader"

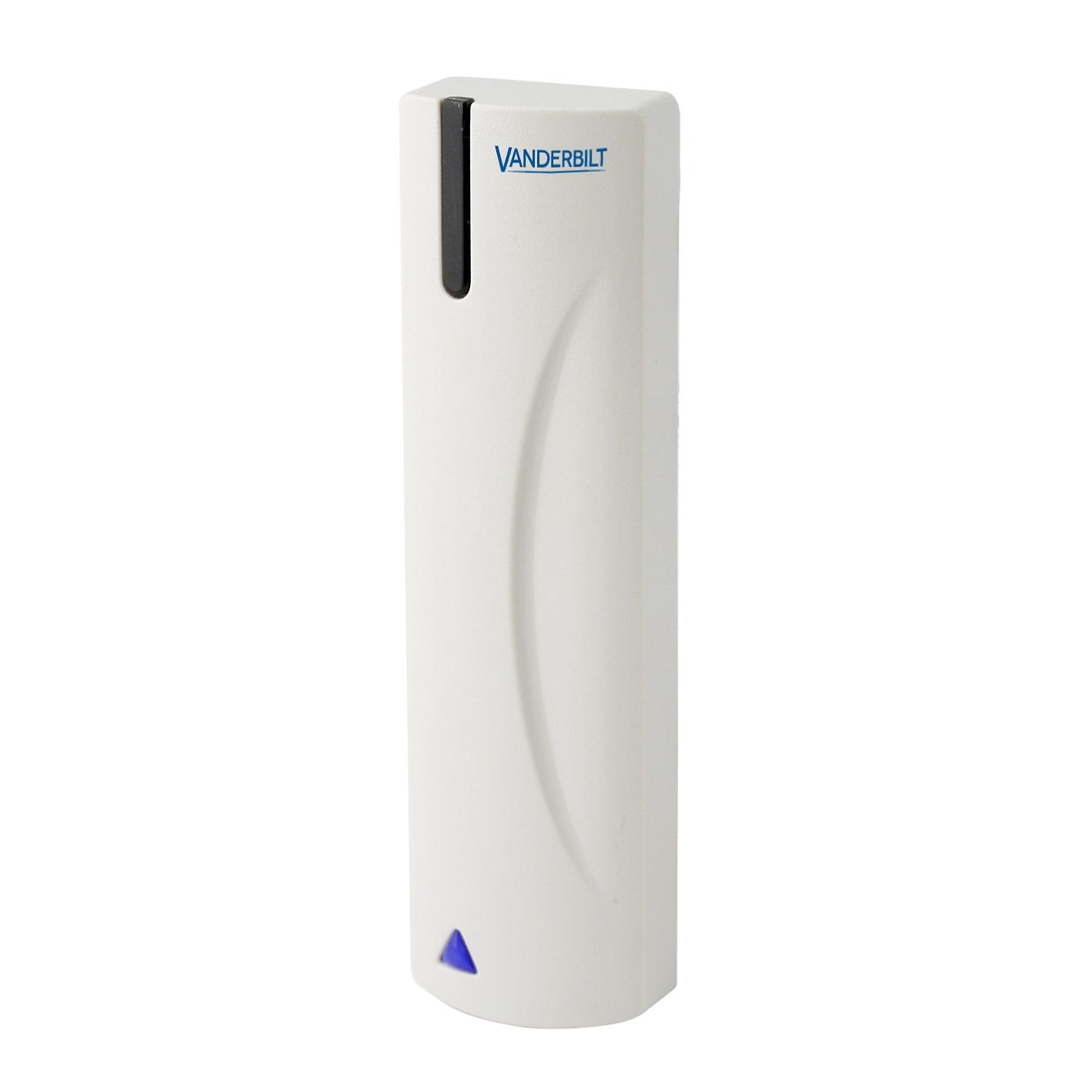

The PR500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has slim and compact design and blends in well in many environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Luk menu
Import og eksport
Bruttovægt (KG) 0.11
Købs Enhed PCE
EAN/UPC-Kode: 4025515473527
mindste bestilling 1
Statistisk kode 84719000
ECCN EAR99
Oprindelsesland PH
Nettovægt 0.110
Materialekode V24246-F3913-A1
Ressourcer
Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.
Teknisk data
Luk menu
Housing protection (EN 60529): IP55
Environment: Indoor or outdoor use
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Tamper protection: No
Card read distance: Up to 10 cm
Current consumption: 22 mA @ 12V DC 25 mA @ 24V DC
Keypad: No
Weight: 0.11 kg
Housing material: ABS base with clip on ABS front cover
Housing: ABS base with clip on ABS front cover
Operation temperature: -30°C ~ +50°C
Operating temperature: -30 ~ +50 °C
Dimensions (W x H x D): 40 x 140 x 18.5 (mm)
Tamper switch: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing protection: IP55
Colour: White
Operating voltage: 10.6 ~ 32 VDC
