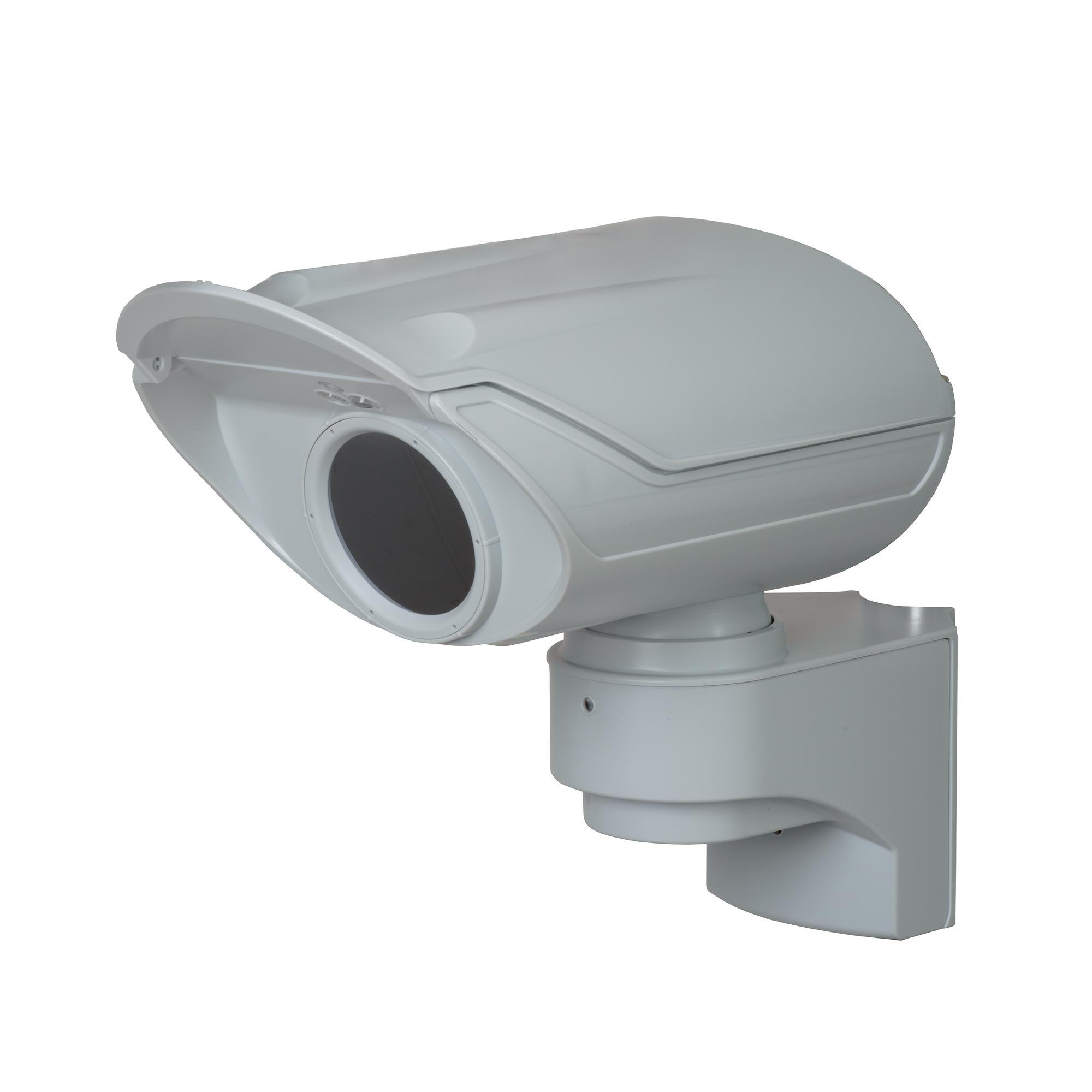

PRO-E-100H Ext long rng curtain/heater

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: V54533-Z116-A100
EAN/UPC-Kode: 4025515476894

Luk menu

Produkt information "PRO-E-100H Ext long rng curtain/heater"

The PRO-E-100H is suitable for outdoor applications requiring a medium range curtain view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional settings. Heater for harsh environments.

Luk menu

Certificate (CE) - Issued by Vanderbilt, on 24/10/2018

Bruttovægt (KG)	1.975
Købs Enhed	PCE
EAN/UPC-Kode:	4025515476894
mindste bestilling	1
Statistisk kode	85319000
Materialekode	V54533-Z116-A100
ECCN	EAR99
Nettovægt	1.650
Oprindelsesland	CN

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Cable entry:	diameter 2 x 4-7 (mm)
Switching voltage:	10.5 - 30 VDC, 24VAC+/- 15% auto-sensing
Alarm output:	Programmable 1 x fault = power supply, temperature, heating, anti-mask, watchdog. Programmable 1 x tamper = housing cover, alignment, cable management cover, removal Programmable 2 x 360Protect = anti-mask, zone, or other events
Detection characteristics / range:	150m x 3.3m (Lx W) -1m and up to +8m near surrounding area
Housing material:	Luran® S (ASA)
Sensitivity:	Default 40%, 75% , 100% (standard sensitivity)
Mounting:	Wall and pole mounting, cable management bracket included
Weight:	0.98Kg
Sensitivity adjustment:	20% - 140% (% of standard)
Housing protection:	IP65
Dimensions (L x W x H):	358 x 188 x 290 (mm)
