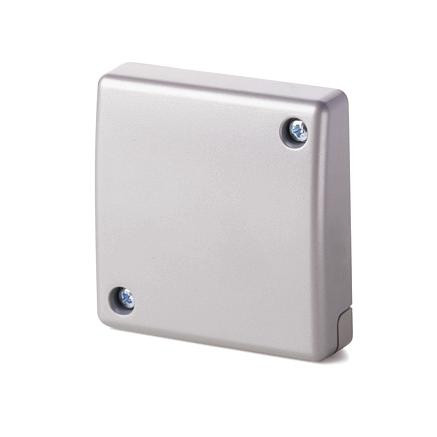

GM775LSNi Seismic detector
Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
- Varenummer: V54534-F114-A100
- EAN/UPC-Kode: 4025515469711
Produkt information "GM775LSNi Seismic detector"
The GM775LSNi seismic detector is compatible with both types of local security network LSNi & LSN and has a loop connection to the
control panel. The detector reliably detects attempted break-ins to safes, ATMs, night deposits, lightweight safes, strong rooms
and modular steel or concrete vaults. Intelligent signal processing enables detection sensitivity to be set individually and
therefore reliably ensures no false alarms. The anti-tamper system for the cover and on the back of the GM775LSNi will detect the
opening or the forcible removal of the detector.
Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our
products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high
concentration of valuable assets or dangerous goods.
All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and
amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that
environmental disturbances are ignored, and false alarms eliminated.
- Certificate - (German) - gm775lsni
- Certificate (CE) - Issued by Vanderbilt, on 16/09/2017
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 26/05/2019
- Certificate (CE) - Issued by Vanderbilt, on 01/07/2022
- Certificate - Issued by VdS, on 26/05/2023
Dimensions (W x H x D): | 89 x 89 x 22 mm |
DIP switch settings: | Modes selectable via LSNi/LSN control panels: - 8 fixed modes - 1 freely programmable user mode |
Current consumption: | 2.5 mA ~ 3.5 mA (5 mA on alarm) |
Approval: | VdS Class C, VSÖ, BSI |
Power supply: | max. 33 VDC |
Weight: | 0.285 kg |
Operating temperature: | -40°C to +70°C |
Housing protection (EN 60529): | IP43 |
- Datasheet - (Swedish) - gm775lsni
- Datasheet - (Dutch) - GM775LSNi
- Datasheet - (German) - GM775LSNi
- Datasheet - (Spanish) - GM775LSNi
- Datasheet - (French) - GM775LSNi
- Datasheet - (Italian) - GM775LSNi
- Installation Manual - (Multilingual) - gm775lsni
- Product Support Guide - (English) - Seismic Detectors Application Guide
- Product Support Guide - (English) - Vanderbilt Seismic Support guide
- Application Note - (English) - GM730 an SPC VDS
- Application Note - (English) - GM775 an SPC VDS
