SPC4320.320-K2 Comp. keypad,CR, 2xIB44

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

temporarily out of stock, please check availability with your local Customer Service team.

  • V54541-S103-A100
Product information "SPC4320.320-K2 Comp. keypad,CR, 2xIB44"

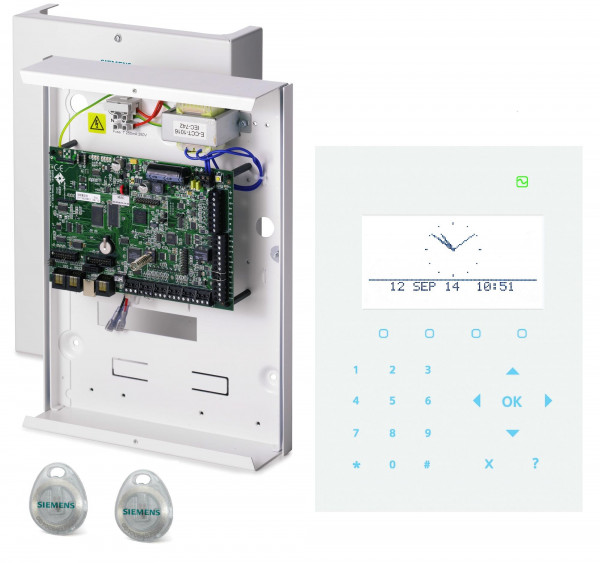

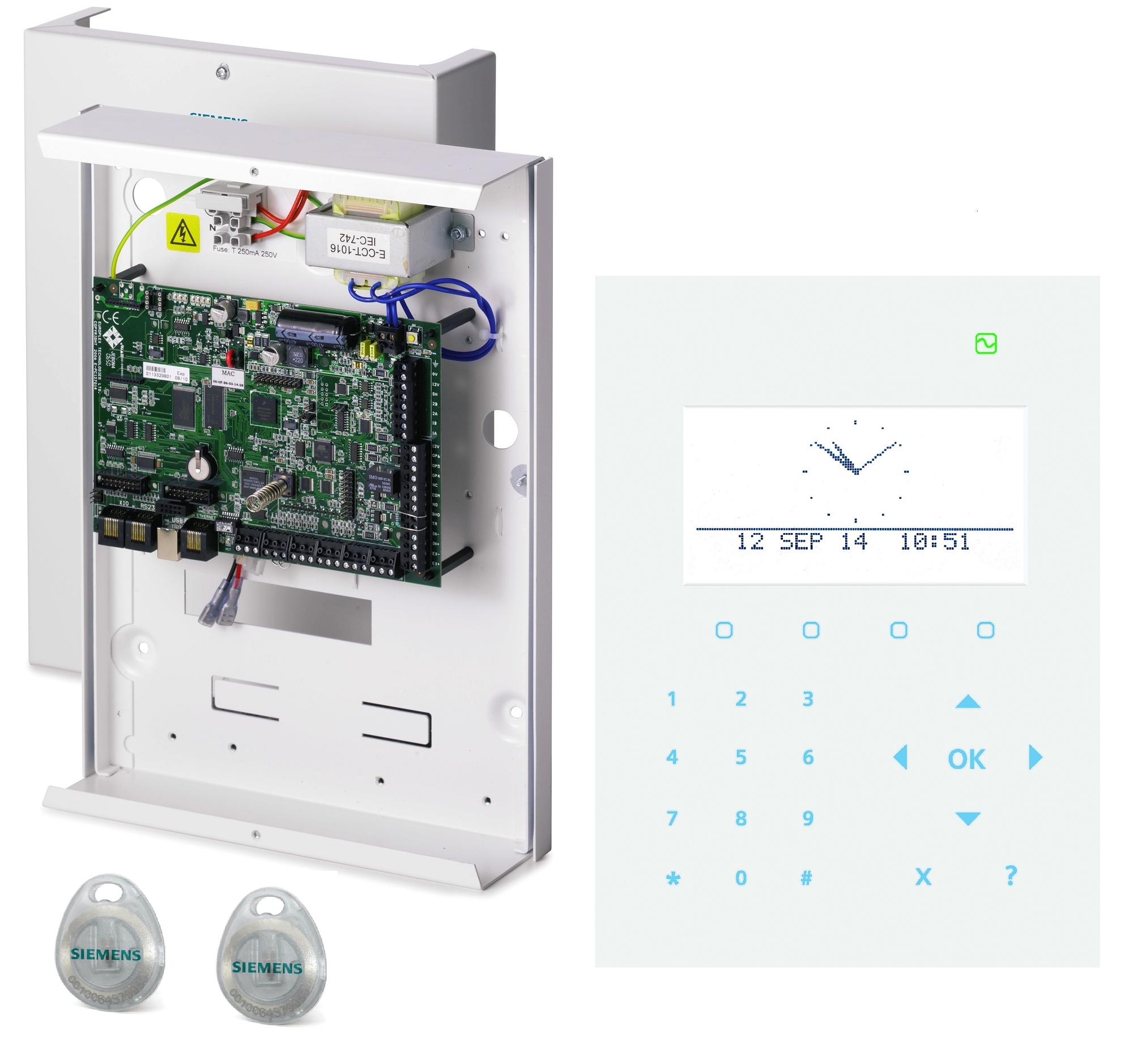

The SPC4320.320 Kit consists of a SPC4320.320 control panel, a SPCK521.100-N keypad & 2 X EM4102 proximity tags. The kit is available for the UK only. The SPC4320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 4 verification zones. The controller provides 1 X-BUS ports (1 stub), 4 areas, 32 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 32 Intrunet wireless detectors (mixed with wired zones) and 1 remote control per user. The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Gross weight (KG) 0.1
Purchase unit PCE
Minimum order 1
ECCN N
Material code V54541-S103-A100
Statistical code 85311030
Country of origin PH
Net weight 0.100
Interfaces: 1 X-Bus (1 spur) 1 RS232 1 USB (PC connection) 1 SPC Fast Programmer 1 Ethernet (RJ45)
Max. number of hardwired zones: 32
Door capacity: Max. 4 entry doors or 2 entry/exit doors
Firmware: V3.4
Color: RAL 9003 (signal white)
Event memory: 1000 intrusion events, 1000 access events
Housing: Small metal housing (1.2mm mild steel)
Number of on-board relays: 1 strobe (30 VDC / 1A resistive switching circuit)
Weight: 4.500 kg
Operating temperature: 0 ~ +40 degC
Output voltage: 13-14 VDC in normal conditions (mains powered & fully charged battery)
Users: 100
Verification: 4 verification zones with max. 4 IP-cameras and 4 audio devices
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max 1 frame per sec.)
Remote controls: Up to 32
Operating current: Max. 190 mA at 12 VDC
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Language: Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.
Number of on-board zones: 8
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Dimensions (W x H x D): 264 x 357 x 81mm
