PDM-I18T(50) PIR AM detector (50pcs)

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

Produkt-nr.: L54543-F107-A100

Lukk meny

Produktinformasjon "PDM-I18T(50) PIR AM detector (50pcs)"

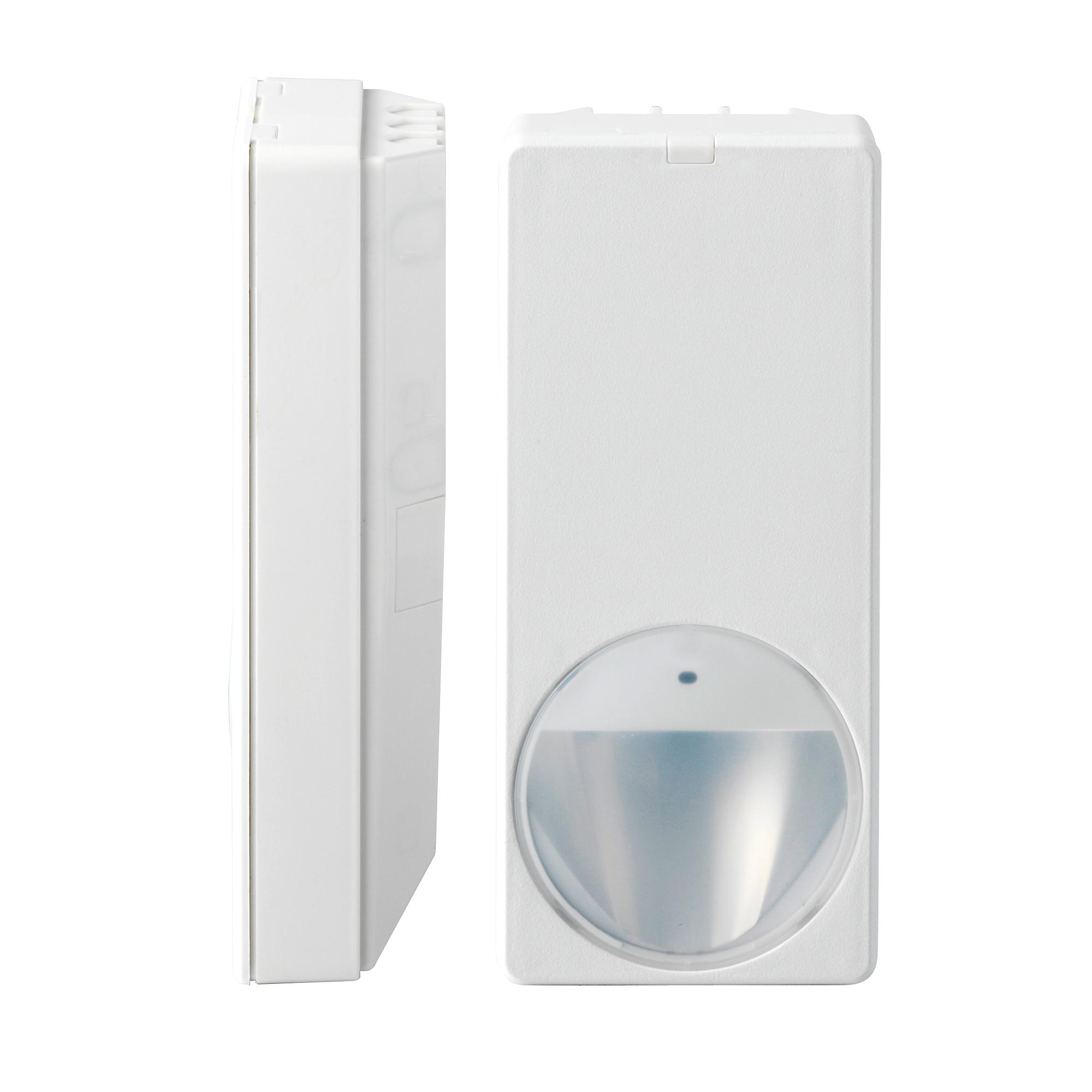

Product information "PDM-I18T PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).

Bruttovekt (KG)	0.1
Kjøp enhet
Mindestabnahme	1
Statistisk kode	85311030
ECCN	EAR99
Opprinnelsesland	RO
Netto vekt	0.100
Materialkode	L54543-F107-A100

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Optical system:	MAGIC mirror
Colour:	RAL9003
EOL resistor:	RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Outputs:	30VDC / 100mA, NC
Sensitivity evaluation mode:	4 settings
Supply voltage:	9 ~ 16VDC (12V nom.)
Walking speed:	0.1 ~ 4m/s
Air humidity (EN 60721):	< 85% RH, non-condensing
Approval:	EN50131-2-2 Grade 3 VdS Class C
Current consumption:	3.9mA (rms) 6.6mA (max. peak)
Detection characteristics / range:	Volumetric / 18m
Operating temperature:	-10 ~ +55°C
Pet immunity:	no
Weight:	0.115kg
Dimensions (W x H x D):	64 x 147 x 35 (mm)
Set/unset input:	LOW ≤ 1.5V / HIGH ≥ 3.5V
Walk test input:	LOW ≤ 1.5V / HIGH ≥ 3.5V
Housing protection:	IP41 / IK02
Storage temperature:	-20° ~ +60°C
